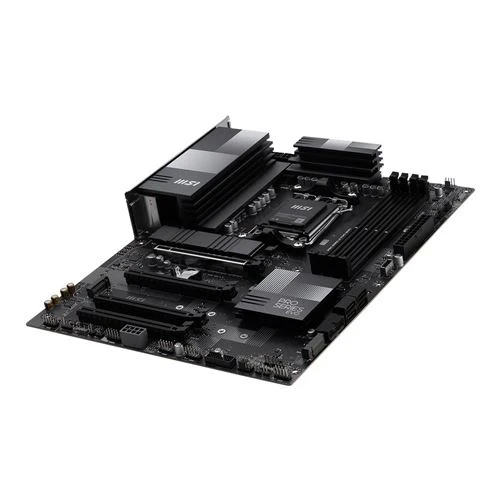

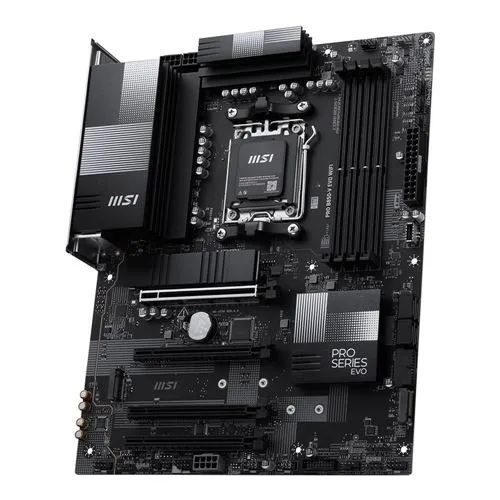

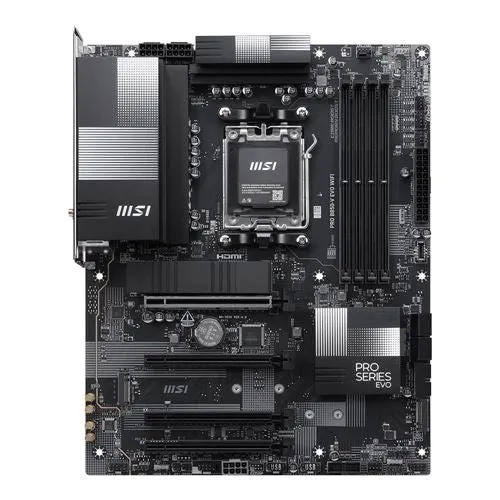

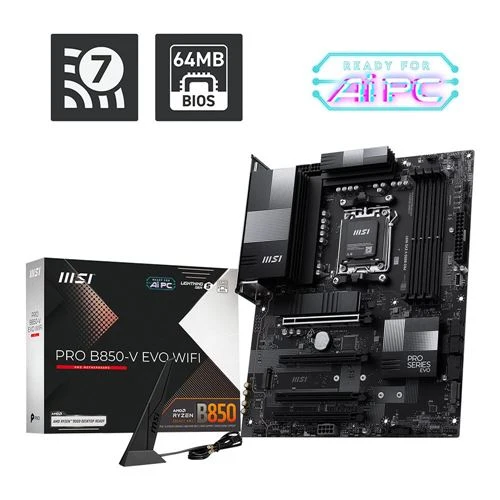

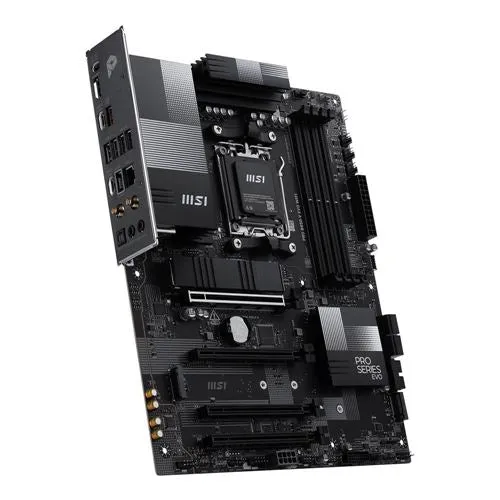

Tarjeta Madre MSI PRO B850-V EVO WIFI AMD AM5 B850 ATX

Sobre este producto

• 🔌 Socket AM5: compatible con procesadores AMD Ryzen sobre chipset AMD B850, lista para la serie Ryzen 9000.
• 🧠 Memoria DDR5: 4 slots DIMM, doble canal, hasta 256GB y velocidades hasta 8200 MHz (OC).
• ⚡ PCIe 5.0: ranura PCI Express 5.0 x16 para la máxima banda ancha en GPU de nueva generación.
• 💾 M.2 PCIe 5.0: hasta 3 sockets M.2 M Key con EZ M.2 Shield Frozr II, más 4 SATA 6Gb/s y RAID 0/1.
• 📶 WiFi 7 + BT 5.4: conectividad 802.11be con EZ Antenna y LAN 5G Realtek 8126VB hasta 5000Mbps.
• 🎛️ Diseño negro: estética sobria monocromática con Supplemental PCIe Power para builds exigentes.

Característica	Detalles
Tipo de producto	Tarjetas Madre
Marca	MSI
Modelo	PROB850VEVOWIFI
UPC	824142455326
Packaging	Retail
Chipset	AMD B850
AMD CPU Support	Ryzen
Socket	AM5
ECC	Non-ECC; Non-Registered
Tipo de memoria	DDR5-4800 | DDR5-5200 | DDR5-5400 | DDR5-5600 | DDR5-4400 | DDR5-5000 | DDR5-5800
Memory Speeds Supported	8200 - 5600 MHz (OC)
Memory Slots	4 x 288pin DIMM
Memory Channel Support	Dual Channel
Max Memory Supported	256GB
Maximum Memory Supported Per Slot	64GB
Onboard Graphic Chipset	Requires CPU with Integrated Graphics
M.2 Port Type	2260 | 2280 | 22110
SATA Express	1 x M.2 Socket 3 | E Key | 3 x M.2 Socket 3 | M Key
SATA 6Gb/s	4
RAID Support	RAID 0 | RAID 1
Audio Chipset	Realtek ALC897
Audio Channels	7.1
WiFi Support	M.2 Slot
LAN Chipset	Realtek 8126VB
LAN Speed	100/1000/2500/5000Mbps
Wireless Technology	802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.4 | WiFi 7 (802.11be)
PCI Express 4.0 x16	1
PCI Express 5.0 x16	1
PCI Express 3.0 x16	2

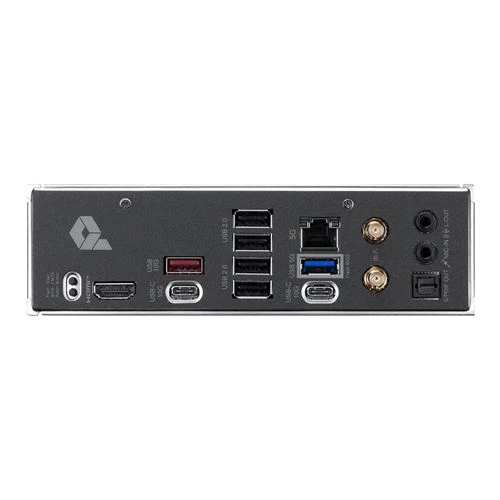

LAN Ports	1 x 100/1000/2500/5000 RJ-45 LAN
Audio Ports	1 x 3.5 mm Microphone | 1 x 3.5 mm Line-Out
Buttons	Flash BIOS | Clear CMOS
Specialty Ports	2 x WiFi Antenna Ports
USB 2.0	4 x USB 2.0 (Type-A)
USB 3.1	1 x USB 3.2 (Gen 2 Type-A) | 2 x USB 3.2 (Gen 2 Type-C) | 1 x USB 3.2 (Gen 1 Type-A)
Video Connectors	1 x HDMI 2.1
Digital Audio	1 x Optical
Headers	1 x CPU Fan Header | 4 x System Fan Header
USB	2 x USB 2.0 Headers (4 Ports) | 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) | 1 x USB 3.2 Gen 2 Type-A Header (1 Port)
Other I/O	3 x Addressable LED Headers
Power Connectors	1 x 24-pin ATX Connector | 2 x 8-pin +12 V Connector | 1 x 8-pin PCIe Power Connector
Conector ATX	24-pin ATX Power Connector
Profundidad	12.00 in. (304.80 mm)
Ancho	9.60 in. (243.84 mm)
Factor de forma	ATX
What's in the Box	Motherboard, SATA Cable, M.2 Screws, Antenna
