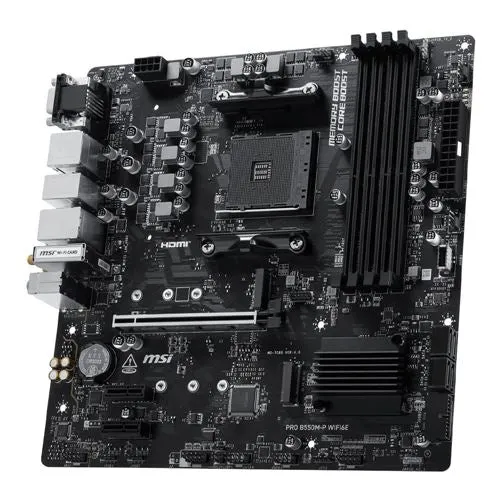

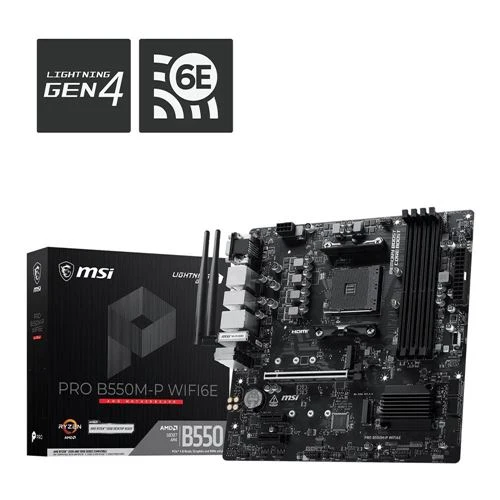

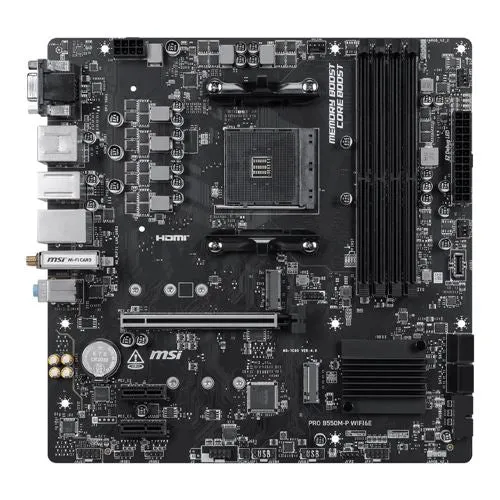

Tarjeta Madre MSI PRO B550M-P WIFI6E AMD AM4 B550 microATX

95,92 €150,28 €36% OFF
Quantité

Détails du produit

Sobre este producto

  • 🔌 Socket AM4: compatible con procesadores AMD Ryzen sobre chipset AMD B550.
  • 🧠 Memoria DDR4: 4 slots DIMM, doble canal, hasta 128GB y velocidades hasta 4266+ MHz por A-XMP OC.
  • âš¡ PCIe 4.0: ranura PCI Express 4.0 x16 lista para tarjetas gráficas de alto ancho de banda.
  • 💾 Almacenamiento M.2: 2 sockets M.2 (M Key) para SSD NVMe más 4 puertos SATA 6Gb/s con RAID 0/1.
  • 📶 WiFi 6E + Bluetooth 5.3: conectividad inalámbrica 802.11ax y LAN Gigabit Realtek RTL8111H.
  • 🔊 Audio 7.1: chipset Realtek ALC897 y puerto frontal USB Type-C para builds modernos.
Característica Detalles
Tipo de producto Tarjetas Madre
Marca MSI
Modelo PROB550MPWIFI6E
UPC 824142462959
Packaging Retail
Chipset AMD B550
AMD CPU Support Ryzen
Socket AM4
ECC Non-ECC; Non-Registered
Tipo de memoria DDR4-2667 | DDR4-2933 | DDR4-3200 | DDR4-3000
Memory Speeds Supported 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Memory Slots 4 x 288pin DIMM
Memory Channel Support Dual Channel
Max Memory Supported 128GB
Maximum Memory Supported Per Slot 32GB
Onboard Graphic Chipset Requires CPU with Integrated Graphics
M.2 Port Type 2242 | 2260 | 2280
SATA Express 2 x M.2 Socket 3 | M Key | 1 x M.2 Socket 3 | E Key
SATA 6Gb/s 4
RAID Support RAID 0 | RAID 1
Audio Chipset Realtek ALC897
Audio Channels 7.1
WiFi Support M.2 Slot
LAN Chipset Realtek RTL8111H
LAN Speed 10/100/1000Mbps
Wireless Technology 802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.3
PCI Express 4.0 x16 1
PCI Express x1 2

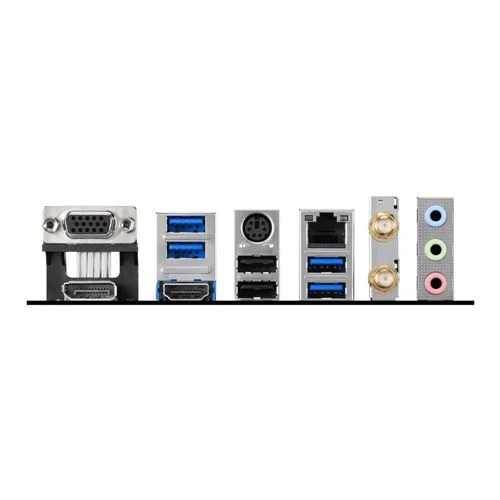

Legacy Ports 1 x PS/2
LAN Ports 1 x 10/100/1000 RJ-45 LAN
Audio Ports 1 x 3.5 mm Microphone | 1 x 3.5 mm Line-In | 1 x 3.5 mm Line-Out
Specialty Ports 2 x WiFi Antenna Ports
USB 2.0 2 x USB 2.0 (Type-A)
USB 3.1 4 x USB 3.2 (Gen 1 Type-A)
Video Connectors 1 x VGA 15-pin | 1 x HDMI 2.1 | 1 x DisplayPort 1.4
Headers 1 x CPU Fan Header | 2 x System Fan Header
USB 2 x USB 2.0 Headers (4 Ports) | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) | 1 x USB 3.2 Gen 1 Type-C Header (1 Port)
Other I/O 2 x Addressable LED Headers
Power Connectors 1 x 24-pin ATX Connector | 1 x 8-pin +12 V Connector
Conector ATX 24-pin ATX Power Connector
Profundidad 9.60 in. (243.84 mm)
Ancho 9.60 in. (243.84 mm)
Box Dimensions (WxDxH) 13.50 x 22.00 x 12.00 in. (342.90 x 558.80 x 304.80 mm)
Factor de forma microATX
What's in the Box Motherboard, M.2 Screws, SATA Cables, Antenna, I/O Shield
