Vendeur: ASUS

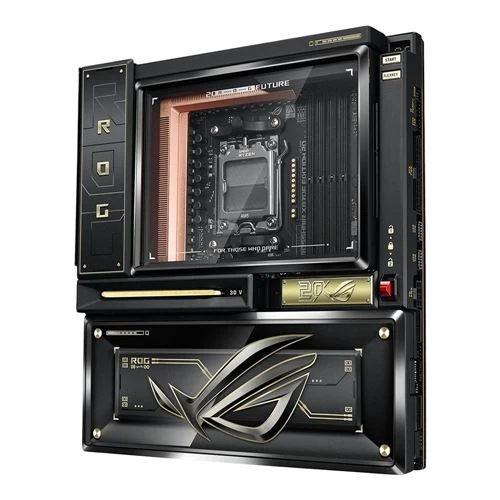

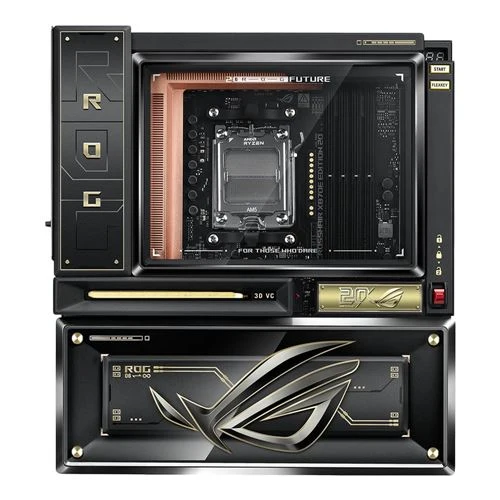

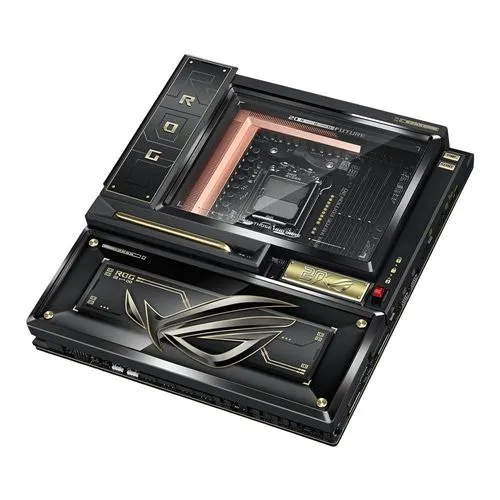

Tarjeta Madre ASUS X870E ROG CROSSHAIR EDITION 20 AMD AM5 ATX Motherboard

4 306,98 €8 448,64 €49% OFF
Quantité

Détails du produit

Sobre este producto

  • 🏆 Edición 20º aniversario ROG: placa de coleccionista con diseño icónico, 24+2+2 fases de alimentación y disipación VRM de cobre macizo para estabilidad y rendimiento sin concesiones.
  • ⚙️ Chipset AMD X870E + socket AM5: soporta procesadores AMD Ryzen con doble BIOS AMI UEFI de 64 Mb (512 Mb) y gestión WOL.
  • 🧠 Memoria DDR5 hasta 256GB: 4 ranuras DIMM en Dual Channel con amplio abanico de perfiles DDR5 (4400 a 6200) y 64GB por módulo.
  • 💾 Hasta 9 ranuras M.2: 9 x M.2 Socket 3 M Key, 4 puertos SATA 6Gb/s y soporte RAID 0/1/5/10 para una expansión de almacenamiento excepcional.
  • 📡 WiFi 7 MediaTek + 10G LAN: módulo MediaTek Wi-Fi 7 MT7927 con Bluetooth 5.4 y LAN Realtek de 10 Gbps.
  • 🔊 Audio ROG SupremeFX ALC4082 7.1: solución de audio de gama alta con salida de 7.1 canales para sonido de alta fidelidad.
Característica Detalles
Tipo de producto Tarjeta Madre
Marca ASUS
Modelo ROGX870E20TH
UPC 199291650985
Packaging Retail
Chipset AMD X870E
BIOS 2 x 64Mb (512Mb) AMI UEFI BIOS
Manageability WOL
AMD CPU Support Ryzen
Socket AM5
ECC Non-ECC; Non-Registered | ECC; Non-Registered
Tipo de memoria DDR5-4800 | DDR5-5200 | DDR5-5400 | DDR5-5600 | DDR5-4400 | DDR5-5000 | DDR5-6200 | DDR5-6000 | DDR5-5800
Memory Slots 4 x 288pin DIMM
Memory Channel Support Dual Channel
Max Memory Supported 256GB
Maximum Memory Supported Per Slot 64GB
Onboard Graphic Chipset Requires CPU with Integrated Graphics
M.2 Port Type 2242 | 2260 | 2280 | 2230 | 22110
SATA Express 9 x M.2 Socket 3 | M Key
SATA 6Gb/s 4
RAID Support RAID 0 | RAID 1 | RAID 5 | RAID 10
Audio Chipset ROG SupremeFX ALC4082
Audio Channels 7.1
WiFi Support Onboard WiFi
LAN Chipset Realtek 10Gb Ethernet
LAN Speed 100/1000/2500/5000/10000Mbps
Wireless LAN Chipset MediaTek Wi-Fi 7 MT7927
Wireless Technology 802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.4 | WiFi 7 (802.11be)
PCI Express 5.0 x16 2

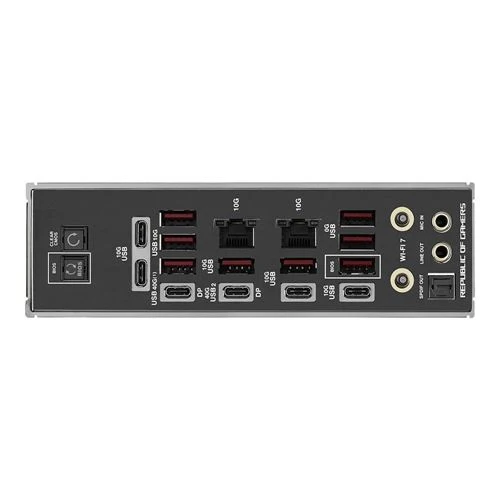

LAN Ports 2 x 100/1000/2500/5000/10000Mbps
Buttons Clear CMOS | BIOS Flashback
Audio Ports 1 x 3.5 mm Microphone | 1 x 3.5 mm Line-Out
Specialty Ports 2 x WiFi Antenna Ports
USB 3.1 8 x USB 3.2 (Gen 2 Type-A) | 2 x USB4 (Type-C 40 Gb/s) | 4 x USB 3.2 (Gen 2 Type-C)
Digital Audio 1 x Optical
Headers 2 x System Fan Header | 2 x CPU Fan Header | 2 x Water Pump Header
USB 3 x USB 2.0 Headers (6 Ports) | 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) | 2 x USB 3.2 Gen 2x2 Type-C Headers (2 Ports)
Other I/O 2 x Addressable LED Headers
Power Connectors 1 x 24-pin ATX Connector | 2 x 8-pin +12 V Connector | 1 x 8-pin PCIe Power Connector
Conector ATX 24-pin ATX Power Connector
Profundidad 12.00 in. (304.80 mm)
Ancho 10.90 in. (276.70 mm)
Box Dimensions (WxDxH) 26.20 x 25.80 x 13.20 in. (665.48 x 655.32 x 335.28 mm)
Factor de forma eATX
