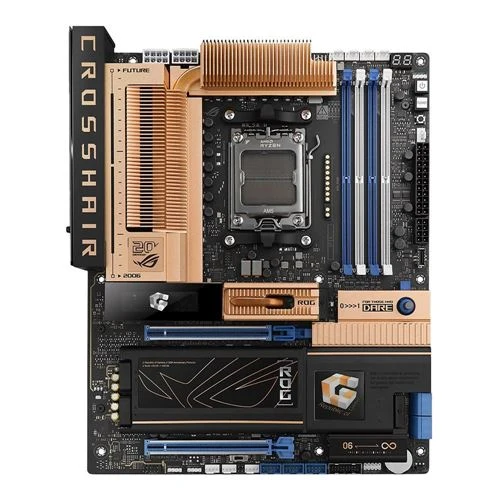

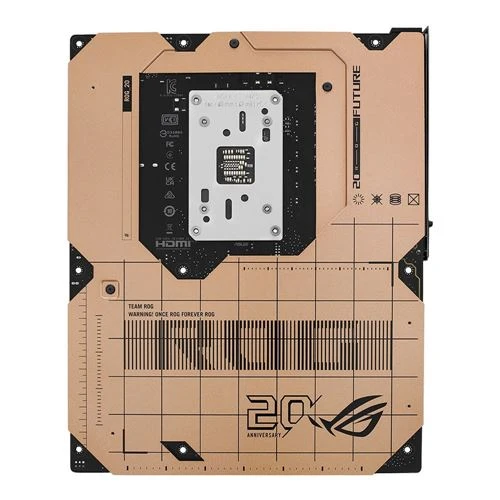

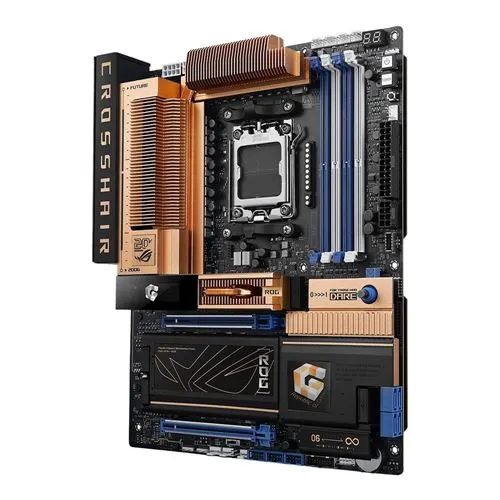

Tarjeta Madre ASUS ROG Crosshair X870E 20th Anniversary AMD AM5 ATX WiFi 7 DDR5

Sobre este producto

• 🏆 Edición 20.º Aniversario de ROG — diseño retro en cobre con pantalla OLED animada; una placa insignia que une la herencia de ROG con rendimiento de punta.
• ⚡ Chipset AMD X870E, socket AM5 para procesadores AMD Ryzen — base premium para gaming extremo, creación de contenido y overclocking.
• 🚀 DDR5 hasta 9600+ MHz (OC) en 4 ranuras (256 GB máx., doble canal) — memoria ultrarrápida para las cargas más exigentes.
• 💾 5 ranuras M.2 (PCIe) + 4 SATA 6 Gb/s con RAID 0/1/5/10 y 2× PCIe 5.0 x16 — almacenamiento y expansión de sobra.
• 🌐 WiFi 7 (MediaTek MT7927) + Bluetooth 5.4 y doble LAN 10 GbE y 5 GbE — la conectividad más rápida disponible hoy.
• 🎧 Audio ROG SupremeFX ALC4082 (7.1) integrado — sonido envolvente de alta fidelidad sin tarjeta aparte.

Característica	Detalles
Tipo de producto	Tarjeta Madre
Marca	ASUS
Modelo	ROG Crosshair X870E 20th Anniversary
Packaging	Retail
Chipset	AMD X870E
BIOS	64MB (512Mb) Flash ROM, UEFI AMI BIOS
AMD CPU Support	Ryzen
Socket	AM5
ECC	Non-ECC; Non-Registered | ECC; Non-Registered
Tipo de memoria	DDR5-4800 | DDR5-4000 | DDR5-5200 | DDR5-5400 | DDR5-4400 | DDR5-5000
Memory Speeds Supported	9600+ MHz (OC)
Memory Slots	4 x 288pin DIMM
Memory Channel Support	Dual Channel
Max Memory Supported	256GB
Maximum Memory Supported Per Slot	64GB
Onboard Graphic Chipset	Requires CPU with Integrated Graphics
M.2 Port Type	2242 | 2260 | 2280 | 22110
SATA Express	5 x M.2 Socket 3 | M key
SATA 6Gb/s	4
RAID Support	RAID 0 | RAID 1 | RAID 5 | RAID 10
Audio Chipset	ROG SupremeFX ALC4082
Audio Channels	7.1
WiFi Support	Onboard WiFi
LAN Chipset	Realtek 10Gb Ethernet
LAN 2 Chipset	Realtek 5Gb Ethernet
LAN Speed	100/1000/2500/5000/10000Mbps
Wireless LAN Chipset	MediaTek Wi-Fi 7 MT7927
Wireless Technology	802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.4 | WiFi 7 (802.11be) | WiFi 6E (802.11ax)
PCI Express 5.0 x16	2

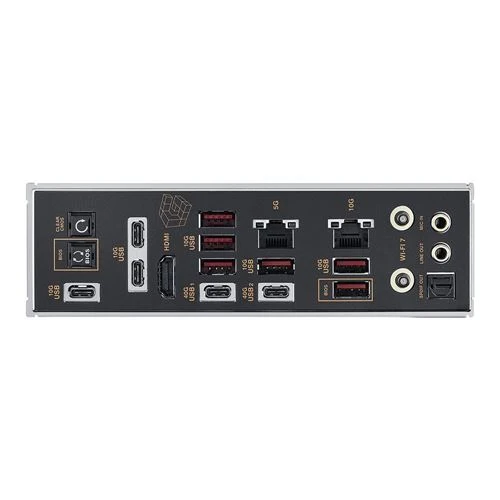

LAN Ports	1 x 100/1000/2500/5000/10000Mbps | 1 x 100/1000/2500/5000 RJ-45 LAN
Audio Ports	1 x 3.5 mm Microphone | 1 x 3.5 mm Line-Out
Buttons	Flash BIOS | Clear CMOS
Specialty Ports	2 x WiFi Antenna Ports
USB 3.1	6 x USB 3.2 (Gen 2 Type-A) | 3 x USB 3.2 (Gen 2 Type-C) | 2 x USB4 (Type-C 40 Gb/s)
Video Connectors	1 x HDMI 2.1
Digital Audio	1 x Optical
Headers	1 x Water Pump Header | 2 x CPU Fan Header
USB	3 x USB 2.0 Headers (6 Ports) | 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) | 2 x USB 3.2 Gen 2x2 Type-C Headers (2 Ports)
Other I/O	3 x Addressable LED Headers
Power Connectors	1 x 24-pin ATX Connector | 2 x 8-pin +12 V Connector | 1 x 8-pin PCIe Power Connector
Conector ATX	24-pin ATX Power Connector
Profundidad	12.00 in. (304.80 mm)
Ancho	9.61 in. (244.00 mm)
Factor de forma	ATX
