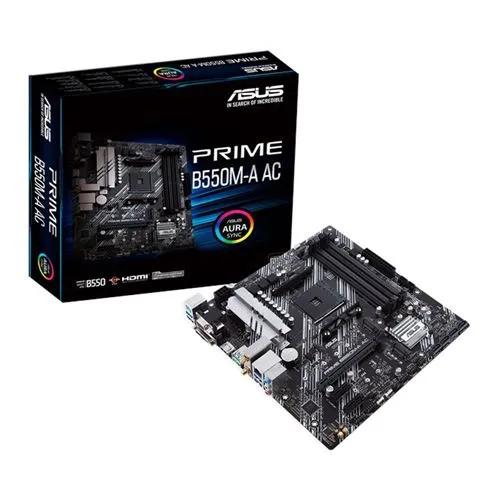

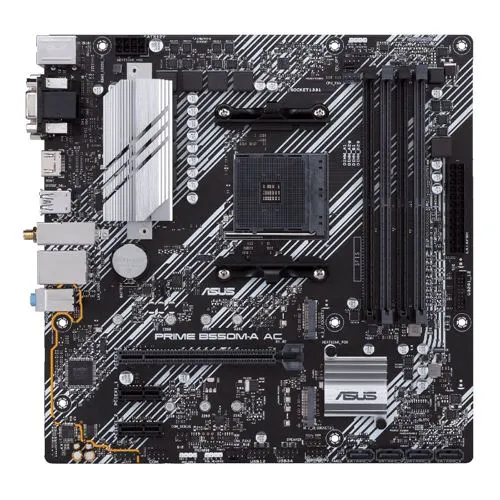

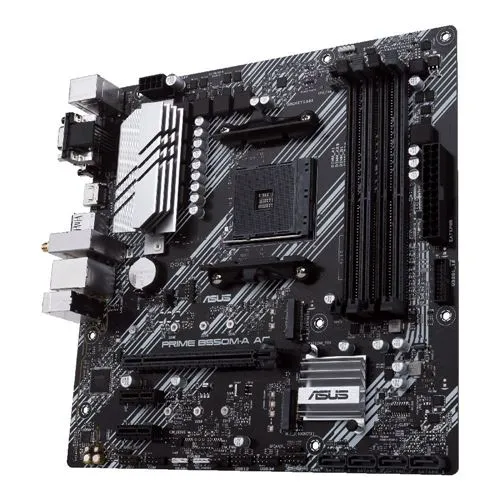

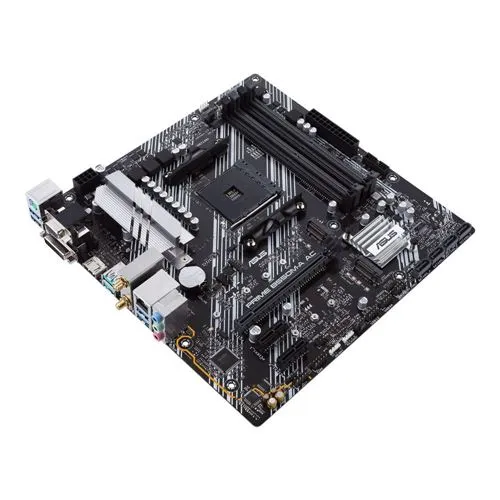

Tarjeta Madre ASUS Prime B550M-A AC AMD B550 AM4 DDR4 microATX WiFi

Sobre este producto

• 🔧 Socket AM4 para AMD Ryzen (3ª gen): chipset AMD B550, base sólida y confiable.
• 🧠 Memoria DDR4 (hasta 3200 MHz+, doble canal): rendimiento estable para gaming y trabajo.
• ⚡ PCIe 4.0 x16 + doble M.2: soporte para GPUs y SSDs NVMe rápidos.
• 📶 WiFi y Bluetooth 5.0 integrados más LAN Gigabit (Realtek).
• 🔊 Audio Realtek 7.1 y diseño de energía robusto con enfriamiento.
• 📐 Formato microATX: compacto y versátil.

Característica	Detalles
Tipo de producto	Tarjeta madre
Marca	ASUS
Modelo	B550M-A PRIME AC PS AMD AM4 microATX Motherboard
Número de parte	PRIMEB550M-A AC
UPC	192876837535
Packaging	Retail
Chipset	AMD B550
BIOS	256Mb AMI UEFI Bios
Manageability	WOL
AMD CPU Support	Ryzen
Socket	AM4
ECC	Non-ECC; Non-Registered | ECC; Non-Registered
Tipo de memoria	DDR4-2133 | DDR4-2400 | DDR4-2666 | DDR4-3200 | DDR4-2800 | DDR4-3000
Memory Speeds Supported	4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133
Memory Slots	4 x 288pin DIMM
Memory Channel Support	Dual Channel
Max Memory Supported	128GB
Maximum Memory Supported Per Slot	32GB
Supported Memory Technologies	ECC Memory Supported | Non-ECC Memory Supported
Onboard Graphic Chipset	Requires CPU with Integrated Graphics
M.2 Port Type	2242 | 2260 | 2280 | 22110
SATA Express	2 x M.2 Socket 3 | M Key
SATA 6Gb/s	4
RAID Support	RAID 0 | RAID 1 | RAID 10
Audio Chipset	Realtek ALC887/897
Audio Channels	7.1
WiFi Support	Onboard WiFi
LAN Chipset	Realtek RTL8111H
LAN Speed	10/100/1000Mbps
Wireless Technology	802.11b | 802.11g | 802.11a | Bluetooth v5.0 | WiFi 4 (802.11n) | WiFi 5 (802.11ac)
PCI Express 4.0 x16	1
PCI Express x1	2

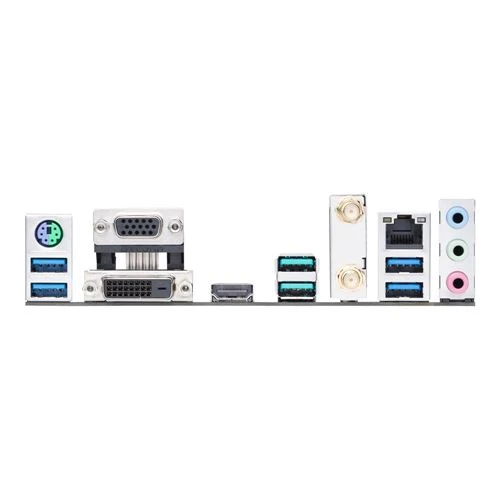

Legacy Ports	1 x PS/2
LAN Ports	1 x 10/100/1000 RJ-45 LAN
Audio Ports	1 x 3.5 mm Microphone | 1 x 3.5 mm Line-In | 1 x 3.5 mm Line-Out
Specialty Ports	2 x WiFi Antenna Ports
USB 3.1	4 x USB 3.2 (Gen 1 Type-A) | 2 x USB 3.2 (Gen 2 Type-A)
Video Connectors	1 x VGA 15-pin | 1 x DVI-D | 1 x HDMI 1.4
Headers	1 x CPU Fan Header | 2 x System Fan Header
USB	2 x USB 2.0 Headers (4 Ports) | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
Power Connectors	1 x 24-pin ATX Connector | 1 x 8-pin +12 V Connector
Conector ATX	24-pin ATX Power Connector
Profundidad	9.61 in. (244.00 mm)
Ancho	9.61 in. (244.00 mm)
Factor de forma	microATX
What's in the Box	Motherboard, 2x SATA Cables, I/O Shield, M.2 Screws, Antenna, Driver Disc, Manual
