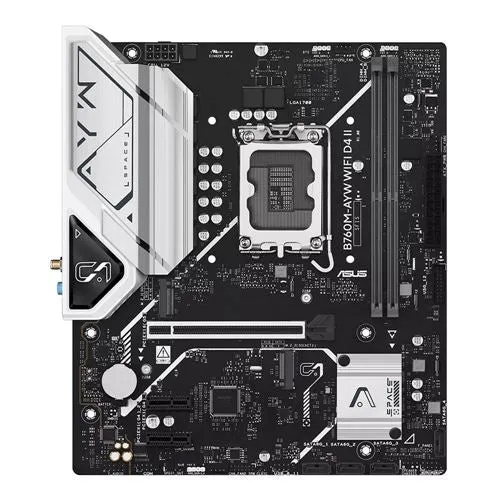

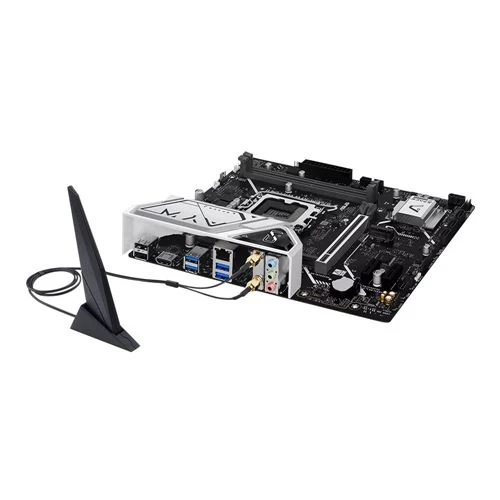

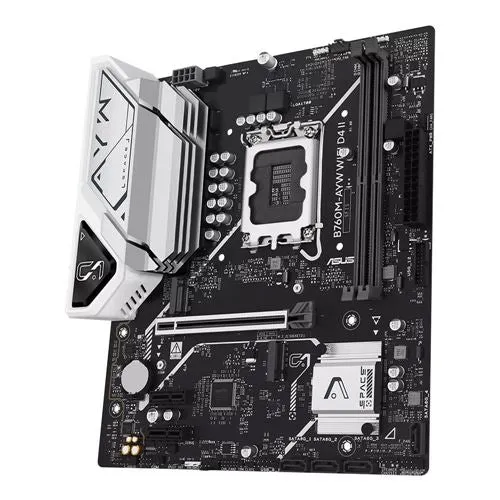

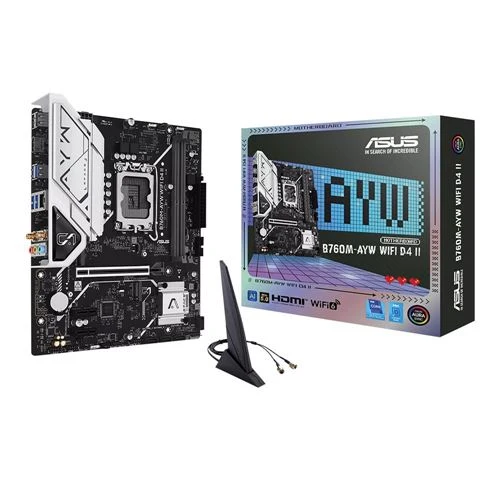

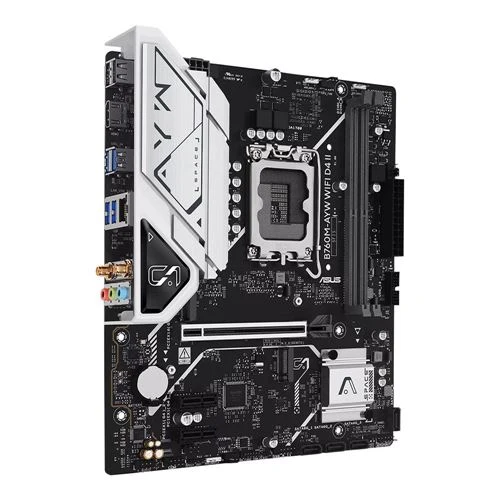

Tarjeta Madre ASUS B760M-AYW WIFI D4 II Intel LGA 1700 microATX Motherboard

Sobre este producto

• 💡 Optimizada para Intel 14ª Gen — diseño de energía robusto y opciones de ajuste inteligente mediante software y firmware para exprimir los procesadores Core de 14ª generación.
• ⚙️ Chipset Intel B760 y socket LGA 1700 — compatible con Core i9, i7, i5, i3 y Pentium; BIOS AMI UEFI de 128Mb.
• 🧠 DDR4 hasta 64GB económica — 2 ranuras DIMM en Dual Channel (32GB máx por módulo) con velocidades de hasta 5333 MHz (OC), ideal para reutilizar módulos DDR4.
• 💾 M.2 2280 y SATA con RAID avanzado — 2 x M.2 Socket 3 M Key, 4 puertos SATA 6Gb/s y RAID 0/1/5/10 para almacenamiento versátil.
• 🌐 WiFi 6 y LAN 2.5G — WiFi 6 (802.11ax) con Bluetooth 5.3 y LAN RJ-45 de 2.5G (hasta 2500Mbps) para conectividad moderna.
• 🎛️ Expansión PCIe 5.0 — 1 slot PCI Express 5.0 x16 más 2 slots PCI Express x1 para tarjetas gráficas y de expansión.

Característica	Detalles
Tipo de producto	Tarjeta Madre
Marca	ASUS
Modelo	B760MAYWWFD4II
UPC	199291065475
Packaging	Retail
Chipset	Intel B760
BIOS	128Mb AMI UEFI Bios
Manageability	WOL
Intel CPU Support	Core i7 | Core i5 | Core i3 | Pentium | Core i9
Socket	LGA 1700
ECC	Non-ECC; Non-Registered
Tipo de memoria	DDR4-2133 | DDR4-2400 | DDR4-2666 | DDR4-2933 | DDR4-3200 | DDR4-2800 | DDR4-3000
Memory Speeds Supported	5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Memory Slots	2 x 288pin DIMM
Memory Channel Support	Dual Channel
Max Memory Supported	64GB
Maximum Memory Supported Per Slot	32GB
Onboard Graphic Chipset	Requires CPU with Integrated Graphics
M.2 Port Type	2280
SATA Express	2 x M.2 Socket 3 | M Key
SATA 6Gb/s	4
RAID Support	RAID 0 | RAID 1 | RAID 5 | RAID 10
Audio Channels	7.1
WiFi Support	Onboard WiFi
LAN Speed	10/100/1000/2500Mbps
Wireless Technology	802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.3
PCI Express 5.0 x16	1
PCI Express x1	2

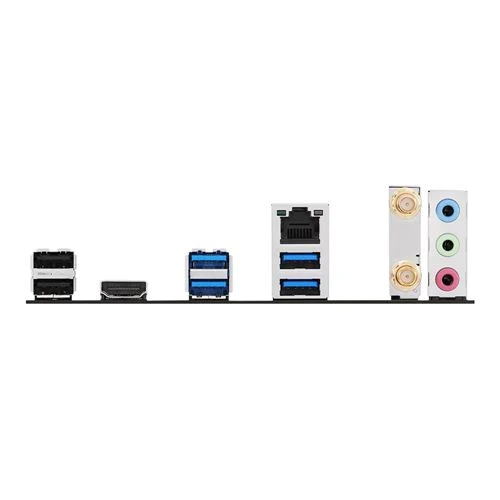

LAN Ports	1 x 10/100/1000/2500 RJ-45 LAN
Audio Ports	1 x 3.5 mm Microphone | 1 x 3.5 mm Line-In | 1 x 3.5 mm Line-Out
Specialty Ports	2 x WiFi Antenna Ports
USB 2.0	2 x USB 2.0 (Type-A)
USB 3.1	4 x USB 3.2 (Gen 1 Type-A)
Video Connectors	1 x HDMI 2.1
Headers	1 x CPU Fan Header | 2 x System Fan Header
USB	1 x USB 2.0 Header (2 Ports) | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
Other I/O	3 x Addressable LED Headers
Power Connectors	1 x 24-pin ATX Connector | 1 x 8-pin +12 V Connector
Conector ATX	24-pin ATX Power Connector
Profundidad	9.61 in. (244.00 mm)
Ancho	9.61 in. (244.00 mm)
Box Dimensions (WxDxH)	10.49 x 10.83 x 2.66 in. (266.45 x 275.08 x 67.56 mm)
Factor de forma	microATX
