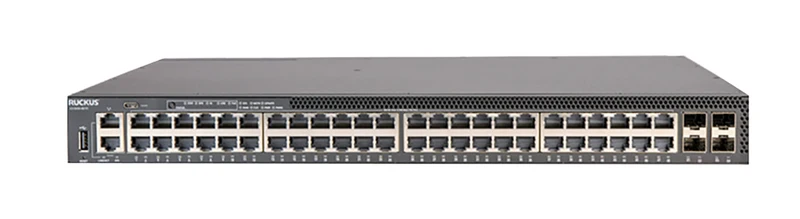

Switch de Red Ruckus ICX 8200 48-Port Multi Gigabit PoE Switch

Sobre este producto

• 🔌 48 puertos multigigabit con PoE, diseñado para redes de campus wireless-first e IoT de próxima generación
• 🔋 Incluye una fuente de alimentación (PSU) con potencia de 740W
• ⚡ Hasta 8x puertos 25GbE para uplinks o stacking, con PoE++ (802.3bt) y VXLAN
• 📚 Densidad de stacking líder con hasta 12 switches por pila y funciones avanzadas L2/L3

Característica	Detalle
Marca	Ruckus
Línea de producto	Ruckus ICX
Modelo	8200
Fabricante	Ruckus Wireless
Flash Memory Installed	8 GB
RAM instalada	4 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Características	1 fan, ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, DDos attack prevention, DHCP relay, DHCP server, DHCP support, Dynamic VLAN Support (GVRP), Flow control, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address filtering, Metro Ring Protocol (MRP) support, MLD snooping, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM snooping, Port Loop Detection, Port mirroring, Private VLAN, Protocol Independent Multicast (PIM), Q-in-Q tunneling, Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), Root Guard, sFlow, Spanning Tree Protocol (STP) support, Uni-Directional Link Detection (UDLD), Virtual Switch Redundancy Protocol (VSRP) support, VLAN / port mapping, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9216 bytes
MAC Address Table Size	32K entries
Manageable	Yes
Max Units In A Stack	12
PoE Budget	740 watt
Ports	48
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol	GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPF, OSPFv2, OSPFv3, Policy-based routing (PBR), Static IPv4 routing, Static IPv6 routing, VRF, VRRP, VRRPE, VRRPv3
Stackable	Stackable
Subcategory	Network hubs and switches
Interfaces	1 x RJ-45 out-of-band network management, 1 x serial (console) RJ-45 management, 1 x USB storage, 1 x USB-C console management, 16 x 10/100/1000/2500 Base-T (PoE++) RJ-45 90 W, 32 x 10/100/1000 Base-T (PoE+) RJ-45, 4 x 25 GbE SFP28 uplink/stacking
Port Quantity	32
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	10/100/1000/2500 (PoE++)
Frequency	50 - 60 hertz
Hot-Plug	Hot-plug
Potencia	920 watt
Fuentes instaladas	1
Fuentes soportadas	1
Fuente redundante	Yes
Fuente redundante soportada	1+1
Voltaje requerido	AC 100-240 volt
Encryption	AES
Humidity Range Storage	10 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	10 - 90% (non-condensing)
Airflow Direction	Front and side to back
Authentication Method	RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity	Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding performance: 254 Mpps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 344 Gbps
Ports (2nd) Quantity	16
Alto	1.7 inch
Altura (unidades de rack)	1
Ancho	17.3 inch
Profundidad	14.6 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TAA Compliant	Yes
TCO Certified	No
