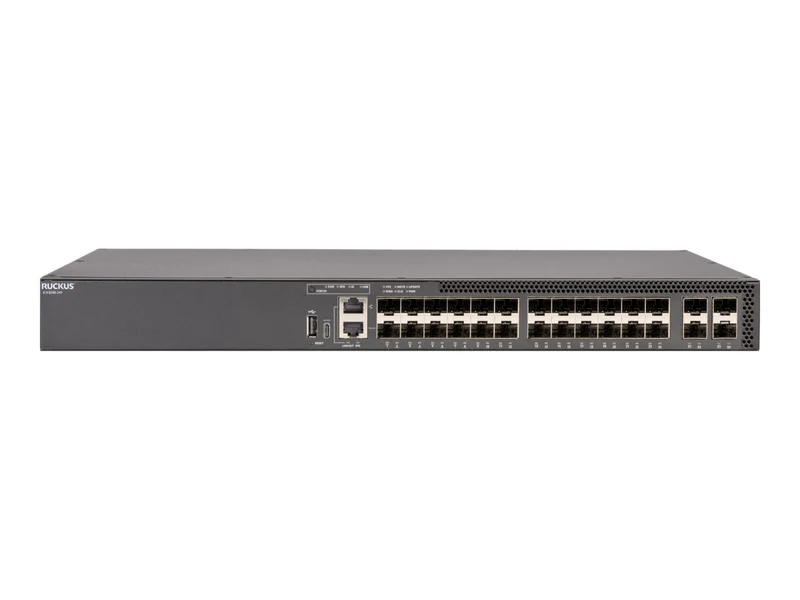

Switch de Red Ruckus ICX 8200 24-Port 1G Fiber Switch

Sobre este producto

• 📡 Switch de fibra de borde inteligente y escalable para redes de campus wireless-first e IoT de nueva generación
• 🔌 24 puertos con hasta 8x 25 GbE para uplinks o stacking
• ⚡ PoE++ (802.3bt), VXLAN y funciones L2/L3
• 📈 Densidad de stacking de hasta 12 switches por stack
• 🔒 Seguridad y privacidad de datos mejoradas con amplias opciones de gestión unificada

Característica	Detalle
Marca	Ruckus
Línea de producto	Ruckus ICX
Modelo	8200-24F
Fabricante	Ruckus Wireless
Flash Memory Installed	8 GB
RAM instalada	4 GB
Advanced Switching	Layer 3
Características	OpenFlow support, sFlow, Virtual Routing and Forwarding (VRF), VxLAN tunneling
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9216 bytes
MAC Address Table Size	32K entries
Manageable	Yes
Max Units In A Stack	12
Ports	24
Tipo de producto	Switch
Gestión remota	CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol	GRE, OSPF, RIP, Static IPv4 routing, VRRP
Stackable	Stackable
Status Indicators	Diagnostic, Identify, Link/activity, Master, Power, Speed/activity, Status, System, USB
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet / 10 Gigabit Ethernet / 25 Gigabit Ethernet
QSFP Slots	25 GbE SFP28 (stacking / uplink)
Interfaces	1 x USB Type A management, 1 x USB Type C console management, 2 x 1000Base-T RJ-45 management, 24 x Gigabit LAN SFP female, 4 x 10Gbit LAN SFP+ female, 4 x 25Gbit LAN SFP28 female
Port Quantity	24
Port Type	10/100/1000
Ports Type (2nd)	10 Gigabit SFP+
Frequency	50 - 60 hertz
Potencia	65 watt
Fuentes instaladas	1
Fuentes soportadas	1
Voltaje requerido	AC 100-240 volt
Encryption	AES
Humidity Range Storage	10 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
MTBF	1,543,328 Hours
Humedad de operación	10 - 90% (non-condensing)
Airflow Direction	Front and side to back
Authentication Method	RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity	Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
País	Asia, Australia, EMEA, Latin America, New Zealand, North America
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Aggregate bandwidth: 1200 Gbps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 248 Gbps
Ports (2nd) Quantity	4
Ports (3rd) Quantity	4
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	8.25 lbs
Ancho	17.3 inch
Profundidad	11 inch
Color	Black
Estándares	CAN/CSA-C22.2 No. 62368-1, China RoHS, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, RoHS, TCVN 7189 Class A, TCVN 7317, UK RoHS, UL 62368-1, VCCI Class A
Certificado ENERGY STAR	No
