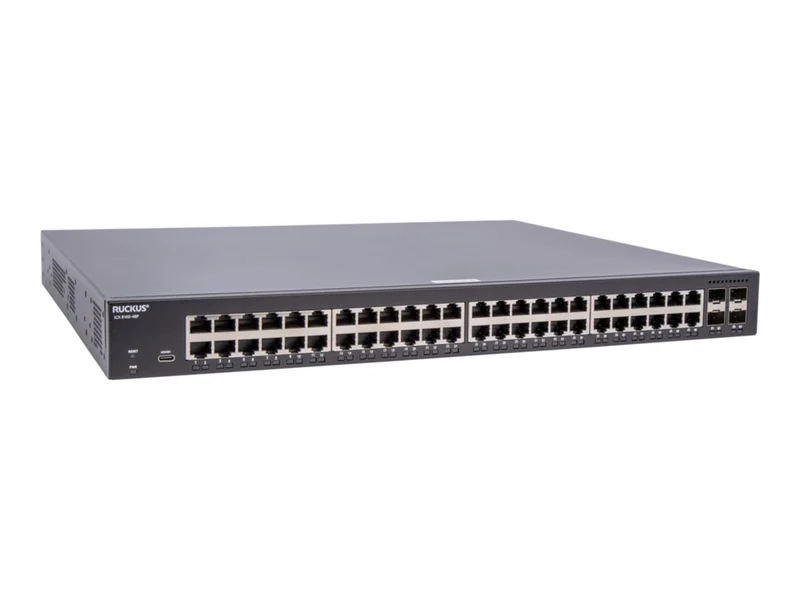

Switch de Red Ruckus ICX 8100-48PF

Sobre este producto

• 🔌 48 puertos 10/100/1000 con PoE+ (740 W) + 4 puertos SFP+ 10 Gigabit de uplink.
• 🚀 Capacidad de reenvío de 132 millones de paquetes por segundo (Mpps) para manejo eficiente de datos.
• 🛡️ Gestión de tráfico avanzada con IGMP snooping, grupos de agregación de enlaces (LAG) y VLAN dinámica.
• 🗄️ Switch administrable (managed) compacto montable en rack (rack-mountable) con flujo de aire de frente y lados hacia atrás.

Característica	Detalle
Marca	Ruckus
Línea de producto	Ruckus ICX
Modelo	8100-48PF
Fabricante	Ruckus Wireless
Flash Memory Installed	8 GB
RAM instalada	2 GB
Estándares	IEEE 802.1 AVB, IEEE 802.1ab (LLDP), IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	802.1x authentication, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS) protection, DHCP relay, DHCP server, DHCP snooping, Double VLAN mode, DSCP/ToS mapping, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Energy-Efficient Ethernet (EEE), Flexible authentication, High Availability, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, Inter-Packet Gap (IPG) adjustment, IPv6 Neighbor Discovery Inspection, Layer 2 switching, Link Fault Signaling (LFS), MAC address authentication, MAC address blocking, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, Syslog support, Traffic management, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), VLAN mapping, Web authentication
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9216 bytes
MAC Address Table Size	32K entries
Manageable	Yes
PoE Budget	740 watt
Ports	48
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	BOOTP, CLI, DHCP, HTTP, HTTPS, NTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP
Routing Protocol	IGMP, IGMPv2, IGMPv3, MLD, PIM-SM, PIM-SMv6
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x console USB Type-C, 24 x 10/100/1000 Base-T (PoE+) RJ-45 15.4 W, 24 x 10/100/1000 Base-T (PoE+) RJ-45 30 W, 4 x 10Gbit LAN SFP+ uplink
Port Quantity	48
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	10 Gigabit SFP+ (uplink)
Frequency	50 - 60 hertz
Potencia	920 watt
Fuentes instaladas	1
Fuentes soportadas	1
Voltaje requerido	AC 100-240 volt
Encryption	AES
Humidity Range Storage	10 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	10 - 90% (non-condensing)
Airflow Direction	Front and side to back
Authentication Method	RADIUS, RADSEC, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity	ARP entries: 8192, IGMP multicast groups: 4096, Link aggregation groups: 128, Maximum member ports per LAG: 8, Maximum number of VLANs: 4095, MLD multicast groups: 512, Packet buffer size: 4 MB, PVLANs supported: 32, QoS priority queues per port: 8, STP instances: 254
País	Asia, Australia, EMEA, Latin America, New Zealand, North America
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding capacity: 132 Mpps, Switching capacity: 176 Gbps
Ports (2nd) Quantity	4
Service Activation	No
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	14.09 lbs
Ancho	17.3 inch
Profundidad	14.6 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
