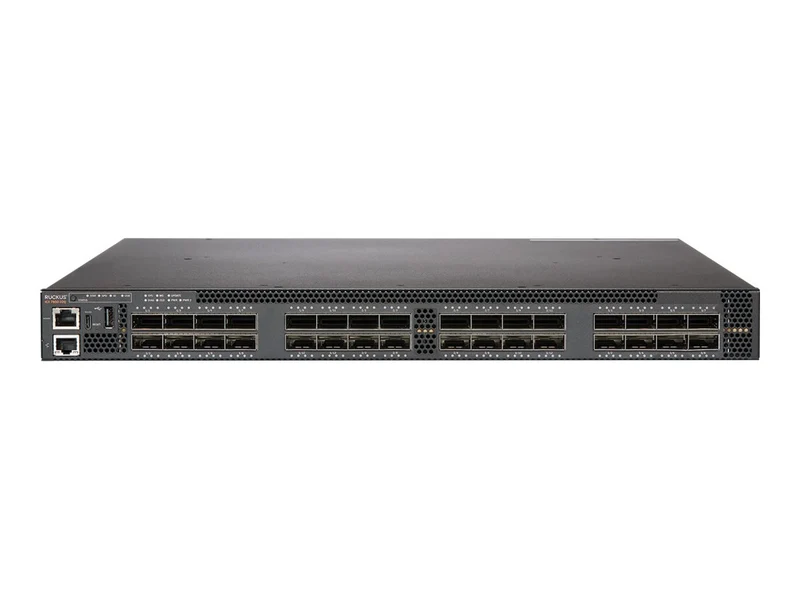

Switch de Red Ruckus ICX 7850-32Q

Sobre este producto

• 🔌 32 puertos QSFP28 de 40/100 GbE de serie, hasta 8 de ellos utilizables para stacking.
• 🚀 Switch de agregación/core con puertos QSFP28 nativos de 40 GbE o 100 GbE.
• 🔀 Los puertos pueden dividirse (break out) en 4x10 Gbps o 4x25 Gbps, hasta 128 puertos 10/25GbE.
• 🏢 Ideal para agregación de servidores en centro de datos o agregación de switches en campus.
• 🗄️ Switch L3 administrado rack-mountable con flujo de aire front-to-back.

Característica	Detalle
Marca	Ruckus
Línea de producto	Ruckus ICX
Modelo	7850-32Q
Fabricante	Ruckus Wireless
Flash Memory Installed	32 GB
RAM instalada	4 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Características	6 fans, 802.1x authentication, Access Control List (ACL) support, BOOTP support, DHCP server, DHCP snooping, DHCP support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Flow control, Full duplex capability, IGMP proxy, In-Service Software Upgrade (ISSU), IPv4 support, IPv6 support, Jumbo Frames support, Link Aggregation, Link Aggregation Control Protocol (LACP), LLDP support, MAC address authentication, MAC address filtering, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MRP-II support, Multi-Chassis Trunking (MCT), Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), Port mirroring, Protected ports, Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), Secure Copy (SCP), sFlow, SmartZone, SNMP support, Strict Priority (SP), Syslog support, Tagged VLAN, Telnet client, Telnet server, Trivial File Transfer Protocol (TFTP) support, Trusted Platform Module (TPM), Type of Service (ToS), Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, VLAN Tagging, Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9216 bytes
MAC Address Table Size	32K entries
Manageable	Yes
Ports	32
Tipo de producto	Switch
Gestión remota	CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol	ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-1, RIP-2, RIPng, Static IP routing, VRRP
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	100 Gigabit Ethernet
Interfaces	1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45 management, 32 x 100Gbit/40Gbit LAN QSFP28
Port Quantity	32
Port Type	100 Gigabit QSFP28 / 40 Gigabit QSFP28
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Potencia	650 watt
Fuentes instaladas	2
Fuentes soportadas	2
Fuente redundante	Yes
Fuente redundante soportada	1+1
Encryption	AES
Humidity Range Storage	10 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	104 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	467,508 Hours
Humedad de operación	10 - 90% (non-condensing)
Airflow Direction	Front to back airflow
Authentication Method	RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity	Latency: 0.8 µs, Layer 2 multicast groups: 8192, Layer 3 multicast groups: 8192, Maximum ports per trunk: 16, Priority QoS queues: 10, PVLANs supported: 256, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 64
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Aggregate stacking bandwidth: 9.6 Tbps, Forwarding capacity: 2 Bpps, Switching capacity: 6.4 Tbps
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	20.06 lbs
Ancho	17.3 inch
Profundidad	17.5 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
