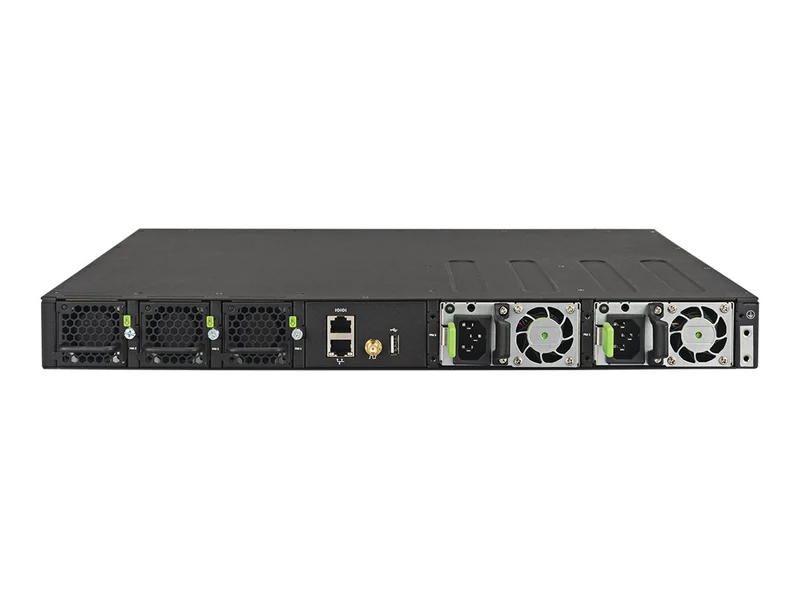

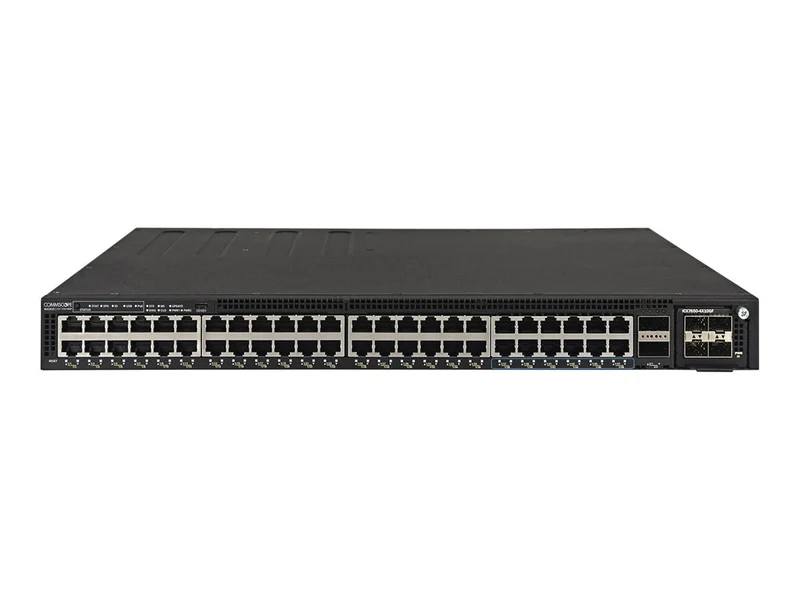

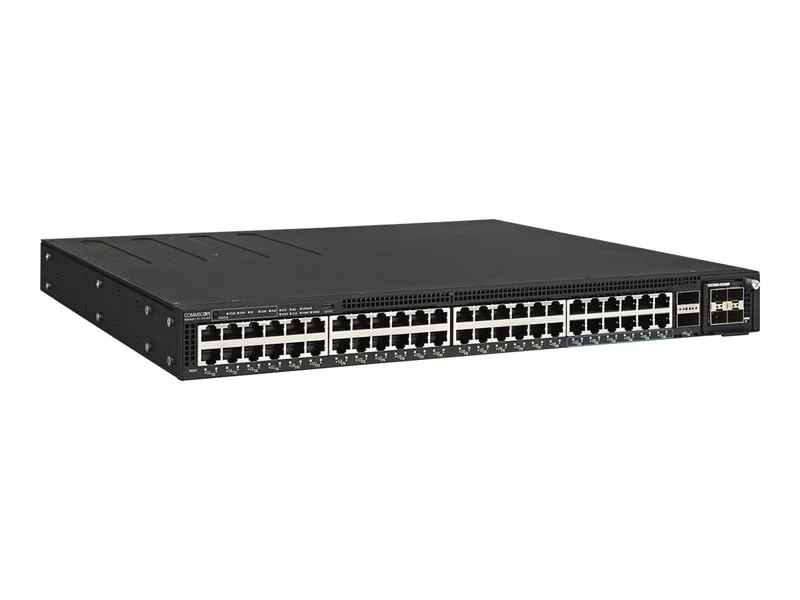

Switch de Red Ruckus ICX 7550-48ZP

Sobre este producto

• 🔌 36 puertos multigigabit 10/100/1000/2.5G + 12 puertos 100M-10G, todos PoE++, más 2 puertos QSFP+ 40/100G de uplink/stacking.
• ⚡ PoE++ 802.3bt de 90 W por puerto (presupuesto total 2000 W) con soporte perpetuo y fast-boot.
• 📶 Rendimiento premium optimizado para despliegues Wi-Fi 6 y posteriores.
• 📚 Densidad de apilamiento líder del mercado: hasta 12 switches por stack.
• 🌐 De los primeros de su clase con uplinks de 100 GbE, reutilizando tu infraestructura óptica existente.
• 🗄️ Switch L3 administrado rack-mountable con flujo de aire front-to-back.

Característica	Detalle
Marca	Ruckus
Línea de producto	Ruckus ICX
Modelo	7550-48ZP
Fabricante	Ruckus Wireless
Flash Memory Installed	4 GB
RAM instalada	4 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	3 fans, 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	12288 bytes
Manageable	Yes
Max Units In A Stack	12
PoE Budget	2000 watt
Ports	48
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol	BGP-4, BGP-4+, ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIPng, Static IPv4 routing, Static IPv6 routing, VRRPE, VRRPv3
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
QSFP Slots	40/100 Gigabit QSFP+ (uplink / stacking)
Interfaces	1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 12 x 100/1000/2.5G/5G/10G RJ-45 PoE++ - 90 W, 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking, 36 x 10/100/1000/2.5G RJ-45 PoE++ - 90 W
Port Quantity	36
Port Type	10/100/1000/2.5G (PoE++)
Ports Type (2nd)	100/1000/2.5/5/10G (PoE++)
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Power Consumption Operational	1183.7 watt
Potencia	1200 watt
Fuentes soportadas	2
Fuente redundante	Yes
Fuente redundante soportada	1+1 (with optional power supply)
Encryption	AES
Humidity Range Storage	5 - 95% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	213,665 Hours
Humedad de operación	10 - 90% (non-condensing)
Airflow Direction	Front to back airflow
Authentication Method	RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity	Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128
Device Type	Internal power supply (not installed)
Cantidad por empaque	1
Performance	Aggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 759 Mpps, Switching capacity: 1020 Gbps
Ports (2nd) Quantity	12
Ports (3rd) Quantity	2
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	16.23 lbs
Ancho	17.3 inch
Profundidad	16 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
