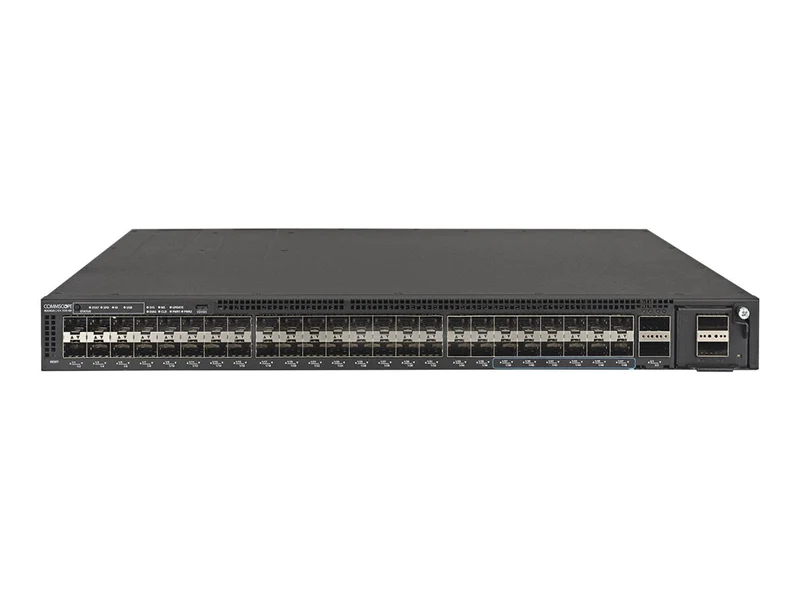

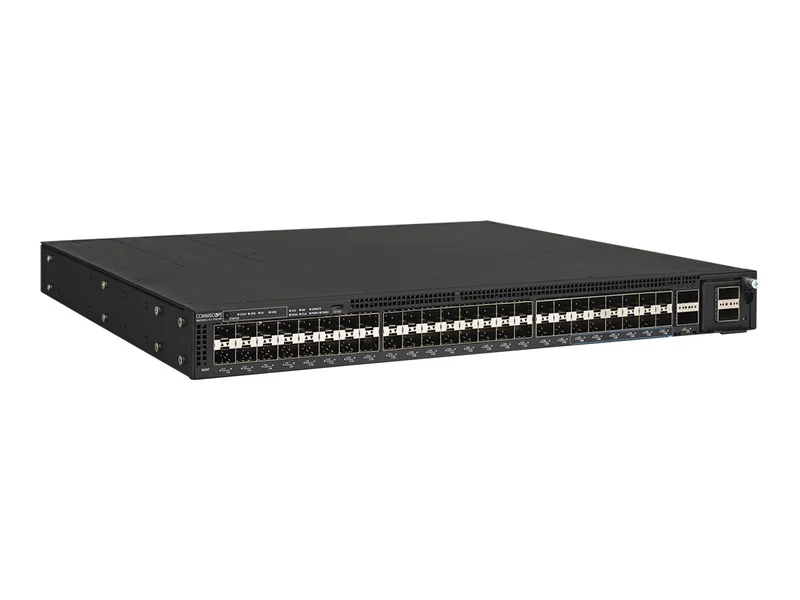

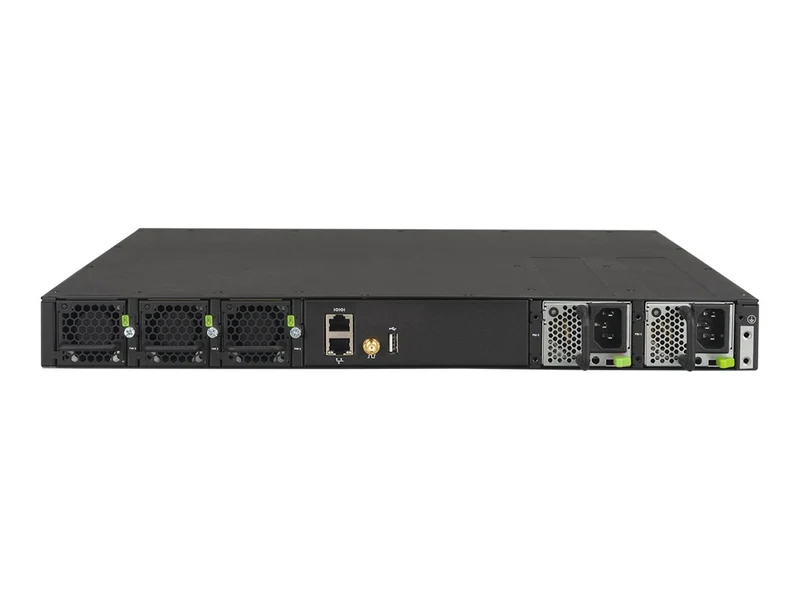

Switch de Red Ruckus ICX 7550-48F

Sobre este producto

• 🌐 Switch de Red Ruckus ICX 7550-48F: para redes cableadas de oficina y datacenter.
• ✅ The CommScope Ruckus ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond
• ✅ It offers incredible stacking density and combines chassis-level performance with "pay as you grow" scalability of a stackable solution

Característica	Detalle
Marca	Ruckus
Línea de producto	Ruckus ICX
Modelo	7550-48F
Fabricante	Ruckus Wireless
Flash Memory Installed	4 GB
RAM instalada	4 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	3 fans, 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	12288 bytes
Manageable	Yes
Max Units In A Stack	12
Ports	48
Tipo de producto	Switch
Gestión remota	CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol	ECMP, RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x expansion slot
QSFP Slots	40/100 Gigabit QSFP28 (uplink)
Interfaces	1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 12 x 1/10GBase-X SFP+, 2 x 100Gbit/40Gbit LAN QSFP28 uplink/stacking, 36 x 100 / 1000Base-X SFP
Port Quantity	36
Port Type	Gigabit SFP
Ports Type (2nd)	1 Gigabit / 10 Gigabit SFP+
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Power Consumption Operational	166.8 watt
Potencia	400 watt
Fuentes instaladas	2
Fuentes soportadas	2
Fuente redundante	Yes
Fuente redundante soportada	1+1
Encryption	AES
Humidity Range Storage	5 - 95% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	532,359 Hours
Humedad de operación	10 - 90% (non-condensing)
Authentication Method	RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity	Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Aggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 678 Mpps, Switching capacity: 912 Gbps
Ports (2nd) Quantity	12
Ports (3rd) Quantity	2
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	14.15 lbs
Ancho	17.3 inch
Profundidad	16 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
