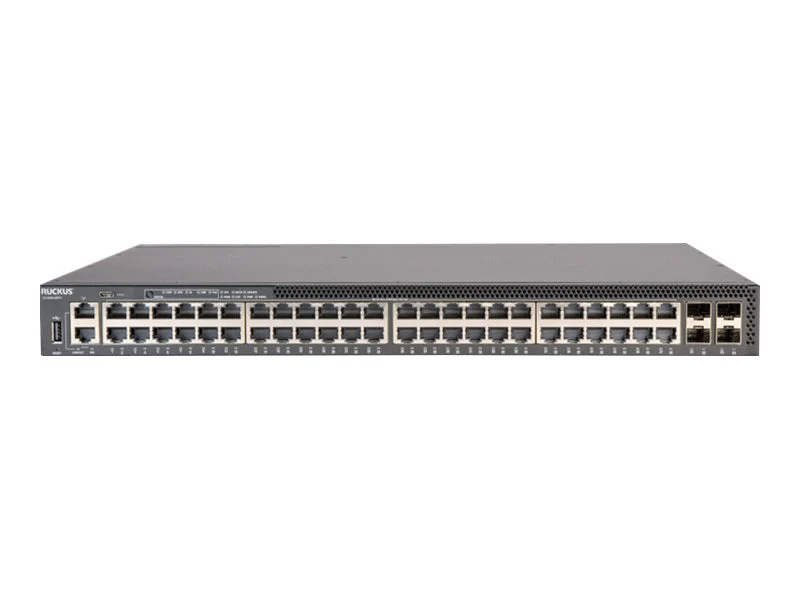

Switch de Red Ruckus 48 Port Managed PoE Campus Switch

Sobre este producto

• 🔌 48 puertos diseñados para redes de campus wireless-first e IoT de próxima generación
• ⚡ Hasta 8x puertos 25GbE para uplinks o stacking, con PoE++ (802.3bt) y VXLAN
• 🔀 Funciones avanzadas L2/L3 con funcionalidad enterprise-class a un precio accesible
• 📚 Densidad de stacking líder con hasta 12 switches por pila y escalabilidad pay-as-you-grow
• 🛡️ Rendimiento y fiabilidad enterprise-class sin comprometer manejabilidad

Característica	Detalle
Marca	Ruckus
Línea de producto	Ruckus ICX
Modelo	8200
Fabricante	Ruckus Wireless
Flash Memory Installed	8 GB
RAM instalada	4 GB
Advanced Switching	Layer 3
Características	ARP support, BOOTP support, DDos attack prevention, DHCP support, Flow control, MAC address filtering, Metro Ring Protocol (MRP) support, PIM snooping, Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9216 bytes
MAC Address Table Size	32K entries
Manageable	Yes
Max Units In A Stack	12
PoE Budget	1480 watt
Ports	48
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol	GRE, OSPF, Static IPv4 routing, Static IPv6 routing, VRRP
Stackable	Stackable
Subcategory	Network hubs and switches
Interfaces	1 x RJ-45 out-of-band network management, 1 x serial (console) RJ-45 management, 1 x USB storage, 1 x USB-C console management, 16 x 10/100/1000/2500 Base-T (PoE++) RJ-45, 32 x 10/100/1000 Base-T (PoE+) RJ-45, 4 x 25 GbE SFP28 uplink/stacking
Port Quantity	32
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	10/100/1000/2500 (PoE++)
Frequency	50 - 60 hertz
Hot-Plug	Hot-plug
Potencia	920 watt
Fuentes instaladas	2
Fuentes soportadas	2
Fuente redundante	Yes
Fuente redundante soportada	1+1
Voltaje requerido	AC 100-240 volt
Dispositivos integrados	2 x fans
Encryption	AES
Humidity Range Storage	10 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Humedad de operación	10 - 90% (non-condensing)
Airflow Direction	Front to back airflow
Authentication Method	RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity	Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding performance: 254 Mpps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 344 Gbps
Ports (2nd) Quantity	16
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	14.64 lbs
Ancho	17.3 inch
Profundidad	14.6 inch
Color	Black
Estándares	CAN/CSA-C22.2 No. 62368-1, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
