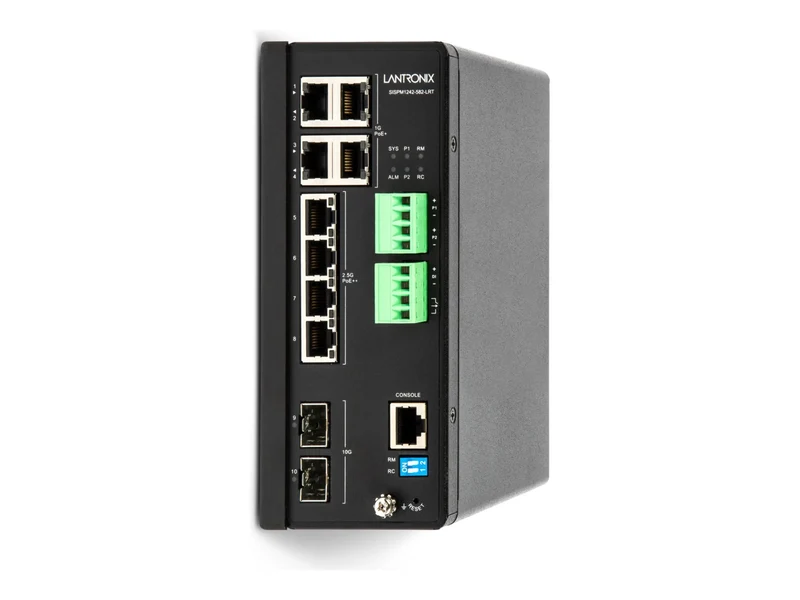

Switch de Red Lantronix SISPM1242-582-LRT

Sobre este producto

• 🔌 4 puertos 10/100/1000 PoE+ más 4 puertos 2.5G PoE++ y 2 ranuras SFP 1/10 Gigabit
• ⚡ Presupuesto PoE++ de 360 W para alimentar dispositivos de forma confiable
• 🌡️ Diseño endurecido (hardened) montable en riel DIN que opera de -40 °C a 75 °C
• 🧠 Switch administrado con hasta 4.000 entradas VLAN y 512 entradas ACL para gestión del tráfico
• 🛡️ Gestión web con soporte DHCP y cumplimiento TAA

Característica	Detalle
Marca	Lantronix
Línea de producto	Lantronix
Modelo	SISPM1242-582-LRT
Fabricante	Lantronix
Estándares	IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031, ITU-T G.8032, ITU-T Y.1731
Características	802.1x authentication, Always on PoE, Auto Power Reset (APR), Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Device Management System (DMS), DHCP relay, DHCP server, DHCP snooping, DHCP support, Dynamic routing, Firmware upgradable, Ingress Layer 2 MAC Access Control Lists (ACLs), IP source guard, Link Aggregation Control Protocol (LACP), Loop protection, MAC based VLAN, Media Redundancy Protocol (MRP), MLD snooping, MLD snooping v2, MSTP support, Multicast VLAN Registration (MVR), PoE scheduling, Port mirroring, Port rate limiting, Port Scheduling, Port Security, Port-based VLAN, Private VLAN, QinQ VLAN, Quality of Service (QoS), Secure web gateway, Spanning Tree Protocol (STP) support, Store-and-forward technology, Storm Control, Syslog support, Trunking, VLAN management, Voice VLAN, Web-based management
Form Factor (Hubs & Switches)	DIN rail mountable
Jumbo Frame Support	9KB
MAC Address Table Size	16K entries
Manageable	Yes
PoE Budget	360 watt
Ports	10
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	CLI, DHCP, IPv4, IPv6, RADIUS, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, TACACS+, TLS
Routing Protocol	IGMP, IGMPv2, IGMPv3, OSPFv2, OSPFv3, RIP-1, RIP-2, Static IP routing
Status Indicators	Alarm, Port status, Power 1, Power 2, System
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
QSFP Slots	1/10 Gigabit SFP
Interfaces	1 x console RJ-45 management, 2 x 1/10Gbit LAN SFP, 4 x 10/100/1000 Base-T RJ-45 PoE+, 4 x 100/1000/2.5G RJ-45 PoE++
Port Quantity	4
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	100/1000/2.5G (PoE++)
Power Consumption Operational	13 watt
Voltaje requerido	DC 52 - 57 volt
Temp. máx. de operación	167 degree Fahrenheit
Temp. mín. de operación	-40 degree Fahrenheit
Capacity	ACL entries: 512, VLAN entries: up to 4000
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Switching capacity: 68 Gbps
Ports (2nd) Quantity	4
Ports (3rd) Quantity	2
Service Activation	No
Accesorios incluidos	DIN-rail bracket
Alto	6.6 inch
Ancho	2.4 inch
Profundidad	5.1 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TAA Compliant	Yes
TCO Certified	No
