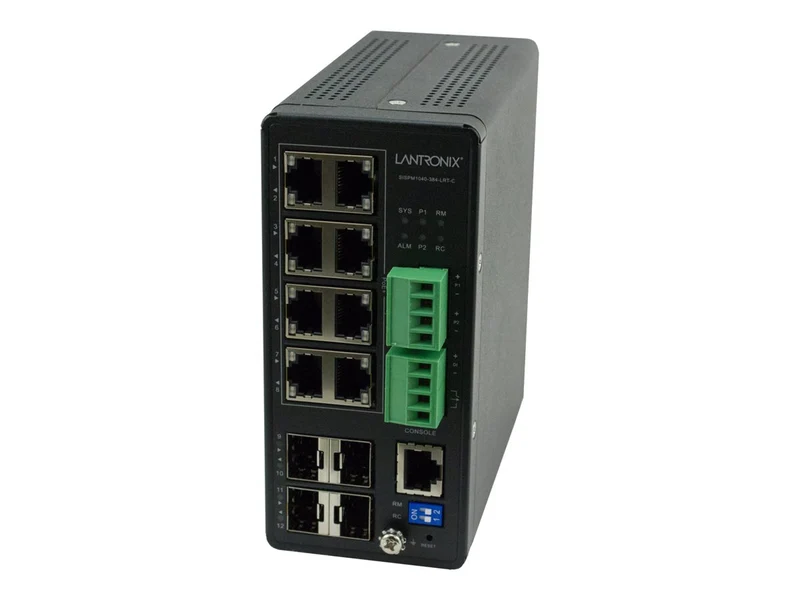

Switch de Red Lantronix SISPM1040-582-LRT

Sobre este producto

• 🛡️ Switch PoE++ endurecido (hardened) para conectar y alimentar dispositivos en entornos exigentes
• 🔌 8 puertos 10/100/1000 PoE++ más 2 ranuras SFP de doble velocidad 100/1000 Mb/s
• ⚡ Hasta 90 W por puerto en 4 puertos o 60 W por puerto en los 8 puertos simultáneamente
• 🛠️ Software Device Management System (DMS) integrado para gestión total de dispositivos IP direccionables
• 🔁 Rapid Ring para recuperación rápida y arquitectura Store-and-forward

Característica	Detalle
Marca	Lantronix
Línea de producto	Lantronix
Modelo	SISPM1040-582-LRT
Fabricante	Transition Networks
Estándares	IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ag, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8032, ITU-T Y.1731
Características	Auto Power Reset (APR), Built-in DIP switch, Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Device Management System (DMS), DHCP client, DHCP Option 82, DHCP relay, DHCP server, DHCP support, DSCP Marking, Ethernet Protection Switched Ring (EPSRing), Ethernet Ring Protection Switching (ERPS), Fanless, Floor plan view, GVRP, Hardened, IP address filtering, IP source guard, IPv4 and IPv6 dual stack, LLDP support, Loop protection, MAC based VLAN, Media Redundancy Protocol (MRP), Over-current protection, PoE scheduling, Port based access control, Port mirroring, Precision Time Protocol (PTP), Private VLAN Edge (PVE), Q-in-Q tunneling, Quality of Service (QoS), Reset button, Reverse polarity protection, Secure Copy (SCP), SNMP trap, Static routing, Store-and-forward technology, Syslog support, Topology view, VLAN ID filtering, VLAN management, Voice VLAN, Wall mountable, Watch Dog Timer (WDT), Web-based management
Form Factor (Hubs & Switches)	DIN rail mountable
Jumbo Frame Support	9KB
MAC Address Table Size	8K entries
Manageable	Yes
PoE Budget	480 watt
Ports	8
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	CLI, HTTPS, SCP, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, TCP/IP, Telnet, UDP, Web GUI
Routing Protocol	IGMP, IGMPv2, IGMPv3, Static IP routing
Status Indicators	Alarm, Coupling, Polarity, Port status, Power 1, Power 2, Ring master, System
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x console RJ-45 management, 2 x 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE++ - 60 W
Port Quantity	8
Port Type	10/100/1000 (PoE++)
Ports Type (2nd)	1000Base-X SFP
Power Consumption Operational	13 watt
Voltaje requerido	DC 52 - 57 volt
Temp. máx. de operación	167 degree Fahrenheit
Temp. mín. de operación	-40 degree Fahrenheit
MTBF	82,976 Hours
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity	Queues: 8
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Backplane switching capacity: 20 Gbps
Ports (2nd) Quantity	2
Accesorios incluidos	DIN-rail bracket
Alto	5.3 inch
Ancho	2.4 inch
Profundidad	5.1 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TAA Compliant	Yes
TCO Certified	No
