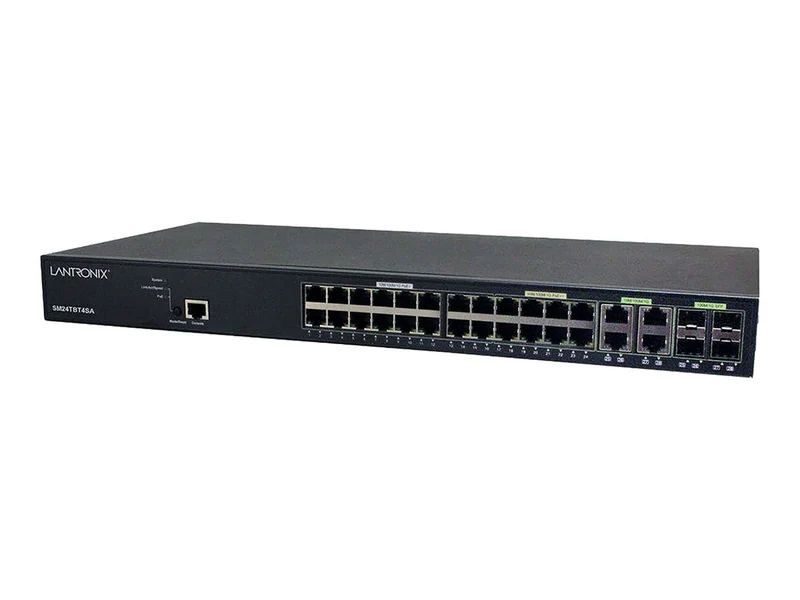

Switch de Red Lantronix

Sobre este producto

• 🌐 Switch de Red Lantronix: para redes cableadas de oficina y datacenter.
• ✅ The Lantronix SM24TBT4SA is designed for high-performance networking with its 24 1000Base-T ports
• ✅ With a switching capacity of 56 Gbps and a forwarding capacity of 41.7 Mpps, this network switch efficiently handles heavy traffic loads
• ✅ It supports VLAN management with up to 4096 VLAN IDs, ensuring secure and efficient network segmentation
• ✅ Operating in a wide temperature range of -10°C to 50°C and with storage capabilities from -20°C to 70°C, it offers reliability in various environmental conditions
• ✅ Furthermore, features such as traffic monitoring, port security, and loop protection safeguard the integrity and performance of your network

Característica	Detalle
Marca	Lantronix
Línea de producto	Lantronix
Fabricante	Lantronix
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	ACL support, Always on PoE, Auto Power Reset (APR), Command-line interface (CLI) management, Device Management System (DMS), DHCP relay, DHCP server, DHCP snooping, Dual image support, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP querier, IGMP snooping, Ingress rate limiting, IP source guard, IP subnet-based VLANs support, IPv6 management, Link Aggregation Control Protocol (LACP), LLDP support, Loop protection, MAC based VLAN, MDI/MDI-X switch, PoE scheduling, Port mirroring, Port Security, Port-based VLAN, Private VLAN Edge (PVE), Q-in-Q tunneling, Quality of Service (QoS), Storm Control, Syslog support, Tagged VLAN, Topology view, Traffic monitoring, VLAN management, Voice VLAN, Web GUI management portal, Web-based management, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)	Desktop, Rack-mountable
Jumbo Frame Support	9216 bytes
MAC Address Table Size	8K entries
Manageable	Yes
PoE Budget	740 watt
Ports	24
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	HTTP, HTTPS, RADIUS, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, TACACS+, Telnet, TFTP
Routing Protocol	IGMP, MLD, MLDv2, STP
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	24 x 1000Base-T RJ-45 90 W, 4 x 1000Base-X RJ-45/SFP
Port Quantity	24
Port Type	10/100/1000 (PoE++)
Ports Type (2nd)	Combo Gigabit SFP
Frequency	50/60 hertz
Fuentes instaladas	1
Voltaje requerido	AC 100-240 volt
Encryption	SSL
Humidity Range Storage	10 - 90% (non-condensing)
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	14 degree Fahrenheit
Min Storage Temperature	-4 degree Fahrenheit
MTBF	152,962 Hours
Humedad de operación	10 - 90% (non-condensing)
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity	VLAN IDs: 4096
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding capacity: 41.7 Mpps, Switching capacity: 56 Gbps
Ports (2nd) Quantity	4
Service Activation	No
Alto	1.7 inch
Weight	6.61 lbs
Ancho	17.4 inch
Profundidad	8.3 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TAA Compliant	Yes
TCO Certified	No
