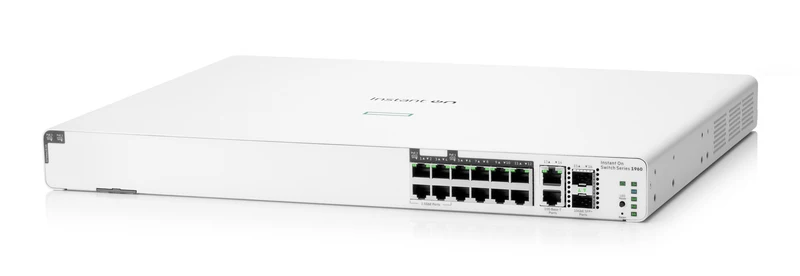

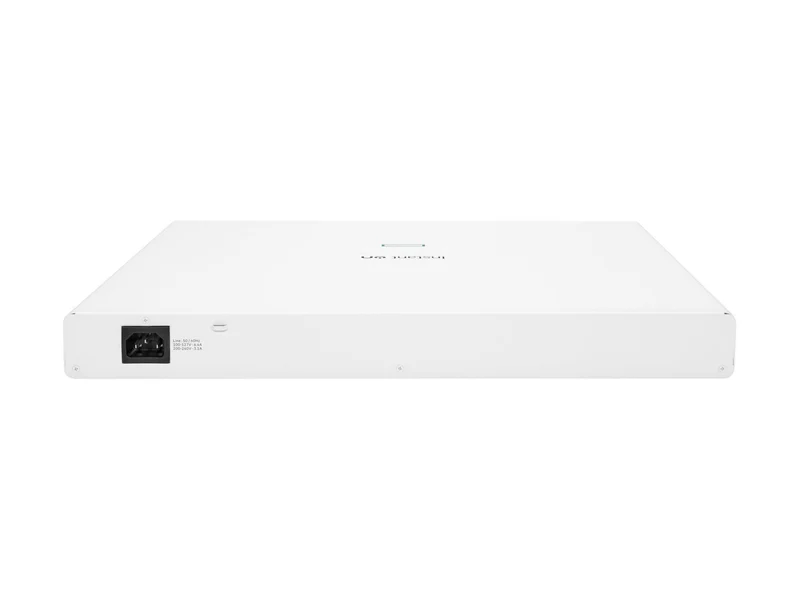

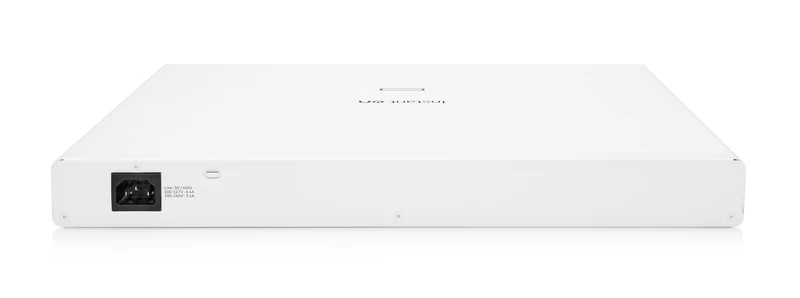

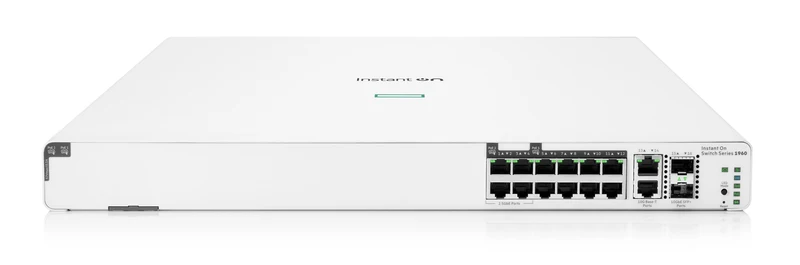

Switch de Red HPE Networking Instant On 1960

Sobre este producto

• 🧠 Switch smart-managed Gigabit apilable (stackable) para empresas pequeñas en crecimiento
• 🔌 4x 2.5GBase-T + 8x 100/1000/10GBase-T + 2x 100/1000/10GBase-T + 2x 10 Gigabit SFP+
• ⚡ Presupuesto PoE de 480 W para aplicaciones de alto ancho de banda como voz y videoconferencia
• 📊 Opciones de gestión flexibles: GUI web local, app Instant On o portal web en la nube
• 🗄️ Diseñado para escalar con el negocio, formato rack-mountable

Característica	Detalle
Marca	HPE
Línea de producto	HPE Networking Instant On
Modelo	1960
Fabricante	Aruba Instant On
Velocidad de reloj	800 megahertz
Marca del procesador	ARM
Número de procesador	CortexTM A9
Procesadores instalados	1
Flash Memory Installed	512 megabyte
Tecnología de memoria	DDR3 SDRAM
RAM instalada	1 GB
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u
Características	Access Control List (ACL) support, ARP support, Auto voice VLAN, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Class of Service (CoS), DHCP support, Energy-Efficient Ethernet (EEE), Flow control, Full duplex mode, Half duplex mode, IPv6 support, Link Aggregation Control Protocol (LACP), Media Endpoint Discovery (LLDP-MED), Port mirroring, Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), VLAN support
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9216 bytes
MAC Address Table Size	16000 entries
Manageable	Yes
PoE Budget	480 watt
Ports	16
Power Over Ethernet (PoE)	PoE
Tipo de producto	Switch
Gestión remota	HTTP, HTTPS, RADIUS, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol	Static IP routing
Stackable	Stackable
Subcategory	Network hubs and switches
QSFP Slots	100/1000/10GBase-T
Interfaces	2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+, 2 x 10/100/1000 Base-T, 4 x 1/2.5G (PoE+) RJ-45 480 W, 8 x 10/100/1000 Base-T (PoE) RJ-45 480 W
Port Quantity	4
Port Type	2.5GBase-T
Ports Type (2nd)	100/1000/10GBase-T
Frequency	50/60 hertz
Voltaje requerido	AC 100-240 volt
Humidity Range Storage	15 - 90% (non-condensing)
Temp. máx. de operación	104 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	40.8 Year
Humedad de operación	15 - 95% (40 °C)
Authentication Method	RADIUS
Capacity	IPv4 routes (static): 512, IPv6 routes (static): 512, MAC address entries: 16000, Routing table entries (static): 992
País	United States
Device Type	Internal power supply
Localization	English
Cantidad por empaque	1
Performance	Latency (1 Gbps): 1.8 µs, Latency (10 Gbps): 2.8 µs, Latency (100 Mbps): 4.1 µs, Latency (2.5 Gbps): 6.7 µs, Switching capacity: 116 Gbps, Throughput: 172 Mbps
Ports (2nd) Quantity	8
Ports (3rd) Quantity	2
Ports (4th) Quantity	2
Ports (4th) Type	10 Gigabit SFP+
Service Activation	No
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	11.55 lbs
Ancho	17.4 inch
Profundidad	13.8 inch
Color	White
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
