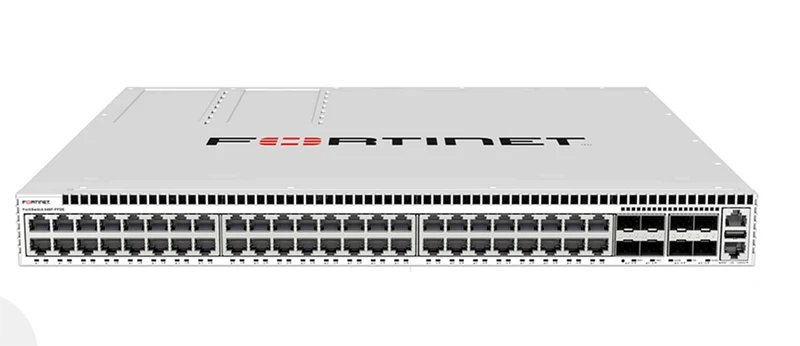

Switch de Red Fortinet FortiSwitch 648F-FPoE Layer 2/3 FortiGate Switch Controller

Sobre este producto

• ⚡ Capacidad de conmutación de 720 Gbps y 1071 Mpps: flujo de datos y conectividad de alta velocidad sin interrupciones.
• 🔌 PoE++ 802.3bt con salida máxima de 1800 W: energía abundante para dispositivos exigentes.
• 🔢 32x 2.5G RJ-45 + 16x 5G RJ-45 + 8x 25G SFP28 con MACSec: conectividad multigigabit de alto rendimiento.
• 🔒 Layer 3, QoS, VLAN hasta 4000, 802.1x y ACL: control de acceso por rol y dispositivo con micro-segmentación dinámica.
• ☁️ Zero-touch Deployment con FortiLink: despliegue y gestión simplificados.
• 🛡️ MTBF superior a 10 años: rendimiento confiable en data center, oficina o entornos industriales.

Característica	Detalle
Marca	Fortinet
Línea de producto	Fortinet FortiSwitch
Modelo	648F-FPOE
Fabricante	Fortinet
Flash Memory Installed	32 megabyte
Tecnología de memoria	DDR4 SDRAM
RAM instalada	4 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	802.1x authentication, Access Control List (ACL) support, ARP inspection, Auto-negotiation, Automatic Media-Dependent Interface Crossover (MDIX), Automatic topology detection, DHCP relay, DHCP server, DHCP snooping, Encapsulated Remote SPAN (ERSPAN), FTP support, High Availability, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IP-MAC binding, Loop Guard, MAC Access Bypass (MAB), MAC black/whitelist, MACsec support, Media Dependent Interface (MDI), MLD proxy, MLD querier, MLD snooping, Network Access Control (NAC), Port mirroring, Port trunking, Precision Time Protocol (PTP), Private VLAN, Quality of Service (QoS), RA guard, Rapid PVST (RPVST), Remote Switch Port Analyzer (RSPAN), sFlow, SNTP support, SPAN mode, Storm Control, STP BPDU Guard, STP Root Guard, Time Domain Reflectometry (TDR), VLAN / port mapping, VLAN support, Wake On LAN (WOL)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	Yes
MAC Address Table Size	64K entries
Manageable	Yes
PoE Budget	1800 watt
Ports	48
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, Telnet, TFTP
Routing Protocol	BGP, Bidirectional Forwarding Detection (BFD), ECMP, IGMP, IS-IS, MLD, MSTP, OSPF, OSPFv2, PIM-SSM, Policy-based routing (PBR), RIP-2, URPF, VRRP
Status Indicators	Alarm, Fan, Link/activity/speed, PoE activity, Power
Subcategory	Network hubs and switches
Switching Type	5 Gigabit Ethernet
QSFP Slots	10 Gigabit / 25 Gigabit SFP+ / SFP28
Interfaces	1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 16 x 100/1000/2.5G/5GBase-T RJ-45, 32 x 1/2.5GBase-T RJ-45 PoE++ - 90 W, 8 x 1/10/25GBase-X SFP28/SFP+
Port Quantity	32
Port Type	10/100/1000/2.5G (PoE++)
Ports Type (2nd)	100/1000/2.5G/5G
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Potencia	1200 watt
Fuentes instaladas	2
Fuentes soportadas	2
Fuente redundante	Yes
Voltaje requerido	AC 100-240 volt
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	>10 Year
Humedad de operación	5 - 95% RH (non-condensing)
Airflow Direction	Front to back airflow
Authentication Method	Extensible Authentication Protocol (EAP), RADIUS
Capacity	ACL: 36000, Host IPv4 routes: 192000, IP multicast entries: 12000, IPv4 routing entries: 16000, Link aggregation groups: 56, Packet buffer size: 8 MB, Spanning Tree Protocol instances: 32, Virtual interfaces (VLANs): 4000
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Latency: < 1 µs, Packets per second: 1071 Mpps, Switching capacity: 720 Gbps
Ports (2nd) Quantity	16
Ports (3rd) Quantity	8
Rack Mounting Kit	Included
Cables	1 x USB to RJ-45 console cable, 2 x AC power cable
Accesorios incluidos	4 rubber feet
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	17.27 lbs
Ancho	17.3 inch
Profundidad	13.8 inch
Color	White
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
