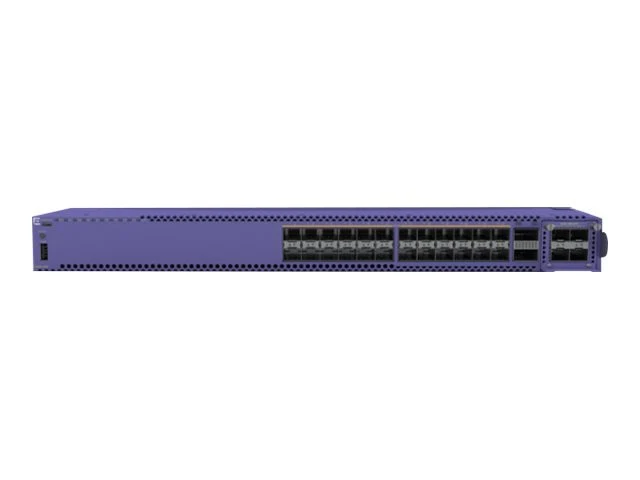

Switch de Red Extreme Networks ExtremeSwitching 5520 series 5520-24X

Sobre este producto

• 🌐 Switch de Red Extreme Networks ExtremeSwitching 5520 series 5520-24X: para redes cableadas de oficina y datacenter.
• ✅ The ExtremeSwitching 5520 Series is a family of high-performance, feature-rich edge and aggregation switches designed for the next-generation digital enterprise
• ✅ The 5520 Series universal hardware provides end-to-end secure network segmentation, in addition to advanced policy capabilities
• ✅ This makes the 5520 a uniquely flexible platform that can be deployed across a range of edge, aggregation and wiring-closet environments

Característica	Detalle
Marca	Extreme Networks
Línea de producto	Extreme Networks ExtremeSwitching 5520 series
Modelo	5520-24X
Fabricante	EXTREME NETWORKS
Estándares	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz
Características	2 fan modules, Auto-sensing per device, Energy-Efficient Ethernet (EEE), Full duplex mode, Half duplex mode, Media Access Control Security (MACsec)
Form Factor (Hubs & Switches)	Rack-mountable
Manageable	Yes
Max Units In A Stack	8
Ports	24
Tipo de producto	Switch
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x Versatile Interface Module (VIM)
Interfaces	1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device QSFP28 stacking, 2 x USB Type A, 24 x 10GBase-X SFP+
Port Quantity	24
Port Type	10 Gigabit SFP+
Hot-Plug	Hot-plug
Fuentes soportadas	2
Fuente redundante	Optional
Humidity Range Storage	10 - 95% (non-condensing)
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	10 - 95% (non-condensing)
Airflow Direction	Front to back airflow
Capacity	Authenticated policy users/switch: 9216, BEB nodes per VSN: 500, Fabric adjacencies per switch: 128, Fabric nodes per area (BEB + BCB): 800, L2 VSN: 3500, L3 VSN: 256, Policy profiles: 63, Unique permit/deny rules per switch: 8120
Device Type	Internal power supply (not installed)
Cantidad por empaque	1
Performance	Aggregate switching bandwidth: 1.08 Tbps, Forwarding performance: 803.5 Mpps
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	13.78 lbs
Ancho	17.4 inch
Profundidad	17.4 inch
Color	Purple
Certificado ENERGY STAR	No
Cumple EPEAT	No
TAA Compliant	Yes
TCO Certified	No
