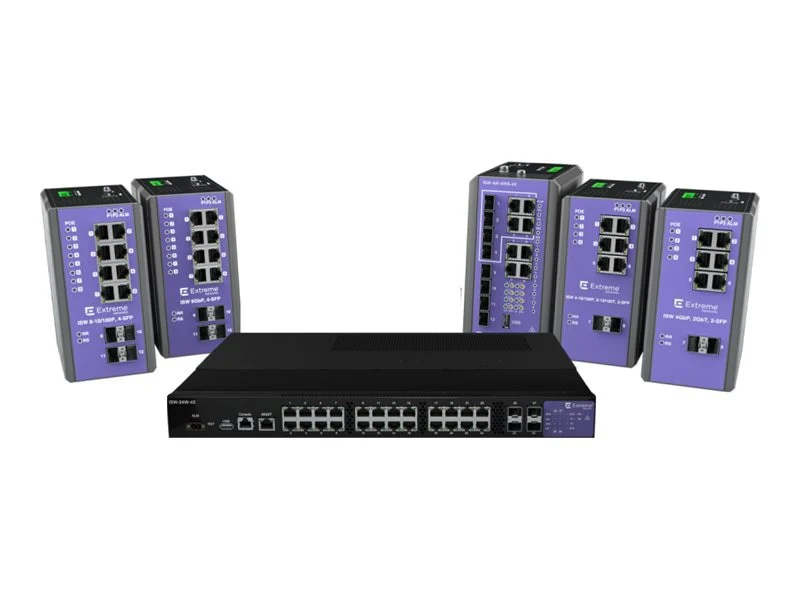

Switch de Red Extreme Networks 28-Port 10/100/1000Base-T Ethernet Switch

Sobre este producto

• 🏭 Switch Layer 2 ruggedizado para entornos severos y temperaturas extendidas
• 🔌 28 puertos 10/100/1000Base-T para conectividad amplia
• 🔄 Tecnología de anillo redundante para redes tolerantes a fallos con alta disponibilidad
• 🌐 Conexión automática a red Fabric Connect vía Fabric Attach
• 🏙️ Ideal para transporte inteligente, utilities y smart cities

Característica	Detalle
Marca	Extreme Networks
Línea de producto	Extreme Networks ExtremeSwitching
Modelo	ISW-24W-4X
Fabricante	EXTREME NETWORKS
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, ITU-T G.8032
Características	802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Back Pressure Support, Broadcast Storm Control, Class of Service (CoS), DHCP client, DHCP relay, DHCP server, DHCP snooping, Digital Diagnostics Monitoring Interface (DDMI), DNS support, Dynamic VLAN Support (GVRP), Energy-Efficient Ethernet (EEE), Ethernet Ring Protection Switching (ERPS), Fanless, Flooding Storm Control, Flow control, Full duplex mode, Half duplex mode, IGMP querier, IGMP snooping, IP subnet-based VLANs support, Link Aggregation Control Protocol (LACP), Loop protection, MAC address authentication, MAC based VLAN, Multicast Storm Control, PoE scheduling, Port Scheduling, Port-based VLAN, Protocol-based VLANs support, Quality of Service (QoS), Storm Control, Strict Priority (SP), Support Fabric Attach, Tag-based VLANs, Traffic shaping, VLAN Double Tagging (Q-in-Q), Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)	Rack-mountable
MAC Address Table Size	32000 entries
Manageable	Yes
PoE Budget	720 watt
Ports	28
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, MIB, NTP, RADIUS, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SFTP, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, Telnet
Routing Protocol	IGMP, IGMPv2, IGMPv3, MSTP, RSTP, STP
Status Indicators	Link/activity, Power, System
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x 10/100/1000 Base-T RJ-45 out-of-band network management, 1 x console RJ-45, 1 x USB 2.0 Type A, 4 x 10/100/1000 Base-T RJ-45 PoE+ - 90 W, 4 x 10GBase-X SFP+
Port Quantity	24
Port Type	10/100/1000Base-T
Ports Type (2nd)	10 Gigabit SFP+ (uplink)
Electric Current Required	15 A
Fuente redundante	Yes
Voltaje requerido	DC 46 - 57 volt
Temp. máx. de operación	167 degree Fahrenheit
Max Storage Temperature	185 degree Fahrenheit
Temp. mín. de operación	-40 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	>25 Year
Humedad de operación	5 - 95% RH (non-condensing)
Authentication Method	Extensible Authentication Protocol (EAP), RADIUS, TACACS+
Capacity	Access control entries: 256, ARP table: 2000, IGMP groups: 1024, IGMP multicast groups: 1000, IP interfaces: 20, IPv4 routes: 64, Port mirroring groups: 7, Queues per port: 8, VLAN IDs: 4094, VLANs supported: 2000
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Aggregate bandwidth: 128 Gbps, Forwarding rate: 95.2 Mpps
Ports (2nd) Quantity	4
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	12.57 lbs
Ancho	17.3 inch
Profundidad	15 inch
Color	Black
