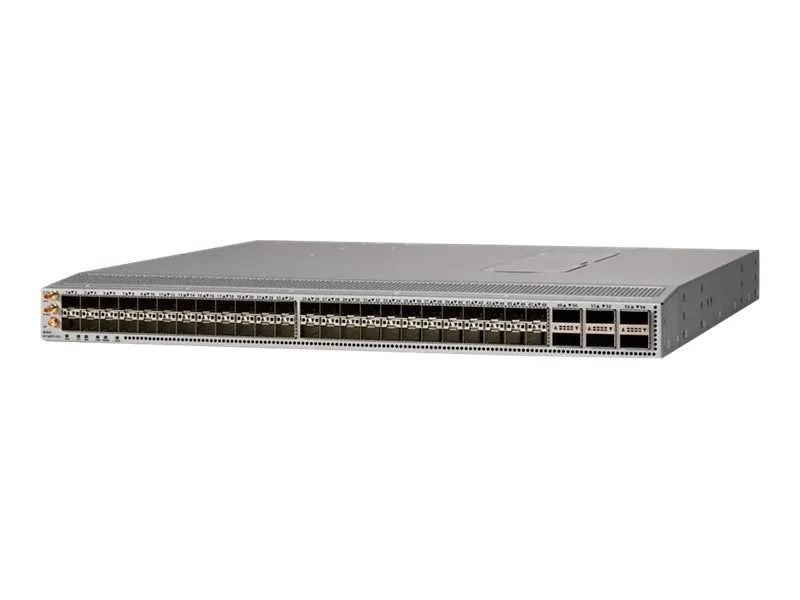

Switch de Red Cisco Nexus 93180YC-FX3

Sobre este producto

• ⚡ 3.6 Tbps de ancho de banda y 1.2 bpps: switch Cisco Nexus 93180YC-FX3 de altísimo rendimiento en formato 1RU.
• 🔢 48 puertos downlink 1/10/25 Gbps + 6 uplinks 40/100 Gbps QSFP28: flexibilidad de despliegue y protección de la inversión.
• 🛠️ Administrable y Layer 3 (L3): opciones de migración flexibles con enlaces de subida configurables.
• 🕐 Soporte de PTP Telecom con SyncE y boundary clock: para entornos de borde de data center Telco.
• 🗄️ Montable en rack: pensado para el data center.

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Nexus
Modelo	93180YC-FX3
Fabricante	Cisco Systems
RAM instalada	32 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ae, ITU-T G.8275.1
Características	4 fans, Access Control List (ACL) support, Approximate Fair Dropping (AFD), Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Dynamic Packet Prioritization (DPP), Elephant Trap (ETRAP), Enhanced transmission selection (ETS), Ethernet Virtual Private Network (EVPN), Explicit Congestion Notification (ECN), Flow control, Media Access Control Security (MACsec), NAT support, Precision Time Protocol (PTP), Priority-Based Flow Control (PFC), RDMA support, Switched Port Analyzer (SPAN), Synchronous Ethernet (SyncE), Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology, VXLAN tunnel endpoints (VTEP) support
Form Factor (Hubs & Switches)	Rack-mountable
MAC Address Table Size	512K entries
Manageable	Yes
Ports	48
Tipo de producto	Switch
Gestión remota	CLI, HTTP, HTTPS, IPv6, JSON, NETCONF, RESTCONF
Routing Protocol	BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2, RSVP
Subcategory	Network hubs and switches
Switching Type	25 Gigabit Ethernet
Interfaces	1 x management RJ-45, 1 x serial (RS-232), 1 x ToD RJ-45, 1 x USB, 48 x 1/10/25GBase-X SFP+, 6 x 40/100GBase-X QSFP28
Port Quantity	48
Port Type	1/10/25 Gigabit SFP+
Ports Type (2nd)	40/100 Gigabit QSFP28
Hot-Plug	Hot-plug
Power Consumption Operational	375 watt
Fuentes soportadas	2
Fuente redundante	Optional
Fuente redundante soportada	N+1
Dispositivos integrados	128 GB SSD
Temp. máx. de operación	104 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	288,760 Hours
Humedad de operación	5 - 95% (non-condensing)
Capacity	ACL entries (egress): 2000, ACL entries (ingress): 5000, Buffer capacity (MB): 40, ECMP paths: 64, Fabric extenders per switch: 16, Flow-table size used for Cisco Tetration Analytics platform: 64000, HSRP groups: 490, IGMP snooping groups (maximum): 32000, IGMP snooping groups (shipping): 8000, IP host entries: 1792000, Longest prefix match (LPM) routes: 1792000, Maximum number of links in a port channel: 32, MST instances: 64, Multicast routes: 128000, NAT entries: 1023, Port channels: 512, Queues: 8, RPVST instances: 3967, SPAN sessions: 4, VLANs supported: 4096, VRF instances (maximum): 16000, VRF instances (shipping): 1000
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Bandwidth: 3.6 Tbps
Ports (2nd) Quantity	6
Alto	1.7 inch
Weight	20.99 lbs
Ancho	17.3 inch
Profundidad	19.5 inch
Color	Gray
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
