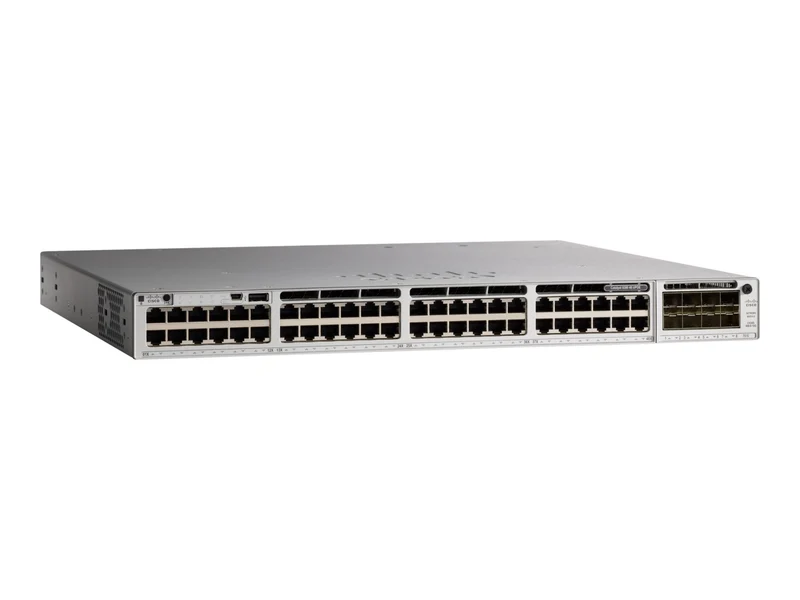

Switch de Red Cisco Meraki Catalyst 9300-48U

Sobre este producto

• 💪 48 puertos 10/100/1000 con UPOE y presupuesto de 822 W para aplicaciones exigentes
• 🔀 Switching Layer 3 (L3) combinado con la simplicidad del dashboard Meraki
• 🚀 480G de stacking y uplinks modulares de 10/40G para access points Wi-Fi 6 de alta velocidad
• 🛡️ Adaptive Policy que segmenta el tráfico en grupos de seguridad escalables
• 🗄️ Formato gestionable y montable en rack, con StackPower para mayor resiliencia

Característica	Detalle
Marca	Cisco Meraki
Línea de producto	Cisco Meraki Catalyst
Modelo	9300-48U
Fabricante	Meraki
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3bt
Características	Access Control List (ACL) support, Adaptive policy, Broadcast Storm Control, Cisco Discovery Protocol (CDP), Cisco StackPower technology, DHCP relay, DHCP server, DHCP snooping, DSCP to CoS Mutation, Dynamic ARP Inspection (DAI), Firmware upgradable, Hot swappable 3 fans, MAC Access Bypass (MAB), Network diagnostics, Per-VLAN Spanning Tree (PVST), Port mirroring, Protocol Independent Multicast (PIM), Push notification, Quality of Service (QoS), Rapid PVST (RPVST), Role-Based Access Control (RBAC), Sticky MAC, STP BPDU Guard, STP loop guard, STP Root Guard, Uni-Directional Link Detection (UDLD), Usage statistics, VLAN support, VLAN trunking, Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches)	Rack-mountable
MAC Address Table Size	32000 entries
Manageable	Yes
Max Units In A Stack	8
PoE Budget	822 watt
Ports	48
Power Over Ethernet (PoE)	UPOE
Tipo de producto	Switch
Gestión remota	DHCP, IPv4, IPv6, SNMP, Syslog
Routing Protocol	IGMP, MSTP, OSPFv2, RSTP, Static IP routing, STP, VRRP
Stackable	Stackable
Status Indicators	Status
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x expansion slot
Interfaces	1 x management, 1 x USB Type A, 1 x USB Type B console, 2 x network stack device, 48 x 1000Base-T RJ-45 UPOE - 60 W
Port Quantity	48
Port Type	10/100/1000 (UPOE)
Frequency	50 - 60 hertz
Hot-Plug	Hot-plug
Potencia	1100 watt
Fuentes instaladas	1
Fuentes soportadas	2
Fuente redundante	Optional
Voltaje requerido	AC 100-240 volt
Certificación 80 PLUS	80 PLUS Platinum
Dispositivos integrados	3 x fans
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	23 degree Fahrenheit
Min Storage Temperature	-4 degree Fahrenheit
MTBF	227,410 Hours
Humedad de operación	5 - 90%
Authentication Method	RADIUS
Capacity	Member ports per aggregated link: up to 8, QoS queues: 8, VLANs with trunking: 4094
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding rate: 190.48 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 256 Gbps
Rack Mounting Kit	Included
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	17.02 lbs
Ancho	17.5 inch
Profundidad	19.2 inch
Color	Gray
