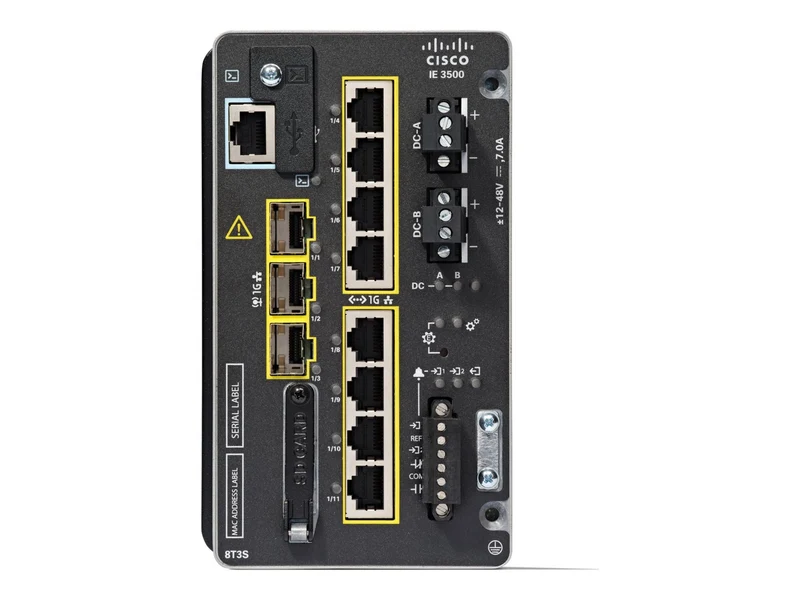

Switch de Red Cisco IE3500 Rugged Series IE-3500-8T3S

Sobre este producto

• 🌐 Switch de Red Cisco IE3500 Rugged Series IE-3500-8T3S: para redes cableadas de oficina y datacenter.
• ✅ The Cisco IE3500 Rugged Series IE-3500-8T3S is built for reliability and performance in demanding environments
• ✅ With the ability to support up to 8 active VLANs and 128 VLAN IDs, it ensures efficient network segmentation
• ✅ A total of 7000 unicast MAC addresses and 24000 indirect IPv4 routes allow for large-scale deployment while maintaining performance
• ✅ The device operates in extreme conditions with a temperature range from -40°C to 75°C and boasts an MTBF of 518.889 hours for long-term reliability in the field
• ✅ Equipped with various interfaces including 10/100/1000 Base-T and USB-C, this switch provides versatile connectivity options to meet different network requirements
• ✅ Its fanless design helps to maintain a low operational noise level, making it suitable for a variety of settings

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco IE3500 Rugged Series
Modelo	IE-3500-8T3S
Fabricante	Cisco Systems
Flash Memory Installed	5.1 GB
RAM instalada	8 GB
Advanced Switching	Layer 3
Estándares	IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbu, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3br, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	BPDU Guard, Cisco Discovery Protocol (CDP), DHCP server, DHCP snooping, Dynamic ARP Inspection (DAI), EtherChannel support, Fanless, Flexible NetFlow (FNF), Guest VLAN, IGMP filtering, IGMP querier, IP source guard, Media Access Control Security (MACsec), Media Redundancy Protocol (MRP), Multiple Registration Protocol (MRP), Per-VLAN Spanning Tree Plus (PVST+), Port Aggregation Protocol (PAgP) support, Precision Time Protocol (PTP), PROFINET, Q-in-Q tunneling, Quality of Service (QoS), Resilient Ethernet Protocol (REP), Secure Boot, Secure Unique Device Identification (SUDI), Switched Port Analyzer (SPAN), Syslog support, Time-Sensitive Networking (TSN) Frame-Preemption, Unidirectional Link Detection (UDLD), VLAN Trunking Protocol (VTP) v.2, VLAN Trunking Protocol (VTP) v.3, Voice VLAN
Form Factor (Hubs & Switches)	DIN rail mountable
Jumbo Frame Support	9198 bytes
MAC Address Table Size	24K entries
Manageable	Yes
Ports	11
Tipo de producto	Switch
Gestión remota	BOOTP, DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, MIB, NETCONF, NTP, RESTCONF, RMON, SCP, SNMP 1, SNMP 2, SNMP 3, Syslog, Telnet, TFTP, YANG
Routing Protocol	BGP-6, IGMP, IGMPv2, IGMPv3, MLD, MSTP, OSPFv3, Policy-based routing (PBR), RIP, RSTP, Static IP routing, STP, VRF
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x SD Memory Card
Interfaces	1 x alarm output, 1 x serial (RS-232) RJ-45, 1 x USB 2.0, 1 x USB-C, 2 x alarm input, 3 x 100/1000 Base-X SFP uplink, 8 x 10/100/1000 Base-T RJ-45
Port Quantity	8
Port Type	10/100/1000
Ports Type (2nd)	1 Gigabit SFP
Electric Current Required	7 A
Power Consumption Operational	29 watt
Voltaje requerido	DC 12 - 48 volt
Dispositivos integrados	SD card reader
Temp. máx. de operación	167 degree Fahrenheit
Max Storage Temperature	185 degree Fahrenheit
Temp. mín. de operación	-40 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	518.889 Hours
Humedad de operación	5 - 95% RH (non-condensing)
Authentication Method	RADIUS, Secure Shell (SSH), TACACS+
Capacity	Access Control Lists (PACL/VACL/RACL): 1536, Active VLANs: 1024, IGMP multicast groups: 1024, Indirect IPv4 routes: 7000, Indirect IPv6 routes: 1522, Queues: 8, STP instances: 128, Unicast MAC addresses: 24000, VLAN IDs: 4096
Device Type	Internal power supply
Cantidad por empaque	1
Ports (2nd) Quantity	3
Service Activation	No
Alto	6 inch
Weight	3.9 lbs
Ancho	3.5 inch
Profundidad	5.3 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
