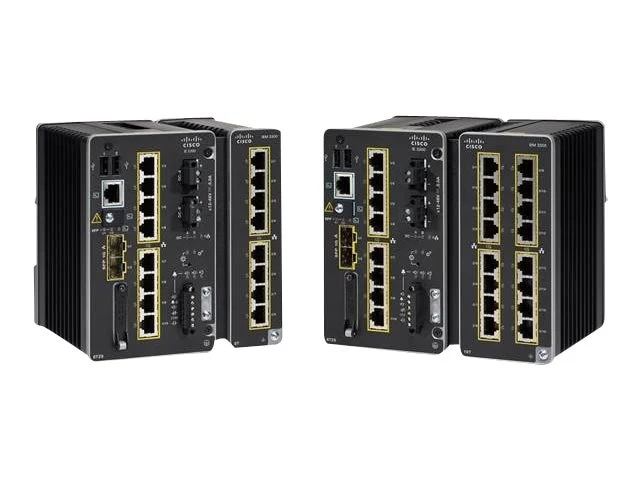

Switch de Red Cisco Catalyst IE3300 Rugged Series

Sobre este producto

• 🌐 Switch de Red Cisco Catalyst IE3300 Rugged Series: para redes cableadas de oficina y datacenter.

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	IE3300 Rugged Series
Fabricante	Cisco Systems
Flash Memory Installed	1.5 GB
RAM instalada	4 GB
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	802.1x authentication, Access Control List (ACL) support, ARP support, BOOTP support, BPDU Guard, Broadcast Storm Control, Cisco Discovery Protocol (CDP), DHCP relay, DHCP server, DiffServ support, DNS support, Dynamic ARP Inspection (DAI), EtherChannel support, Fanless, First Hop Security (FHS), Flexible NetFlow (FNF), Guest VLAN, IGMP filtering, IGMP querier, IGMP snooping, IP source guard, LACP support, LLDP support, MACsec support, Management Information Base (MIB), Media Redundancy Protocol (MRP), Modular design, Multicast Storm Control, Neighbor Discovery Protocol (NDP), Port Aggregation Protocol (PAgP) support, Port Security, Precision Time Protocol (PTP), PROFINET, Protocol Independent Multicast (PIM), Q-in-Q tunneling, Quality of Service (QoS), RA guard, Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), SmartPort technology, Static routing, Switched Port Analyzer (SPAN), Syslog support, Uni-Directional Link Detection (UDLD), Unicast Storm Control, User Datagram Protocol (UDP), Virtual Route Forwarding-Lite (VRF-Lite), VLAN Trunking Protocol (VTP) v.2, VLAN Trunking Protocol (VTP) v.3, Voice VLAN
Form Factor (Hubs & Switches)	DIN rail mountable
Jumbo Frame Support	8996 bytes
MAC Address Table Size	8000 entries
Manageable	Yes
PoE Budget	480 watt
Ports	10
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, NETCONF, NTP, RADIUS, RESTCONF, RMON, SCP, SNMP 1, SNMP 2, SNMP 3, SSH, TACACS+, Telnet, TFTP, YANG
Routing Protocol	BGP for IPv6, BGP-4, EIGRP, EIGRP for IPv6, HSRP, IGMP, IGMPv2, IGMPv3, IS-ISv4, IS-ISv6, MSDP, MSTP, OSPF, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-1, RIP-2, Static IP routing, STP, VRRP, VRRP6
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x alarm output, 1 x console (mini-USB) Type B, 1 x serial (RS-232) RJ-45, 2 x 1/10GBase-X SFP+, 2 x alarm input, 8 x 10/100/1000 Base-T RJ-45 PoE++
Port Quantity	8
Port Type	10/100/1000 (PoE++)
Ports Type (2nd)	1 Gigabit / 10 Gigabit SFP+
Fuentes soportadas	2
Fuente redundante	Optional
Dispositivos integrados	SD card reader
Temp. máx. de operación	140 degree Fahrenheit
Max Storage Temperature	185 degree Fahrenheit
Temp. mín. de operación	-40 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	436,034 Hours
Authentication Method	RADIUS, Secure Shell (SSH), TACACS+
Capacity	Access Control Lists (PACL/VACL/RACL): 1500, IGMP multicast groups: 1000, Indirect IPv4 routes: 2000, Indirect IPv6 routes: 512, Queues: 8, STP instances: 128, VLANs supported: 256
Cantidad por empaque	1
Ports (2nd) Quantity	2
Alto	6 inch
Weight	4.41 lbs
Ancho	4.4 inch
Profundidad	5.3 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
