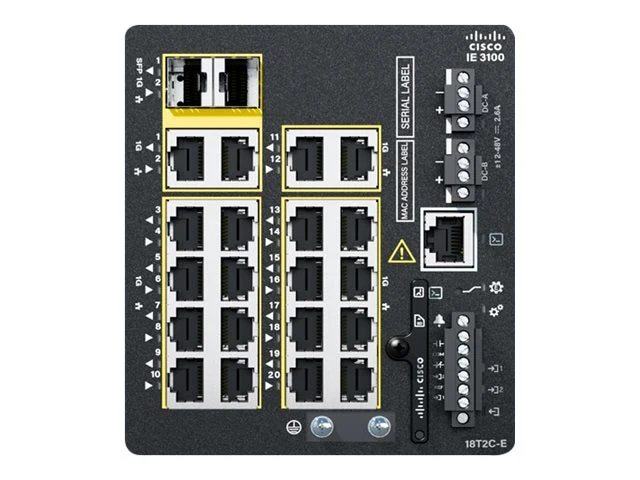

Switch de Red Cisco Catalyst IE3100 Rugged Series, IE-3100-18T2C-E

Sobre este producto

• 🔌 18 puertos 10/100/1000 más 2 combo Gigabit
• 🏭 Diseño rugged industrial para espacios reducidos
• 🔧 Montaje en riel DIN
• 🧩 Switch administrado con licencia Network Essentials

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	IE3100 Rugged Series
Edition	Network Essentials
Fabricante	Cisco Systems
RAM instalada	4 GB
Estándares	IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Características	Authentication, Authorization and Accounting (AAA), BOOTP support, CIP support, DHCP snooping, DHCPv6 guard, DiffServ support, Dynamic ARP Inspection (DAI), Embedded Event Manager (EEM), EtherChannel support, Fanless, Flow-Based SPAN (FSPAN), FTP support, IGMP snooping, IP Plug and Play (iPnP), L2TP support, Media Redundancy Protocol (MRP), MLD snooping, Network Edge Access Topology (NEAT), Per-VLAN Spanning Tree Plus (PVST+), Precision Time Protocol (PTP), PROFINET, Q-in-Q tunneling, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid PVST (RPVST), Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), Router advertisement guard, Secure Copy (SCP), Shock-resistant, Storm Control, Surge protection, Switched Port Analyzer (SPAN), TCP support, UDP support, Vibration-proof, VLAN Trunking Protocol (VTP) v.2, VLAN Trunking Protocol (VTP) v.3
Form Factor (Hubs & Switches)	DIN rail mountable
MAC Address Table Size	8000 entries
Manageable	Yes
Ports	20
Tipo de producto	Switch
Gestión remota	DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, MIB, Modbus, NETCONF, NTP, RESTCONF, RMON, SNMP, SNMP 1, SNMP 2, SNMP 3, Syslog, Telnet, TFTP, YANG
Routing Protocol	IGMP, IGMPv2, IGMPv3, Static IP routing, STP
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x SD Memory Card
Interfaces	1 x micro-USB Type B, 1 x serial (RS-232) RJ-45, 18 x 10/100/1000 Base-T RJ-45 downlink, 2 x alarm input, 2 x Gigabit LAN uplink
Port Quantity	18
Port Type	10/100/1000
Ports Type (2nd)	Combo Gigabit
Power Consumption Operational	36.7 watt
Fuentes soportadas	2
Provided Voltage	12 - 48 volt
Fuente redundante	Optional
Dispositivos integrados	SD card reader
Temp. máx. de operación	167 degree Fahrenheit
Max Storage Temperature	185 degree Fahrenheit
Temp. mín. de operación	-40 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	642,050 Hours
Humedad de operación	5 - 95% (non-condensing)
Authentication Method	RADIUS, Secure Shell (SSH), TACACS+
Capacity	IGMP groups: 512, Indirect IPv4 routes: 2000, Queues: 8, STP instances: 128, VLANs supported: 256
Device Type	External power adapter
Cantidad por empaque	1
Ports (2nd) Quantity	2
Alto	5 inch
Weight	2.8 lbs
Ancho	4.3 inch
Profundidad	5.1 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
