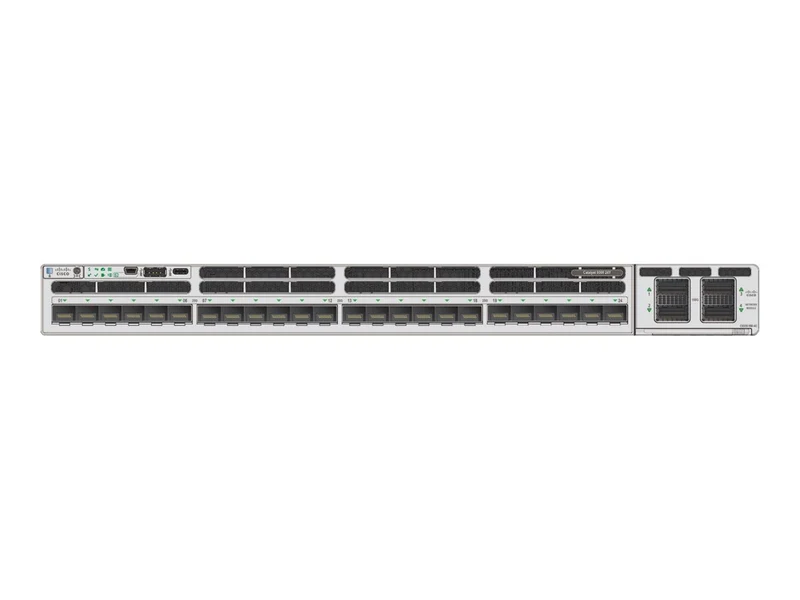

Switch de Red Cisco Catalyst 9300X, C9300X-24Y-E

Sobre este producto

• 🔌 Conectividad 24 x 1/10/25 Gigabit SFP28 de alta velocidad
• 🏢 Plataforma de switching apilable líder de acceso empresarial de Cisco
• 🧠 Switch Layer 3 gestionado con licencia Network Essentials
• 🗄️ Parte de la familia Catalyst 9000, montable en rack para redes híbridas

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	9300X
Edition	Network Essentials
Fabricante	Cisco Systems
Flash Memory Installed	16 GB
RAM instalada	16 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Características	16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-1T technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9198 bytes
MAC Address Table Size	32000 entries
Manageable	Yes
Ports	24
Tipo de producto	Switch
Gestión remota	CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol	IGMP, IS-IS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable	Stackable
Status Indicators	Status
Subcategory	Network hubs and switches
Switching Type	25 Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x expansion slot
Interfaces	1 x USB 2.0, 24 x 1/10/25GBase-X SFP28
Port Quantity	24
Port Type	1/10/25 Gigabit SFP28
Frequency	50/60 hertz
Potencia	715 watt
Encryption	256-bit AES
Humidity Range Storage	5 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	23 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	5 - 90% (non-condensing)
Capacity	ACL scale entries: 5000, Direct IPv4 routes: 24000, Flexible NetFlow entries: 128000, Indirect IPv4 routes: 15000, IPv4 routing table entries: 39000, IPv6 routing table entries: 19500, Multicast routing flow table: 8000, PVST instances: 300, QoS scale entries: 4000, Routed ports: 448, STP Virtual Ports for MST: 13000, STP Virtual Ports for PVST: 13000, Switched virtual interfaces (SVIs): 1000, VLAN IDs: 4094
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding rate with stacking: 2232 Mpps, Forwarding rate: 1488 Mpps, Switching capacity with stacking: 3000 Gbps, Switching capacity: 2000 Gbps
Alto	1.7 inch
Altura (unidades de rack)	1
Ancho	17.5 inch
Profundidad	17.6 inch
Color	Gray
Certificado ENERGY STAR	No
