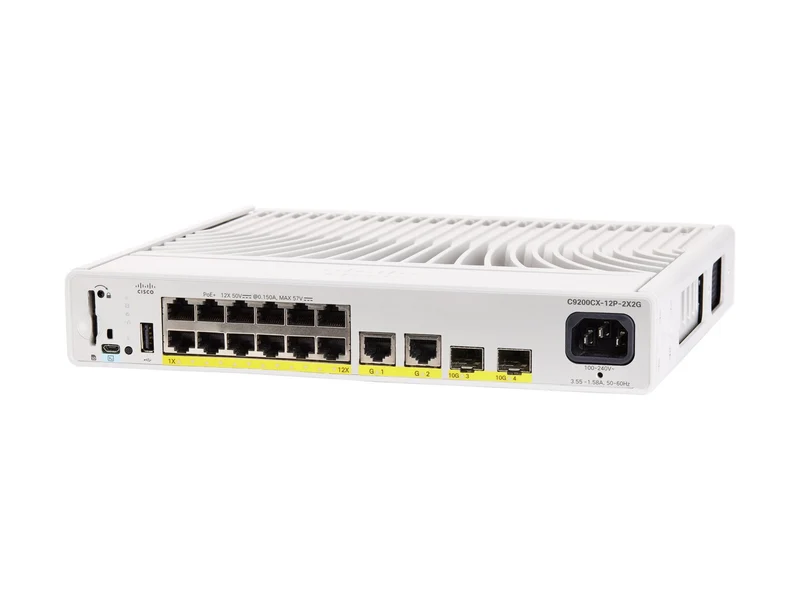

Switch de Red Cisco Catalyst 9200CX

Sobre este producto

• 🌐 Switch de Red Cisco Catalyst 9200CX: para redes cableadas de oficina y datacenter.
• ✅ The Cisco Catalyst 9200CX is secure, always on and IT simplified
• ✅ It offers simplicity without compromise and extends the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments
• ✅ This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	9200CX
Edition	Network Advantage
Fabricante	Cisco Systems
Flash Memory Installed	8 GB
RAM instalada	4 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	802.1x authentication, Access Control List (ACL) support, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Embedded Event Manager (EEM), Energy Efficient Ethernet, Fanless, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Management Information Base (MIB), NetFlow, Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Switched Port Analyzer (SPAN)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9198 bytes
MAC Address Table Size	32000 entries
Manageable	Yes
PoE Budget	240 watt
Ports	12
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, YANG
Routing Protocol	EIGRP, EIGRP for IPv6, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, VRRP
Status Indicators	Power
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x SD Memory Card
QSFP Slots	10 Gigabit SFP+ (uplink)
Interfaces	1 x console (micro-USB), 1 x USB 2.0, 12 x 1000Base-T RJ-45 PoE+ - 30 W, 2 x 1000Base-T RJ-45, 2 x 10GBase-X SFP+ uplink
Port Quantity	12
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	1000Base-T
Frequency	50/60 hertz
Potencia	310 watt
Voltaje requerido	AC 100-240 volt
Dispositivos integrados	RFID tag
Encryption	128-bit AES
Humidity Range Storage	5 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	23 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	553,140 Hours
Humedad de operación	5 - 90% (non-condensing)
Capacity	ACL scale entries: 1600, Direct IPv4 routes: 10000, Flexible NetFlow entries: 16000, Indirect IPv4 routes: 4000, IPv4 routes: 14000, IPv4 routing entries: 4000, IPv6 routing entries: 2000, Multicast scale: 1000, PVST instances: 128, QoS scale entries: 1000, STP Virtual Ports for MST: 13000, STP Virtual Ports for PVST: 13000, Virtual networks: 16, VLAN IDs: 4096
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding rate: 95.23 Mpps, Packet buffer size: 6 MB, Switching capacity: 120 Gbps
Ports (2nd) Quantity	2
Ports (3rd) Quantity	2
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	6.59 lbs
Ancho	10.6 inch
Profundidad	9.6 inch
Color	Gray
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
