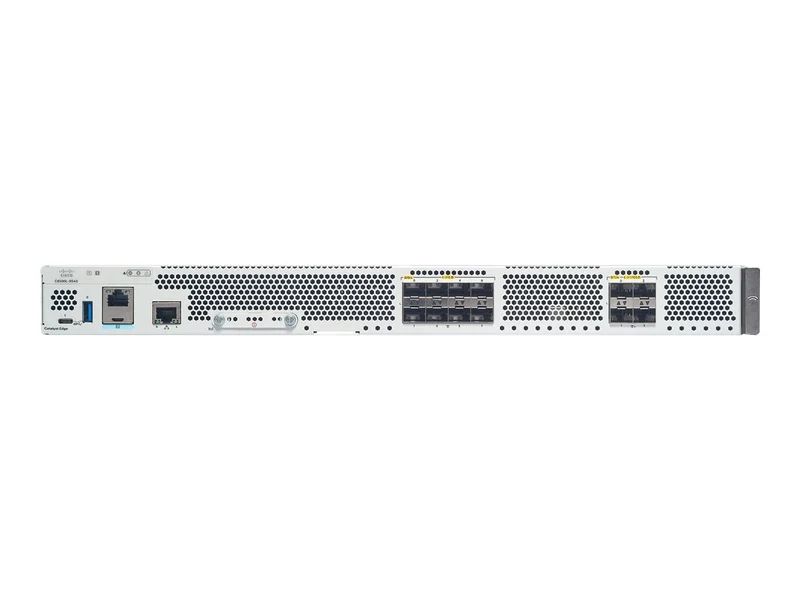

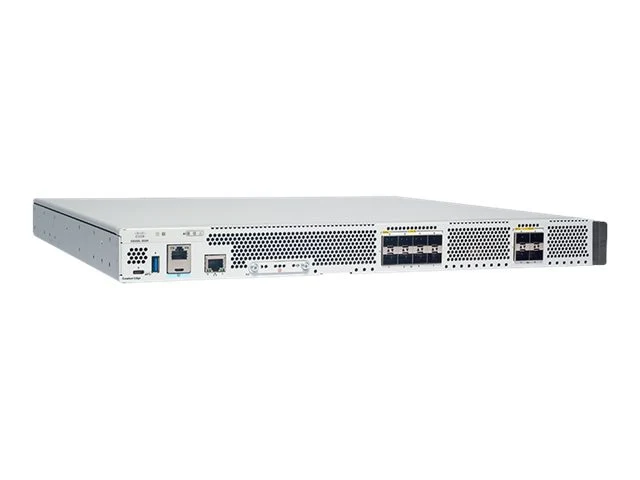

Switch de Red Cisco Catalyst 8500L-8S4X

Sobre este producto

• 🔗 4 puertos 1G/10G SFP+ más 8 puertos 1000Base-T en plataforma de borde
• ☁️ Serie Catalyst 8500 de alto rendimiento para el edge en la nube
• 🛡️ Diseñada para seguridad multicapa y servicios acelerados
• 🗄️ Formato montable en rack con agilidad cloud-native e inteligencia de borde

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	8500L-8S4X
Fabricante	Cisco Systems
RAM instalada	16 GB
Estándares	IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3ah
Características	Access Control List (ACL) support, Application Aware Routing (AAR), Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Cisco IOS IP Service-Level Agreements (IPSLA), Class-Based Weighted Fair Queuing (CBWFQ), DHCP client, DHCP relay, DHCP server, DNS client, DNS support, Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), Ethernet Virtual Connections (EVC), Firewall protection, Flexible NetFlow (FNF), Forward Error Correction (FEC), High-Level Data Link Control (HDLC), IP Security (IPSec) support, IPFIX, L2TP support, MACsec support, Multilink Point-to-Point Protocol (MLPPP), NAT support, Network-Based Application Recognition (NBAR), NTP server, Performance Routing (PfR), Point-to-Point Protocol (PPP), Quality of Service (QoS), SD-WAN support, Secure Unique Device Identification (SUDI), Syslog support, TrustSec support, Virtual Routing and Forwarding (VRF), VLAN support, VPN support, Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches)	Rack-mountable
Ports	12
Tipo de producto	Switch
Gestión remota	CLI, DHCP, IPv4, IPv6, NETCONF, NTP, OMP, RADIUS, SCP, SNMP, SSH
Routing Protocol	BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, LISP, MPLS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RSVP, Static IP routing, VRRP
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
Interfaces	1 x management RJ-45, 1 x mini-USB Type B, 1 x USB 3.0 Type A, 4 x 1/10GBase-X SFP+, 8 x 1000Base-T RJ-45
Port Quantity	4
Port Type	1 Gigabit / 10 Gigabit SFP+
Ports Type (2nd)	1000Base-T
Fuentes soportadas	2
Fuente redundante	Optional
Dispositivos integrados	32 GB SSD
Encryption	1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, DTLS, ECDSA 256-bit, ECDSA 384-bit, IKE, MD5, PKI, SHA, TLS, Triple DES
Humidity Range Storage	5 - 95% (non-condensing)
Temp. máx. de operación	104 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	240,200 Hours
Humedad de operación	10 - 85% (non-condensing)
Authentication Method	RADIUS, Secure Shell (SSH)
Capacity	Access Control Entries (ACEs) per system (IPv4): 50000, ACLs per system: 4000, Firewall sessions: 2000000, IPsec SVTI tunnels: 4000, IPv4 routes: 3500000, IPv6 routes: 2200000, NAT sessions: 2000000, Queues: 16000, SD-WAN overlay tunnels scale: 8000, Virtual Routing and Forwarding (VRF) entries: 8000
Device Type	Internal power supply
Cantidad por empaque	1
Performance	IPsec throughput (1400Bytes, clear text): 19 Gbps, IPv4 forwarding throughput (1400-byte packet size): 20 Gbps, SD-WAN IPsec throughput (1400Bytes, clear text): 19 Gbps, SD-WAN IPsec throughput (IMIX, clear text): 8.6 Gbps
Ports (2nd) Quantity	8
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	16.98 lbs
Ancho	17.5 inch
Profundidad	16.3 inch
Color	Gray
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
