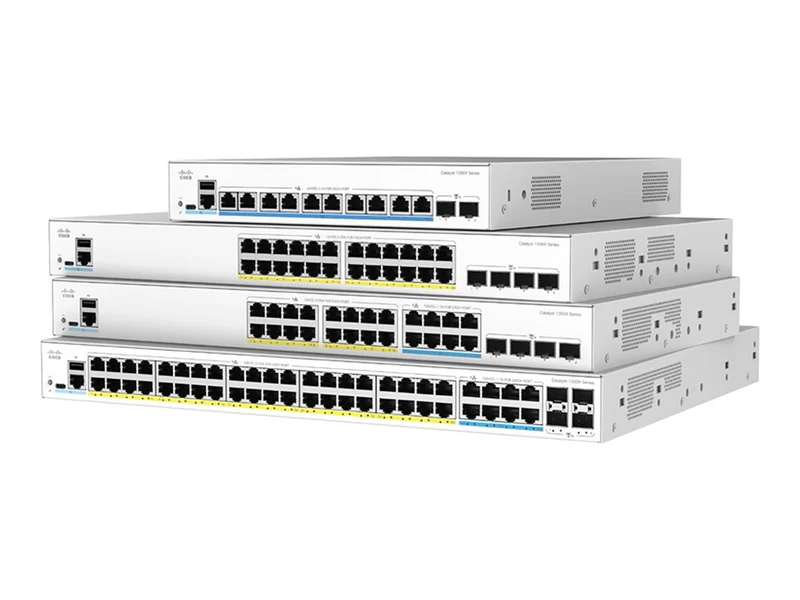

Switch de Red Cisco Catalyst 1300X-48T-4X

Sobre este producto

• 🔗 48 puertos 10/100/1000Base-T más 4 puertos 10 Gigabit SFP28
• 🚀 Capacidad de conmutación de 176 Gbps y tasa de reenvío de 130.95 Mpps
• 🔀 Switching Layer 3 (L3) gestionado con VLAN y prevención de ataques DoS
• 🌡️ Opera de -5°C a 50°C con ventilador integrado y buffer de paquetes de 3 MB
• ⚙️ Gestión remota vía SNMP, SSH y Telnet, montable en rack

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	1300X-48T-4X
Fabricante	Cisco Systems
Velocidad de reloj	1.5 GHZ
Marca del procesador	ARM
Flash Memory Installed	1 GB
Tecnología de memoria	DDR4 SDRAM
RAM instalada	2 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	ACL support, Address Resolution Protocol, ARP inspection, ATP, Auto Surveillance VLAN, Boot integrity, BOOTP support, BPDU Guard, Broadcast Storm Control, Cable length detection, Chip guard, Cisco NG PnP Protocol, CLI management, CPE VLAN, DAD, DAI, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 guard, DiffServ support, DNS client, DoS attack prevention, DoS protection, DSCP based CoS, Dynamic routing, Eco-friendly button, Energy-Efficient Ethernet (EEE), FHS, GARP, Guest VLAN, GVRP, High Availability, HoL Blocking Prevention, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IPMB, IPv4 and IPv6 dual stack, iSCSI traffic optimization, LACP, LAG, Layer 3 routing, LLDP, LLDP-MED, Loopback detection, MAC address authentication, MAC based VLAN, MLD proxy, MLD snooping, MSTP support, Multicast Storm Control, MVR, NDP, Path MTU discovery, Port mirroring, Port Security, Private VLAN, Protocol-based VLANs support, PVE, PVST+, Q-in-Q tunneling, QoS, RA guard, Reset button, Router advertisement guard, RPVST+, RSPAN, RSTP, SCP, SCT, sFlow, SSD, Storm Control, STP loop guard, STP Root Guard, STP support, TCP congestion, Telnet client, Telnet server, Time-based port operation, ToS, TPID, Trustworthy systems, UDLD, UDP, Unicast Storm Control, Unknown Storm Control, VLAN management, VLAN mirroring, VLAN support, Web authentication, WRR, Zero-Touch Deployment
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9000 bytes
MAC Address Table Size	32000 entries
Manageable	Yes
Max Units In A Stack	8
Ports	48
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, HTTPS, ICMP, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Routing Protocol	CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, Policy-based routing (PBR), RIP-2, RSTP, Static IP routing, STP
Stackable	Stackable
Status Indicators	Link/activity/speed, System
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x console RJ-45, 1 x USB-C console, 4 x 10GBase-X SFP28 uplink, 48 x 1000Base-T RJ-45
Port Quantity	4
Port Type	10 Gigabit SFP28
Ports Type (2nd)	10/100/1000Base-T
Frequency	50 - 60 hertz
Voltaje requerido	AC 100-240 volt
Dispositivos integrados	1 x fan
Encryption	MD5, SSL
Humidity Range Storage	10 - 90% RH (non-condensing)
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	23 degree Fahrenheit
Min Storage Temperature	-13 degree Fahrenheit
MTBF	324,549 Hours
Humedad de operación	10 - 90% RH (non-condensing)
Authentication Method	RADIUS, TACACS+
Capacity	ACL rules: 3072, IGMP multicast groups: 4000, IPv4 interfaces: 256, IPv4 routes: 7168, Link aggregation groups: 8, Link aggregation ports: 16, MSTP instances: 16, Packet buffer size: 3 MB, Priority queues: 8, RPVST+ instances: 126, VLAN entries: 4094
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding rate (64‑byte packets): 130.95 Mpps, Switching capacity: 176 Gbps
Ports (2nd) Quantity	48
Accesorios incluidos	Mounting kit, Pointer card
Alto	1.7 inch
Weight	7.94 lbs
Ancho	17.5 inch
Profundidad	10.6 inch
Color	White
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
