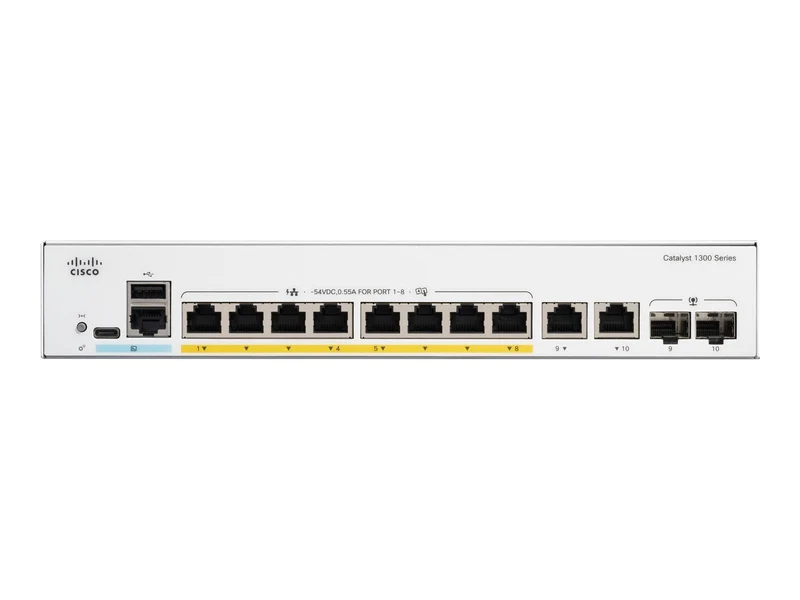

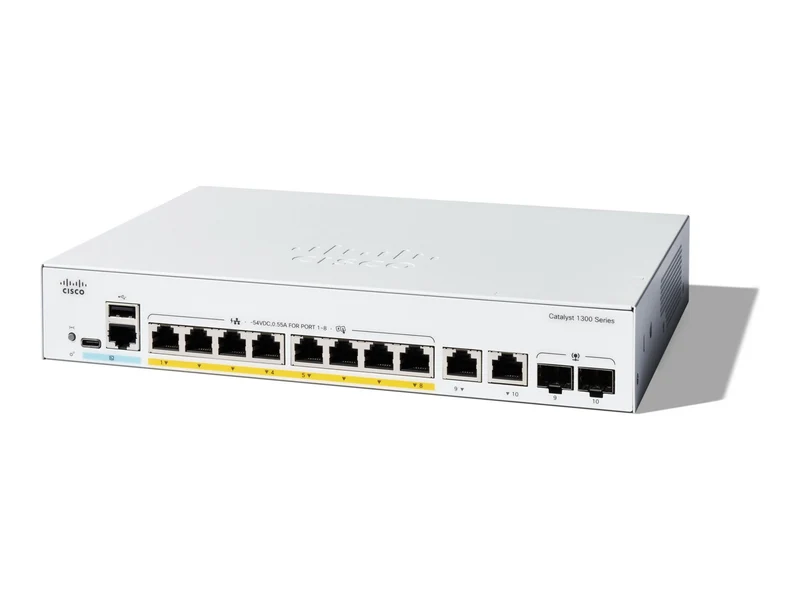

Switch de Red Cisco Catalyst 1300 Series 8 Port PoE+ Switch

Sobre este producto

• 🏪 Diseñado para pymes: switch asequible y fácil de usar de la serie Cisco Catalyst 1300.
• ⚡ 8 puertos 10/100/1000 PoE+: conectividad de acceso con energía integrada.
• 🌐 10 puertos Gigabit Ethernet: capacidad de conexión ampliada.
• 🔌 Potencia de 60 W: energía PoE para tus dispositivos de red.
• ☁️ Gestión con Cisco Business Dashboard y app móvil: experiencia simple y confiable, con imágenes duales para actualizaciones con mínima interrupción.

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	1300-8P-E-2G
Fabricante	Cisco Systems
Velocidad de reloj	1.4 GHZ
Marca del procesador	ARM
Flash Memory Installed	512 megabyte
Tecnología de memoria	DDR4 SDRAM
RAM instalada	1 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	ACL support, Address Resolution Protocol, ARP inspection, ATP, Auto Surveillance VLAN, Boot integrity, BOOTP support, BPDU Guard, Broadcast Storm Control, Cable length detection, Chip guard, Cisco NG PnP Protocol, CLI management, CPE VLAN, DAD, DAI, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 guard, DiffServ support, DNS client, DoS attack prevention, DoS protection, DSCP based CoS, Dynamic routing, Eco-friendly button, Energy-Efficient Ethernet (EEE), Fanless, FHS, GARP, Guest VLAN, GVRP, High Availability, HoL Blocking Prevention, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IPMB, IPv4 and IPv6 dual stack, iSCSI traffic optimization, LACP, LAG, Layer 3 routing, LLDP, LLDP-MED, Loopback detection, MAC address authentication, MAC based VLAN, MLD proxy, MLD snooping, MSTP support, Multicast Storm Control, MVR, NDP, Path MTU discovery, Persistent PoE, PoE scheduling, Port mirroring, Port Security, Private VLAN, Protocol-based VLANs support, PVE, PVST+, Q-in-Q tunneling, QoS, RA guard, Reset button, Router advertisement guard, RPVST+, RSPAN, RSTP, SCP, SCT, sFlow, SSD, Storm Control, STP loop guard, STP Root Guard, STP support, TCP congestion, Telnet client, Telnet server, Time-based port operation, ToS, TPID, Trustworthy systems, UDLD, UDP, Unicast Storm Control, Unknown Storm Control, VLAN management, VLAN mirroring, VLAN support, Web authentication, WRR, Zero-Touch Deployment
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9000 bytes
MAC Address Table Size	16000 entries
Manageable	Yes
PoE Budget	60 watt
Ports	8
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Routing Protocol	Bounjour, CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, Policy-based routing (PBR), RIP-2, RSTP, Static IP routing, STP
Status Indicators	Link/activity/speed, PoE, System
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x console RJ-45, 1 x USB-C console, 2 x 1000Base-X RJ-45/SFP, 8 x 10/100/1000 Base-T (PoE+) RJ-45
Port Quantity	8
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	Combo Gigabit SFP/RJ-45
Frequency	50 - 60 hertz
Voltaje requerido	AC 100-240 volt
Encryption	MD5, SSL
Humidity Range Storage	5 - 90% RH (non-condensing)
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	23 degree Fahrenheit
Min Storage Temperature	-13 degree Fahrenheit
MTBF	1,706,649 Hours
Humedad de operación	5 - 90% RH (non-condensing)
Authentication Method	RADIUS, TACACS+
Capacity	ACL rules: 1024, IGMP multicast groups: 2000, IPv4 interfaces: 128, IPv4 routes (static): up to 990, Link aggregation groups: 8, Link aggregation ports: 8, MSTP instances: 8, Packet buffer size: 1.5 MB, Priority queues: 8, RPVST+ instances: 126, VLAN IDs: 4093
Device Type	External power adapter
Cantidad por empaque	1
Performance	Forwarding rate (64-byte packets): 14.88 Mpps, Switching capacity: 20 Gbps
Ports (2nd) Quantity	2
Accesorios incluidos	Mounting kit, Pointer card
Alto	1.7 inch
Weight	3.37 lbs
Ancho	10.6 inch
Profundidad	7.3 inch
Color	White
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
