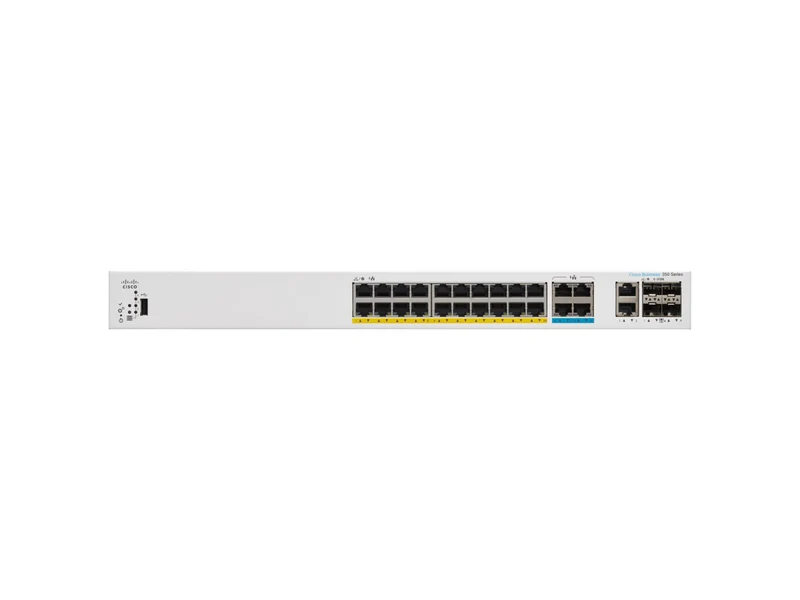

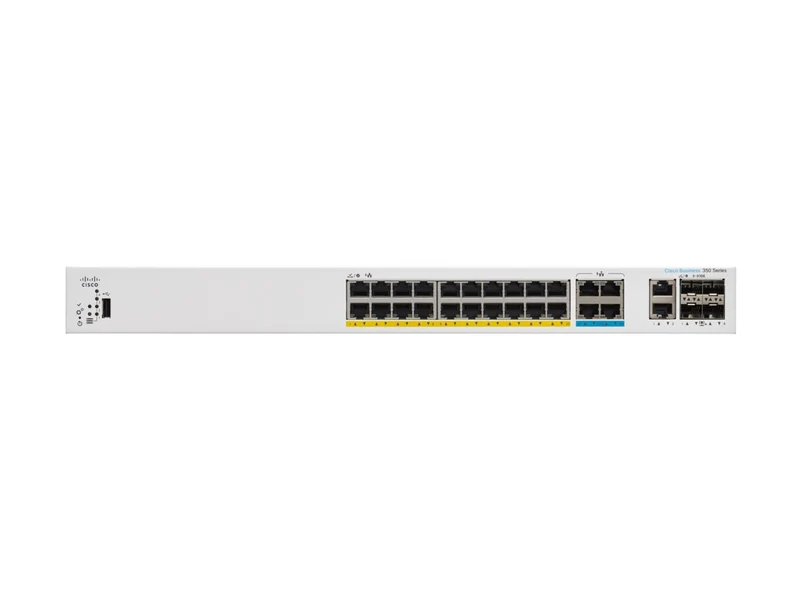

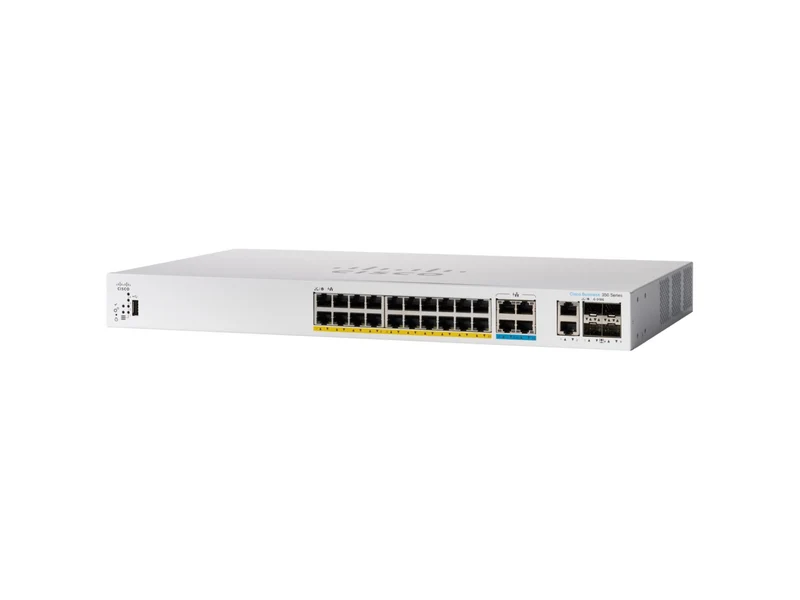

Switch de Red Cisco Catalyst 1300-24MGP-4X

Sobre este producto

• 🔌 24 puertos con PoE+ (195 W): 16x 10/100/1000 (PoE+) + 8x 2.5G (PoE+) + 4x SFP+ 10 Gigabit.
• 🛡️ Capacidades completas de Capa 2/3 (L3) para conectividad confiable y segura en pymes.
• 🖥️ Panel web intuitivo para gestión del switch totalmente administrable (managed).
• 🗄️ Montable en rack (rack-mountable) con funciones de red avanzadas.

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	1300-24MGP-4X
Fabricante	Cisco Systems
Velocidad de reloj	1.4 GHZ
Marca del procesador	ARM
Flash Memory Installed	512 megabyte
Tecnología de memoria	DDR4 SDRAM
RAM instalada	1 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	ACL support, Address Resolution Protocol, ARP inspection, Auto Surveillance VLAN, Boot integrity, BOOTP support, BPDU Guard, Broadcast Storm Control, Cable length detection, Chip guard, CLI management, CPE VLAN, DAD, DAI, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 guard, DiffServ support, DNS client, DoS attack prevention, DoS protection, DSCP based CoS, Dynamic routing, Energy-Efficient Ethernet (EEE), Fanless, GARP, Guest VLAN, GVRP, High Availability, HoL Blocking Prevention, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IPMB, IPv4 and IPv6 dual stack, iSCSI traffic optimization, LACP, LAG, Layer 3 routing, LLDP, LLDP-MED, Loopback detection, MAC address authentication, MAC based VLAN, MLD proxy, MLD snooping, MSTP support, Multicast Storm Control, MVR, NDP, Path MTU discovery, Persistent PoE, PoE scheduling, Port mirroring, Port Security, Private VLAN, Protocol-based VLANs support, PVE, PVST+, Q-in-Q tunneling, QoS, RA guard, Reset button, Router advertisement guard, RPVST+, RSPAN, RSTP, SCP, SCT, sFlow, SSD, Storm Control, STP loop guard, STP Root Guard, STP support, TCP congestion, Telnet client, Telnet server, Time-based port operation, ToS, TPID, Trustworthy systems, UDLD, UDP, Unicast Storm Control, Unknown Storm Control, VLAN management, VLAN mirroring, VLAN support, Web authentication, WRR, Zero-Touch Deployment
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9000 bytes
MAC Address Table Size	16000 entries
Manageable	Yes
Max Units In A Stack	8
PoE Budget	195 watt
Ports	24
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Routing Protocol	CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, Policy-based routing (PBR), RIP-2, RSTP, Static IP routing, STP
Stackable	Stackable
Status Indicators	Link/activity/speed, PoE, System
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
QSFP Slots	10 Gigabit SFP+
Interfaces	1 x console RJ-45, 1 x USB-C console, 16 x 10/100/1000 Base-T (PoE+) RJ-45, 4 x 10GBase-X SFP+, 8 x 2.5GBase-T RJ-45 PoE+
Port Quantity	16
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	2.5G (PoE+)
Frequency	50 - 60 hertz
Voltaje requerido	AC 100-240 volt
Encryption	MD5, SSL
Humidity Range Storage	10 - 90% RH (non-condensing)
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	23 degree Fahrenheit
Min Storage Temperature	-13 degree Fahrenheit
MTBF	2,165,105 Hours
Humedad de operación	10 - 90% RH (non-condensing)
Authentication Method	RADIUS, TACACS+
Capacity	ACL rules: 1024, IGMP multicast groups: 2000, IPv4 interfaces: 128, IPv4 routes (static): up to 990, Link aggregation groups: 8, Link aggregation ports: 8, MSTP instances: 8, Packet buffer size: 1.5 MB, Priority queues: 8, RPVST+ instances: 126, VLAN IDs: 4093
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding rate (64-byte packets): 95.23 Mpps, Switching capacity: 128 Gbps
Ports (2nd) Quantity	8
Ports (3rd) Quantity	4
Accesorios incluidos	Mounting kit, Pointer card
Alto	1.7 inch
Weight	8.11 lbs
Ancho	17.5 inch
Profundidad	11.8 inch
Color	White
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
