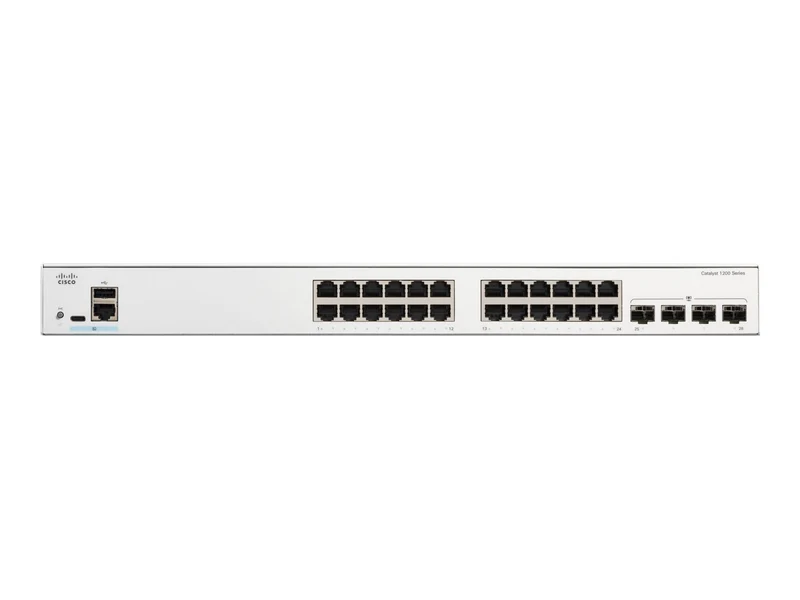

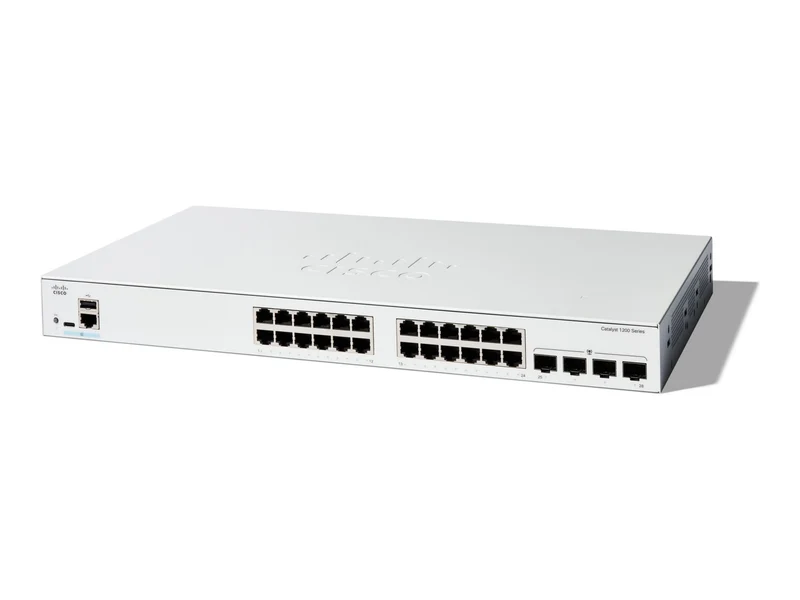

Switch de Red Cisco Catalyst 1200-24T-4G

Sobre este producto

• 🔌 24 puertos 10/100/1000 más 4 ranuras Gigabit SFP para uplinks de fibra
• 🧠 Smart switch Layer 3 (L3) de la nueva generación Cisco Catalyst 1200, con enrutamiento avanzado
• 🏢 Rendimiento, seguridad y confiabilidad pensados para una red sólida de pequeña empresa
• 🗄️ Formato montable en rack para instalación ordenada en gabinete
• 💰 Serie de switches inteligentes asequibles con suite completa de funciones de red

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Catalyst
Modelo	1200-24T-4G
Fabricante	Cisco Systems
Velocidad de reloj	1.4 GHZ
Marca del procesador	ARM
Flash Memory Installed	512 megabyte
Tecnología de memoria	DDR4 SDRAM
RAM instalada	1 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	ACL support, Auto Surveillance VLAN, Boot integrity, BOOTP support, Broadcast Storm Control, Cable Diagnostics Function, Cable length detection, CDP, Chip guard, DAD, DHCP client, DHCP relay, DHCP server, DiffServ support, DNS client, DoS attack prevention, DoS protection, DSCP based CoS, Eco-friendly button, Energy-Efficient Ethernet (EEE), EQS, Fanless, GARP, Guest VLAN, GVRP, HoL Blocking Prevention, IGMP querier, IGMP snooping, Ingress rate limiting, IPv4 and IPv6 dual stack, LACP, LAG, Layer 3 routing, Link Aggregation, Link Layer Discovery Protocol, LLDP-MED, Loopback detection, MSTP support, Multicast Storm Control, Path MTU discovery, Port grouping, Port mirroring, Port Security, Port-based VLAN, PVST+, QoS, Remote firmware upgrade, Reset button, RPVST+, SCP, SCT, SNMP trap, SNTP support, SP, SSD, Storm Control, STP loop guard, Tag-based VLANs, TCP congestion, TCP/UDP proxy, Telnet client, Telnet server, TFTP support, Time-based port operation, ToS, Trustworthy systems, UDP, Unicast Storm Control, Unknown Storm Control, VLAN management, VLAN mirroring, VLAN support, Voice VLAN, VSDP, WRR, WRR queuing, Zero-Touch Deployment
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9000 bytes
MAC Address Table Size	8000 entries
Manageable	Yes
Ports	24
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Routing Protocol	Bounjour, CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, RSTP, Static IP routing, STP
Smart	Yes
Status Indicators	Link/activity/speed, System
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x console RJ-45, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45, 4 x 10GBase-X SFP
Port Quantity	24
Port Type	10/100/1000
Ports Type (2nd)	Gigabit SFP
Frequency	50 - 60 hertz
Voltaje requerido	AC 100-240 volt
Encryption	SSL
Humidity Range Storage	10 - 90% RH (non-condensing)
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	23 degree Fahrenheit
Min Storage Temperature	-13 degree Fahrenheit
MTBF	2,026,793 Hours
Humedad de operación	10 - 90% RH (non-condensing)
Authentication Method	RADIUS
Capacity	ACL rules: 512, Active VLANs: 255, IGMP multicast groups: 255, IPv4 interfaces: 16, IPv4 routes (static): 32, Link aggregation groups: 4, Link aggregation ports: 8, MSTP instances: 8, Packet buffer size: 1.5 MB, Priority queues: 8, PVST+ instances: 126, RPVST+ instances: 126
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding rate (64-byte packets): 41.66 Mpps, Switching capacity: 56 Gbps
Ports (2nd) Quantity	4
Accesorios incluidos	Mounting kit, Pointer card
Alto	1.7 inch
Weight	5.8 lbs
Ancho	17.5 inch
Profundidad	9.4 inch
Color	White
