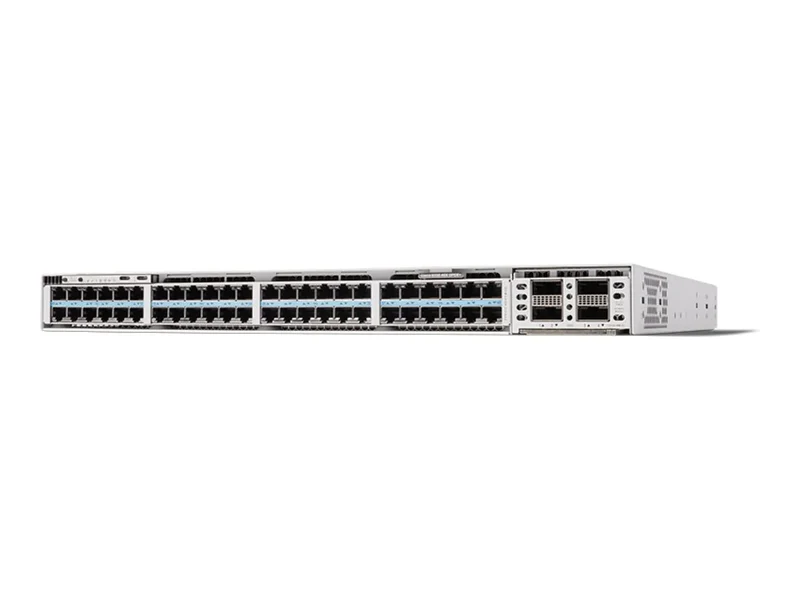

Switch de Red Cisco C9350-48HX

Sobre este producto

• 🌐 Switch de Red Cisco C9350-48HX: para redes cableadas de oficina y datacenter.
• ✅ The Cisco C9350-48HX is designed for high-performance networking, ensuring robust connectivity and management capabilities
• ✅ With a capacity to support up to 5,000 IPv4 routes and 100,000 IPv6 routes, it caters to extensive network demands
• ✅ Featuring 48 ports with UPOE+ support, this switch facilitates a diverse range of devices, making it suitable for various applications
• ✅ Its manageable interface allows efficient network monitoring, along with support for protocols like BGP-4, OSPF, and EIGRP
• ✅ Built to withstand varied environmental conditions, the Cisco C9350-48HX operates within a temperature range from -5°C to 45°C, ensuring durability and reliability
• ✅ Its internal power supply and substantial PoE budget allow for flexible power allocation, meeting the needs of connected devices

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco
Modelo	C9350-48HX
Fabricante	Cisco Systems
Flash Memory Installed	18 GB
RAM instalada	16 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP)
Características	ARP support, Bandwidth Shaping, Border Gateway Protocol 4 (BGP-4), Cisco StackPower technology, Cisco StackWise Technology, Cisco Trust Anchor module, EIGRP Stub Routing, First Hop Security (FHS), Flexible NetFlow (FNF), Graceful Insertion and Removal (GIR) mode, Hierarchical Quality of Service (HQoS), High Availability, IGMP support, Image signing, Intermediate System to Intermediate System (IS-IS), IP-routing, IPFIX, LACP support, MQC, Multicast Listener Discovery (MLD), Open Shortest Path First (OSPF), Out-of-band management, PIM-SM snooping, PIM-SSM snooping, Port Aggregation Protocol (PAgP) support, Protocol Independent Multicast (PIM), PVLAN support, QinQ VLAN, Quality of Service (QoS), RFID authentication, RSTP, Secure Boot, Software Maintenance Upgrade (SMU), Stateful switchover (SSO), STP support, Strict Priority Queuing (SPQ), Traffic metering, Virtual Output Queue (VOQ), VLAN mapping, VLAN support, Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches)	Desktop, Rack-mountable
Jumbo Frame Support	9126 bytes
MAC Address Table Size	128K entries
Manageable	Yes
PoE Budget	4320 watt
Ports	48
Power Over Ethernet (PoE)	UPOE+
Tipo de producto	Switch
Gestión remota	CLI, NETCONF, RESTCONF, SSH, YANG
Routing Protocol	BGP-4, BGP-6, EIGRP, EIGRP for IPv6, IS-ISv4, OSPFv3, PIM-SM, RIP-2, RIPng
Stackable	Stackable
Status Indicators	PoE, Port transmission speed, Status, System
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x Stacking Module slot
Interfaces	1 x 10/100/1000Base-T RJ-45 management, 1 x console RJ-45, 1 x USB 3.0, 1 x USB Type C console, 1 x USB Type C host, 2 x network stack device, 48 x 1000Base-T RJ-45 UPOE+ - 90 W
Port Quantity	48
Port Type	10/100/1000/2.5G/5G/10GBase-T (UPoE+)
Fuentes instaladas	1
Fuentes soportadas	3
Fuente redundante	Optional
Fuente redundante soportada	N+1 (with optional power supply)
Humidity Range Storage	10 - 95% RH (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	167 degree Fahrenheit
Temp. mín. de operación	23 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
MTBF	277,660 Hours
Humedad de operación	10 - 95% RH (non-condensing)
Operating System Required	Cisco IOS XE 17.18.1 or later
Authentication Method	Secure Shell (SSH)
Capacity	ARP entries: 64000, IGMP snooping groups: 8000, IPv4 QoS ACL scale: 2000, IPv4 routes (Multicast): 8000, IPv4 routes: 192000, IPv4 security ACL scale: 5000, IPv6 neighbor discovery: 4000, IPv6 QoS ACL scale: 2000, IPv6 routes (Multicast): 4000, IPv6 routes: 96000, IPv6 security ACL scale: 25000, MAC addresses: 64000, MLD groups: 4000, NetFlow entries: 64000, Packet buffer size: 36, PVST instances: up to 10000, STP Virtual Ports for MST: 100000, STP Virtual Ports for PVST: 16000, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4094
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding rate with stacking: 2499.84 Mpps, Forwarding rate: 1309.44 Mpps, Stacking bandwidth: 3360 Gbps, Switching capacity: 1760 Gbps
Alto	1.7 inch
Altura (unidades de rack)	1
Ancho	17.5 inch
Profundidad	18.6 inch
Color	Gray
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
