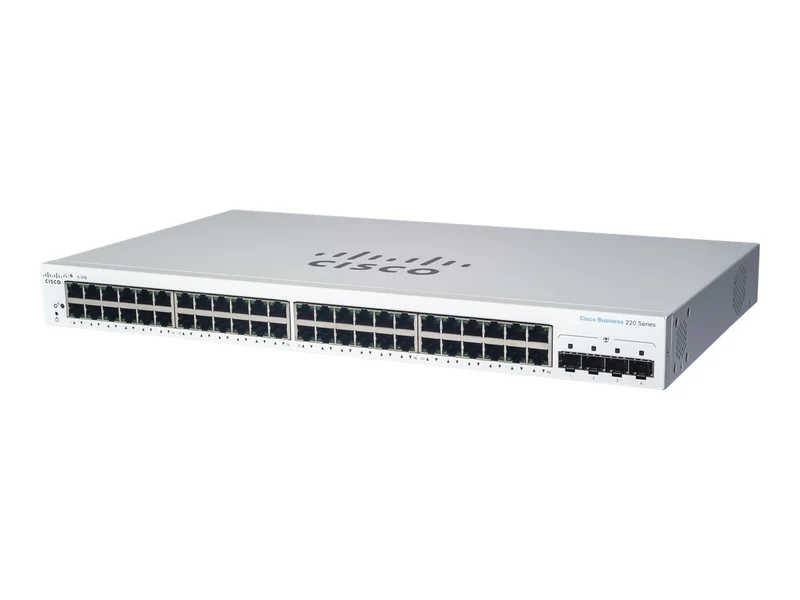

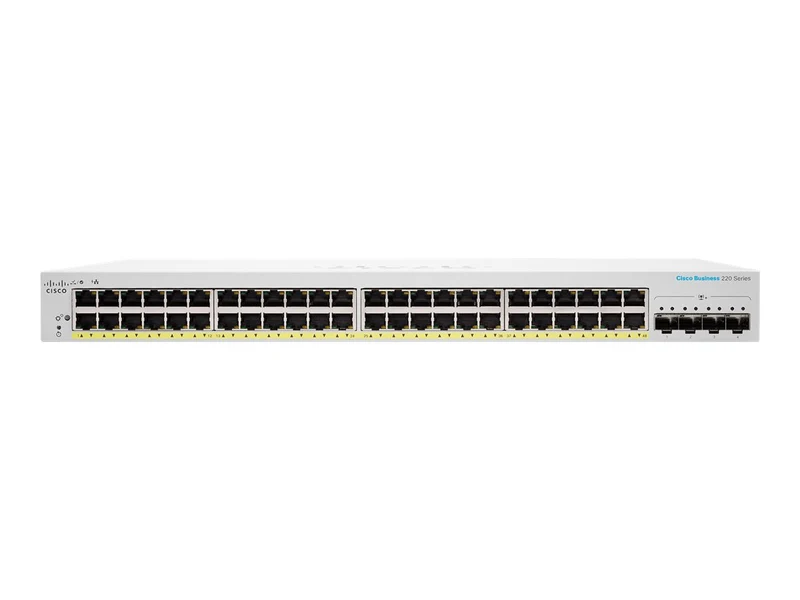

Switch de Red Cisco Business 220 Series CBS220-48P-4X

Sobre este producto

• 🔌 Puertos 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
• ⚡ Alimentación PoE+ con 382 W de presupuesto de potencia
• 🧠 Switch smart que une la asequibilidad no gestionada con la facilidad de uso
• 📱 Dashboard intuitivo con soporte de app móvil
• 🗄️ Diseño montable en rack (rack-mountable)

Característica	Detalle
Marca	Cisco
Línea de producto	Cisco Business 220 Series
Modelo	CBS220-48P-4X
Fabricante	Cisco Systems
Flash Memory Installed	64 megabyte
RAM instalada	256 megabyte
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	1 fan, 802.1x authentication, Access Control List (ACL) support, Auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX), BOOTP support, BPDU Guard, Broadcast Storm Control, Cable Diagnostics Function, Cisco Discovery Protocol (CDP), DHCP client, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dual firmware images, Duplicate Address Detection (DAD), Energy Efficient Ethernet, Generic VLAN Registration Protocol (GVRP), Guest VLAN, Head-of-line (HOL) Blocking Prevention, IGMP snooping, LACP support, LLDP support, LLDP-MED, Loopback detection, MAC address filtering, Management Information Base (MIB), Multicast Storm Control, Neighbor Discovery Protocol (NDP), Port mirroring, Port Security, Quality of Service (QoS), STP loop guard, Syslog support, TCP support, Telnet server, Type of Service (ToS), Unknown Storm Control, User Datagram Protocol (UDP), VLAN management, VLAN support, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9216 bytes
MAC Address Table Size	8192 entries
Manageable	Yes
PoE Budget	382 watt
Ports	48
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, RSTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TACACS+, Telnet, TFTP
Routing Protocol	IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, RSTP, STP
Smart	Yes
Status Indicators	Link/activity/speed, System
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	4 x 10GBase-X SFP+ uplink, 48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
Port Quantity	48
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	10 Gigabit SFP+ (uplink)
Frequency	50/60 hertz
Power Consumption Operational	482 watt
Voltaje requerido	AC 100-240 volt
Encryption	SSL
Humidity Range Storage	10 - 90% (non-condensing)
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-4 degree Fahrenheit
MTBF	265,589 Hours
Humedad de operación	10 - 90% (non-condensing)
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity	ACL rules: 512, Buffer capacity (MB): 16, MSTP instances: 16, VLANs supported: 256
País	Canada, Chile, Colombia, Latin America, Mexico, United States
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding performance (64-byte packet size): 130.94 Mpps, Switching capacity: 176 Gbps
Ports (2nd) Quantity	4
Rack Mounting Kit	Included
Alto	1.7 inch
Weight	11.82 lbs
Ancho	17.3 inch
Profundidad	13.8 inch
Color	White
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
