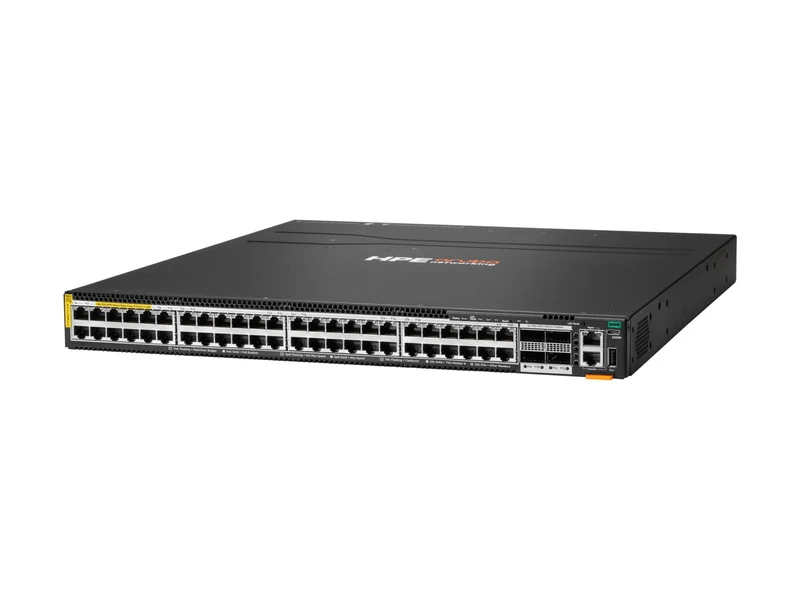

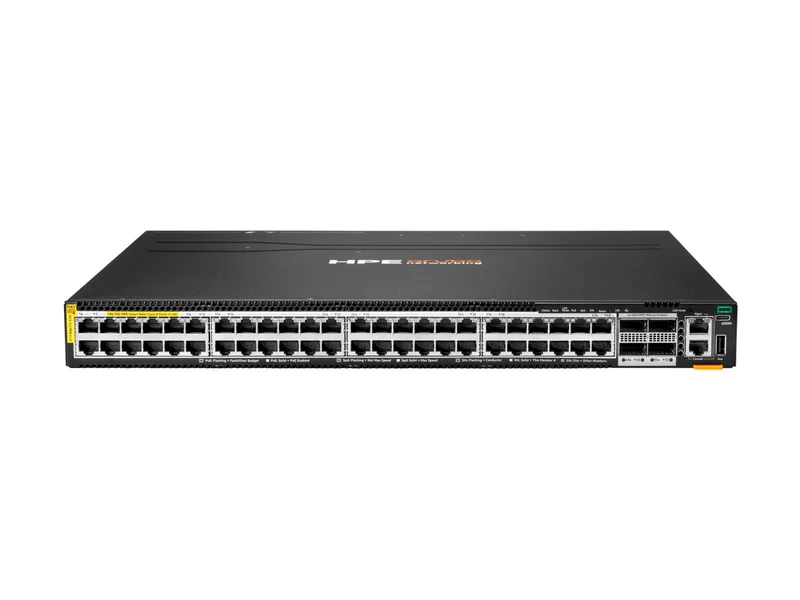

Switch de Red Aruba HPE Networking Networking CX 6300M 48p SR10 1G/2.5G/5G/10G PTP/AVB Class8 PoE 4p 100G MACsec Switch

Sobre este producto

• 🚀 Switch de alto rendimiento con puertos multi-gigabit 1G/2.5G/5G/10G para usuarios y dispositivos IoT.
• 🔐 Seguridad MACsec Class8 PoE y 4 puertos 100G para entornos empresariales modernos.
• 🛡️ Conmutación de Capa 3 (Layer 3) con fabric de campus y sucursales.
• 🌬️ Flujo de aire de atrás hacia adelante (Back-to-Front Airflow) para eficiencia de enfriamiento.
• ☁️ Gestión basada en la nube con visibilidad y analítica sin igual.

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba Networking CX
Modelo	6300M 48p SR10 1G/2.5G/5G/10G PTP/AVB Class8 PoE 4p 100G MACsec Switch
Fabricante	Aruba
Velocidad de reloj	1.8 GHZ
Marca del procesador	ARM
Número de procesador	Cortex-A72
Procesadores instalados	1
Flash Memory Installed	32 GB
Tecnología de memoria	DDR4 SDRAM
RAM instalada	8 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Características	Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, Dynamic IPv6 lockdown, Fan tray, HPE SmartRate, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, Layer 2 switching, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree Plus (PVST+), PoE Class 8, Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Virtual Extensible LAN (VXLAN), VLAN support
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9198 bytes
MAC Address Table Size	32768 entries
Manageable	Yes
Max Units In A Stack	10
PoE Budget	2640 watt
Ports	48
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	CLI, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol	BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-2, RSTP
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
Interfaces	1 x console RJ-45, 1 x management RJ-45 out-of-band network management, 1 x USB Type A host, 1 x USB-C console, 4 x 10/25/40/100Gbit LAN QSFP/QSFP28 uplink, 48 x 100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 PoE Class 8 - 90 W
Port Quantity	48
Port Type	100/1000/2.5G/5G/10GBase-T (PoE++)
Ports Type (2nd)	10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28 (uplink)
Hot-Plug	Hot-plug
Fuentes instaladas	0
Fuentes soportadas	2
Fuente redundante	Optional
Fuente redundante soportada	1+1 (with optional power supply)
Encryption	FIPS 140-2
Humidity Range Storage	5 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	5 - 95% (non-condensing)
Operating System Required	AOS-CX
Airflow Direction	Front and side to back
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity	IGMP groups: 4096, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs) (dual stack): 1024
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Stacking bandwidth: 400 Gbps, Switching capacity: 1760 Gbps, Throughput: 1310 Mpps
Ports (2nd) Quantity	4
Rack Mounting Kit	Included
Accesorios incluidos	2-Post Rack Kit, 3 x field-replacable hot-swappable fan trays
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	17.09 lbs
Ancho	17.4 inch
Profundidad	18.6 inch
Color	Black, Silver
