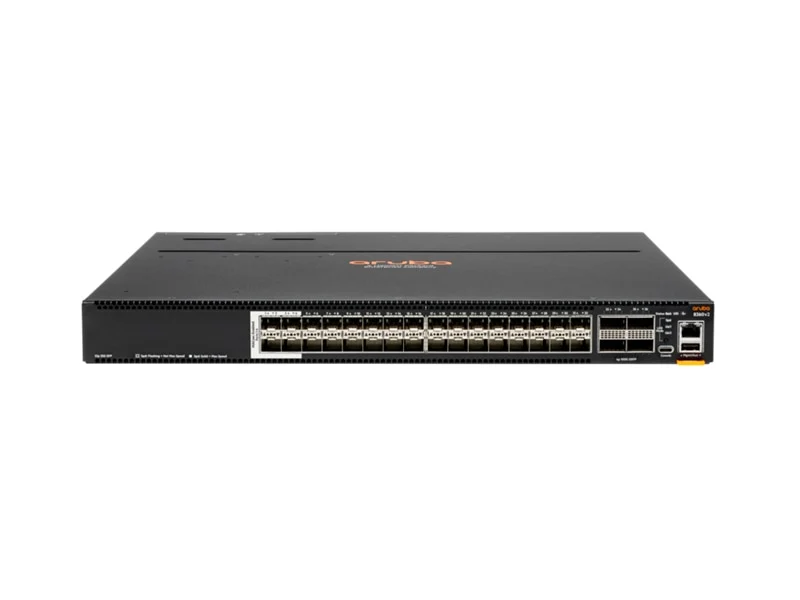

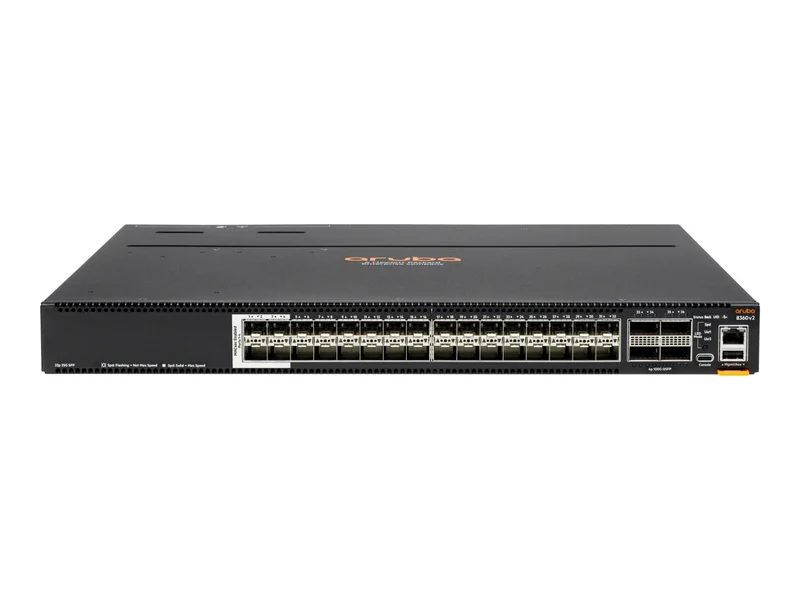

Switch de Red Aruba HPE Networking CX 8360-32Y4C V2

Sobre este producto

• 🧩 Arquitectura modular Cloud-Native flexible e innovadora
• 🔁 Alta disponibilidad y resiliencia para core y agregación
• 📊 Network Analytics Engine para inteligencia de red
• 🤖 Automatización definida por software (SDN)
• 🏢 Diseñado para campus de próxima generación y entornos virtuales/cloud de centros de datos

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba CX
Modelo	8360-32Y4C V2
Fabricante	Aruba Data Center Switches
Velocidad de reloj	1.8 GHZ
Procesadores instalados	1
Flash Memory Installed	32 GB
RAM instalada	16 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP)
Características	ARP support, Data Center Bridging (DCB), Dual flash Images, Ethernet Ring Protection Switching (ERPS), Explicit Congestion Notification (ECN), IP Directed Broadcast, Job scheduler framework, Loopback, Multiple Spanning Tree Protocol (MSTP) support, Packet storm protection, Quality of Service (QoS), Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, RDMA over Converged Ethernet (RoCE) v2, REST API interface, sFlow, Unidirectional Link Detection (UDLD), Virtual Routing and Forwarding (VRF), Virtual Switch Extension (VSX), VXLAN ARP/ND Suppression, VXLAN Distributed Anycast Gateway
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9KB
Manageable	Yes
Ports	32
Tipo de producto	Switch
Gestión remota	CLI, DHCP, NTP, RMON, SFTP, SNMP, TFTP
Routing Protocol	BGP, BGP-4, Bidirectional Forwarding Detection (BFD), IGMP, MLD, OSPF, PIM-SM, Static IPv4 routing, Static IPv6 routing, VRRP
Subcategory	Network hubs and switches
Switching Type	25 Gigabit Ethernet
QSFP Slots	40/100 Gigabit QSFP+ / QSFP28
Interfaces	1 x console Type C, 1 x management Type A, 1 x serial RJ-45, 32 x 1/10/25Gbit LAN SFP/SFP+/SFP28, 4 x 10/25Gbit LAN SFP28/SFP+ with MACsec, 4 x 40/100Gbit LAN QSFP28/QSFP+
Port Quantity	28
Port Type	1/10/25 Gigabit SFP / SFP+ / SFP28
Ports Type (2nd)	10 Gigabit / 25 Gigabit SFP+ / SFP28
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Potencia	550 watt
Fuentes instaladas	2
Fuentes soportadas	2
Fuente redundante	Yes
Voltaje requerido	AC 100-127/200-240 volt
Encryption	EAP-TLS
Humidity Range Storage	15 - 95% (non-condensing)
Temp. máx. de operación	104 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Airflow Direction	Back to front airflow
Authentication Method	RADIUS, Secure Shell v.2 (SSH2), TACACS+
Capacity	Host table entries (IPv4): 145780, Host table entries (IPv6): 145780, IGMP groups: 7000, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 65536, IPv4 routes (Multicast): 7000, IPv4 routes (Unicast): 606977, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 16384, IPv6 routes (Multicast): 7000, IPv6 routes (Unicast): 630784, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 65536, MAC addresses: 212992, MLD groups: 7000, VLANs supported: 4094
País	United States
Device Type	Internal power supply
Localization	English
Cantidad por empaque	1
Performance	Switching capacity: 2.4 Tbps
Ports (2nd) Quantity	4
Ports (3rd) Quantity	4
Rack Mounting Kit	Included
Accesorios incluidos	3 fan trays, Rack kit (2 post)
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	18.06 lbs
Ancho	17.4 inch
Profundidad	16 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
Standby Power Consumption	120 watt
