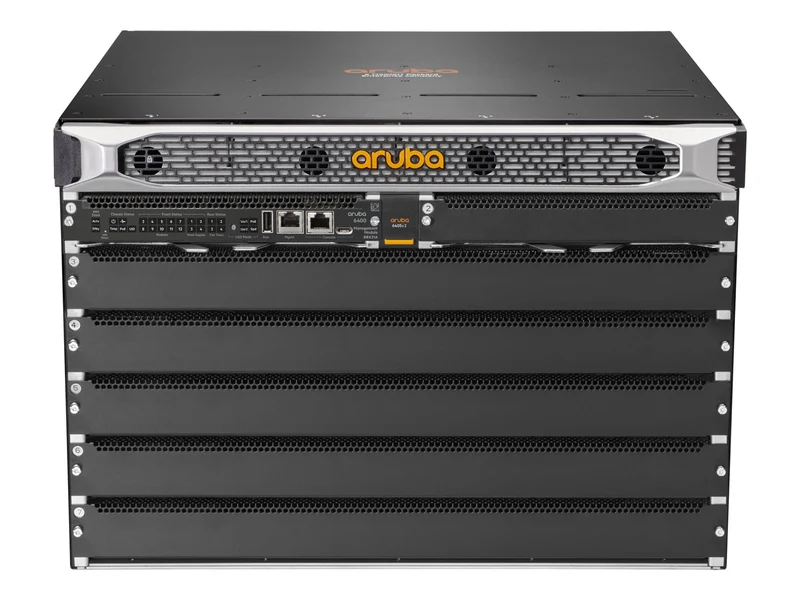

Switch de Red Aruba HPE Networking CX 6405 v2

Sobre este producto

• 🛠️ Administrable y Layer 3 (L3): switch modular AOS-CX de la serie HPE Aruba CX 6405 v2, ideal para campus empresarial y data center.
• 🧩 Chasis pequeño de 5 y 10 slots: para instalaciones de acceso, agregación y núcleo.
• 🚀 Interfaces a tasa de línea 25GbE, 100GbE y PoE de 60W de alta densidad: con HPE Smart Rate multigigabit Ethernet.
• 🌬️ Flujo de aire de adelante hacia atrás (front to back): diseño térmico apto para data center.
• 🗄️ Montable en rack: compatible con P/N R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C y R0X43C.
• 📱 Aruba NetEdit y Aruba CX Mobile App: configuraciones perfectas y fáciles de desplegar.

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba CX
Modelo	6405 v2
Fabricante	Aruba
Velocidad de reloj	1.8 GHZ
Procesadores instalados	1
Flash Memory Installed	32 GB
Tecnología de memoria	DDR4 SDRAM
RAM instalada	16 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Características	Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, Firmware upgradable, High Availability, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, Jumbo Frames support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), sFlow, Strict Priority (SP), Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm protection, Virtual Extensible LAN (VXLAN), Virtual Switch Extension (VSX), VLAN support, VLAN Tagging
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9198 bytes
MAC Address Table Size	32768 entries
Manageable	Yes
Tipo de producto	Switch
Gestión remota	CLI, HTTPS, RMON, SFTP, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP, XRMON
Routing Protocol	BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, OSPFv2, OSPFv3, Policy-based routing (PBR), Static IPv4 routing, Static IPv6 routing, VRRP
Status Indicators	Active, Fan, Power, Standby, Status
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
Interfaces	1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A, 1 x USB-C console
Fuentes soportadas	4
Fuente redundante	Optional
Humidity Range Storage	15 - 95% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Supported Devices	7
Airflow Direction	Front to back airflow
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity	IGMP groups: 8000, IPv4 ACL entries (egress): 2000, IPv4 ACL entries (ingress): 5000, IPv4 host table capacity: 32000, IPv4 routes (Multicast): 8000, IPv4 routes (Unicast): 64000, IPv6 ACL entries (egress): 500, IPv6 ACL entries (ingress): 1250, IPv6 host table capacity: 32000, IPv6 routes (Multicast): 8000, IPv6 routes (Unicast): 64000, MAC ACL entries (egress): 2000, MAC ACL entries (ingress): 5000, MLD groups: 4000, Switched virtual interfaces (SVIs): 2000
Device Type	Internal power supply (not installed)
Installed Devices/Modules	1
Cantidad por empaque	1
Performance	Switching capacity: 14 Tbps, Throughput: 5.7 Bpps
Rack Mounting Kit	Included
Accesorios incluidos	2 fan trays, Cable management kit
Alto	12.1 inch
Altura (unidades de rack)	7
Weight	64.59 lbs
Ancho	17.4 inch
Profundidad	17.7 inch
Color	Black
