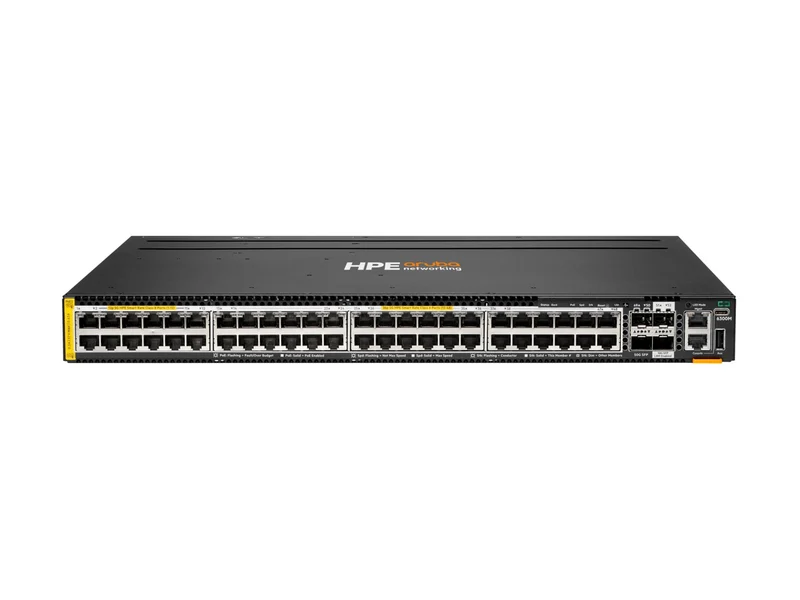

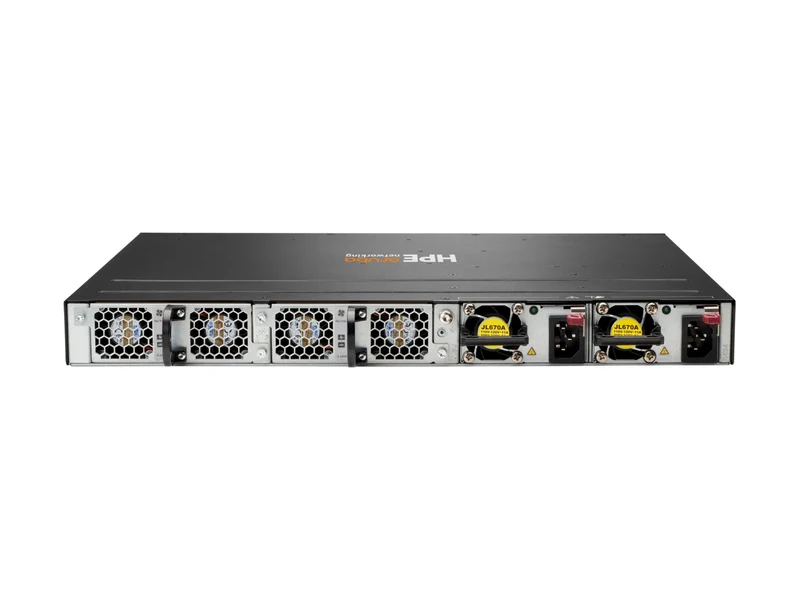

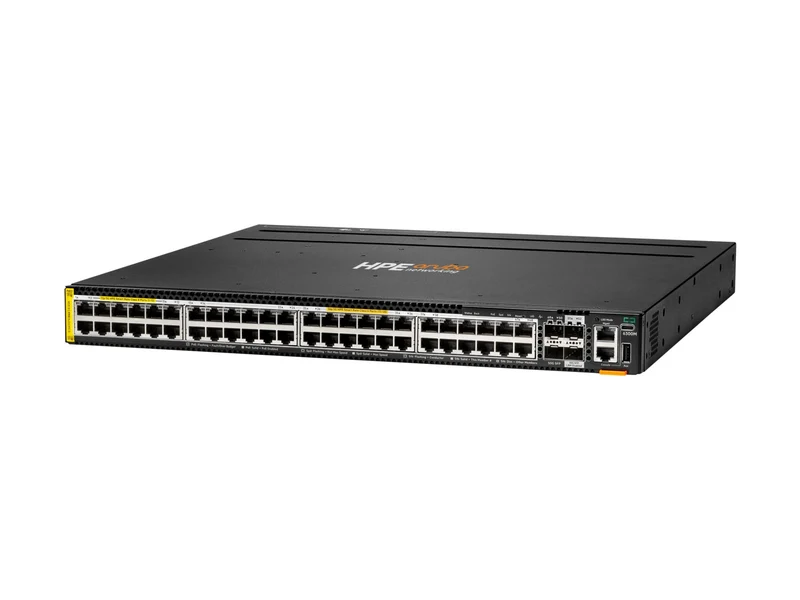

Switch de Red Aruba HPE Networking 6300M, R8S91A

Sobre este producto

• 🔌 48 puertos 100/1000/2.5G/5G (PoE++) más uplinks SFP56 (10/25/50G) y SFP+ (1/10G) para uplink/stacking
• 🔀 Switch Layer 3 gestionado ideal para acceso, agregación y top-of-rack (TOR) de centro de datos
• 🧠 Diseño cloud-céntrico con OS programable AOS-CX y Analytics Engine para monitoreo líder en el sector
• 📚 HPE Virtual Stacking Framework (VSF) permite apilar hasta 10 switches para escalar y simplificar la gestión
• 🔋 PoE++ IEEE 802.3bt de alta densidad con HPE Smart Rate multi-gigabit para APs de alta velocidad y dispositivos IoT
• 🏗️ Formato rack-mountable con arquitectura Gen7 ASIC non-blocking

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba
Modelo	6300M
Fabricante	Aruba
Velocidad de reloj	1.8 GHZ
Marca del procesador	ARM
Procesadores instalados	1
Flash Memory Installed	32 GB
Tecnología de memoria	DDR4 SDRAM
RAM instalada	8 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3bt
Características	Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, Dual firmware images, Dynamic IPv6 lockdown, Fan tray, High Availability, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9198 bytes
MAC Address Table Size	32768 entries
Manageable	Yes
Ports	48
Power Over Ethernet (PoE)	PoE++
Tipo de producto	Switch
Gestión remota	CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol	BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, Policy-based routing (PBR), RSTP, STP, VRRP
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
QSFP Slots	1 Gigabit / 10 Gigabit SFP+
Interfaces	1 x management, 1 x USB Type A, 1 x USB-C, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56, 48 x 10/100/1000 Base-T RJ-45
Port Quantity	48
Port Type	100/1000/2.5G/5G (PoE++)
Ports Type (2nd)	10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Potencia	75 watt
Fuentes instaladas	1
Fuentes soportadas	2
Fuente redundante	Optional
Fuente redundante soportada	1+1 (with optional power supply)
Encryption	FIPS 140-2
Humidity Range Storage	15 - 95% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity	IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Latency (25 Gbps): 1.9 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 496 Gbps, Throughput: 369 Mpps
Ports (2nd) Quantity	2
Ports (3rd) Quantity	2
Rack Mounting Kit	Included
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	12.06 lbs
Ancho	17.4 inch
Profundidad	15.2 inch
Color	Black
Certificado ENERGY STAR	No
