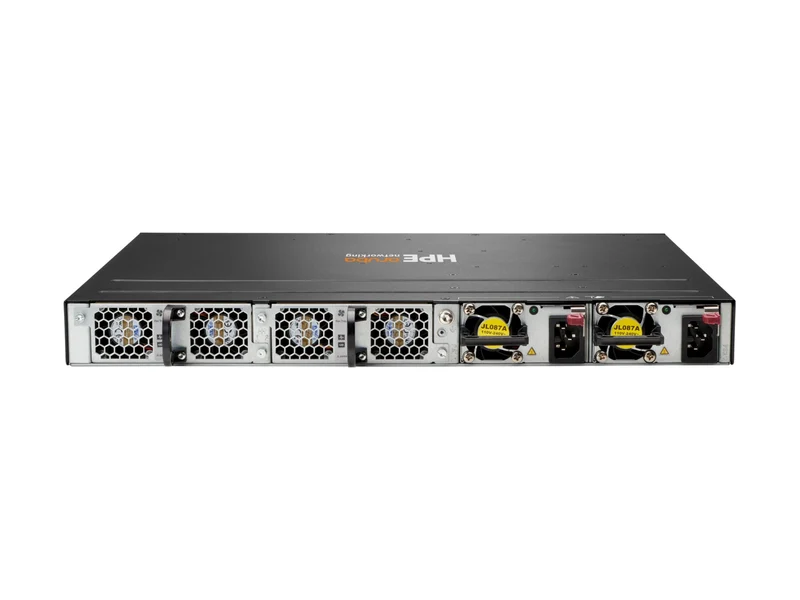

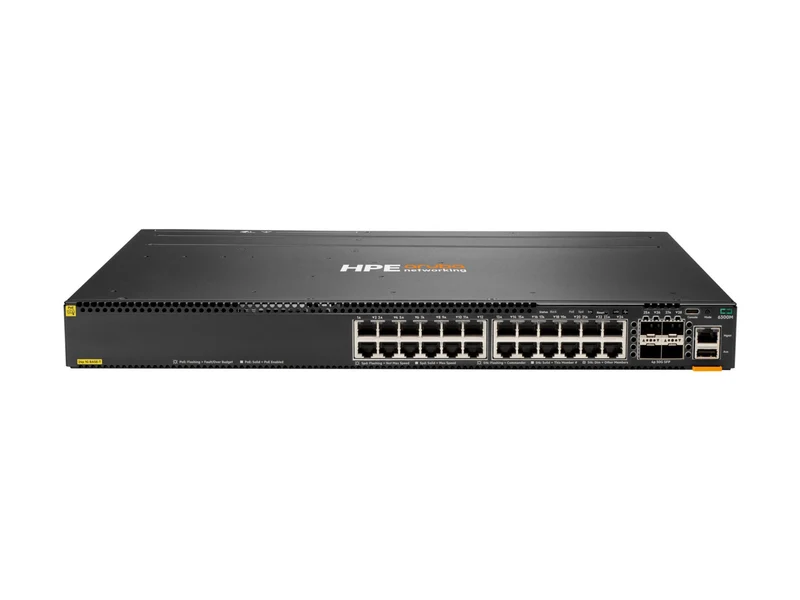

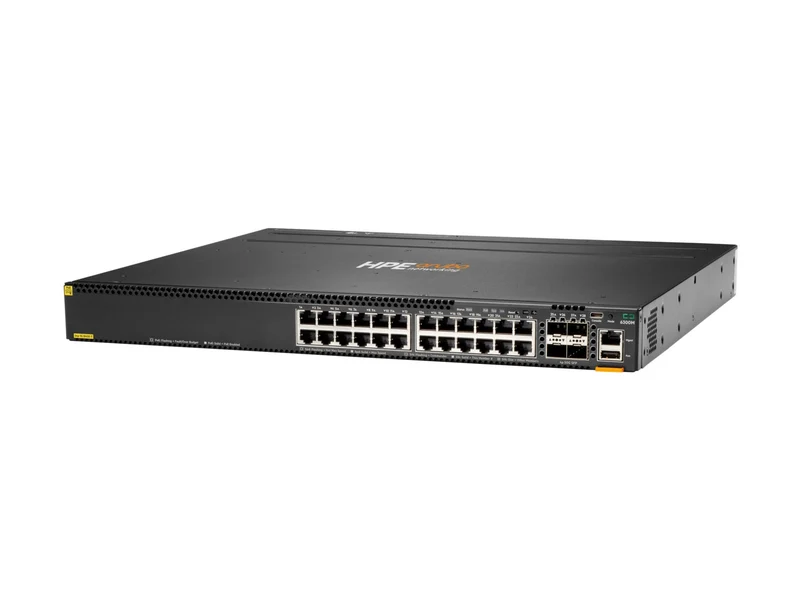

Switch de Red Aruba HPE Networking 6300M, JL662A

Sobre este producto

• 🌐 Switch de Red Aruba HPE Networking 6300M: para redes cableadas de oficina y datacenter.
• ✅ Ports: 24x 10/100/1000 BASE-T PoE+ Ports,4x 1/10/25/50G SFP
• ✅ Power Consumption: 74-81W
• ✅ Memory: 32GB eMMC
• ✅ Processor: Quad Core ARM Cortex A72
• ✅ Throughput: 334Mpps

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba
Modelo	6300M
Fabricante	Aruba
Velocidad de reloj	1.78 GHZ
Marca del procesador	ARM
Tipo de procesador	Cortex-A72
Procesadores instalados	1
Flash Memory Installed	32 GB
Tecnología de memoria	DDR4 SDRAM
RAM instalada	8 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz
Características	Access Control List (ACL) support, ARP support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, High Availability, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, Jumbo Frames support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Strict Priority (SP), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9198 bytes
MAC Address Table Size	32000 entries
Manageable	Yes
PoE Budget	720 watt
Ports	24
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, HTTPS, RMON, SFTP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP, XRMON
Routing Protocol	BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, IGMP, IGMPv2, IGMPv3, MLD, MSDP, OSPFv2, OSPFv3, Static IPv6 routing, VRRP
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x management, 1 x USB Type A, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56
Port Quantity	24
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Humidity Range Storage	15 - 95% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Airflow Direction	Front and side to back
Authentication Method	RADIUS, TACACS+
Capacity	IGMP groups: 8000, IPv4 ACL entries (egress): 2000, IPv4 ACL entries (ingress): 5000, IPv4 host table capacity: 32000, IPv4 routes (Multicast): 8000, IPv4 routes (Unicast): 64000, IPv6 ACL entries (egress): 500, IPv6 ACL entries (ingress): 1250, IPv6 host table capacity: 32000, IPv6 routes (Multicast): 8000, IPv6 routes (Unicast): 32000, MAC ACL entries (egress): 2000, MAC ACL entries (ingress): 5000, MLD groups: 4000, Switched virtual interfaces (SVIs): 1000
Cantidad por empaque	1
Performance	Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Latency (25 Gbps): 1.9 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 448 Gbps, Throughput: 334 Mpps
Ports (2nd) Quantity	4
Rack Mounting Kit	Included
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	12.24 lbs
Ancho	17.4 inch
Profundidad	15.2 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
