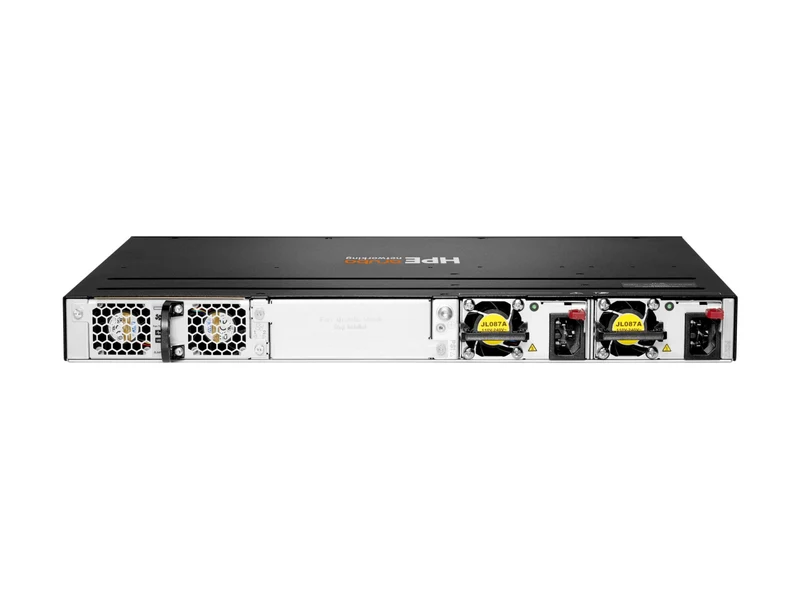

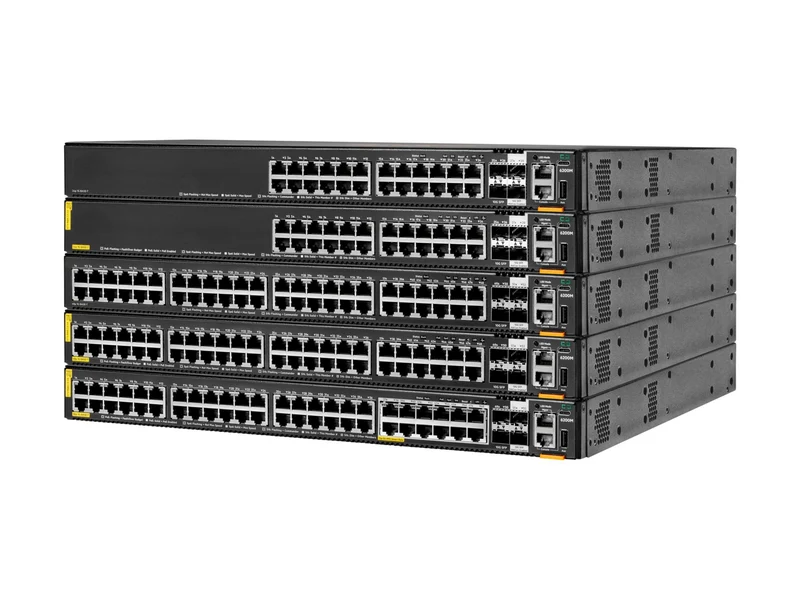

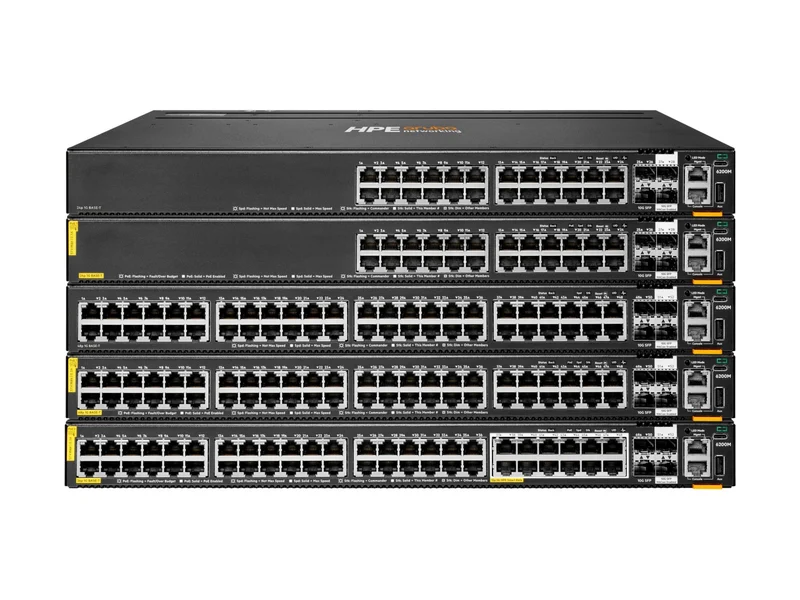

Switch de Red Aruba HPE Networking 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch

Sobre este producto

• 📊 Motor HPE Aruba Network Analytics Engine con monitoreo y solución de problemas en la capa de acceso
• 🧠 Sistema operativo totalmente programable con diseño cloud-centric para gestión moderna
• ⚡ Hasta 1440 W de PoE para alimentar cámaras de seguridad, access points e IoT
• 🚀 Arquitectura ASIC Aruba Gen7 que entrega rendimiento rápido y sin bloqueos
• 🔗 Virtual Stacking Framework (VSF) para apilar hasta 8 switches y simplificar la gestión

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba Networking CX
Modelo	6200M 36G 12SR5 Class6 PoE 4SFP+ Switch
Fabricante	Aruba
Velocidad de reloj	1.8 GHZ
Marca del procesador	ARM
Procesadores instalados	1
Flash Memory Installed	16 GB
Tecnología de memoria	DDR4 SDRAM
RAM instalada	8 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Características	ARP support, Automatic Media-Dependent Interface Crossover (MDIX), Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DiffServ support, DNS support, Egress Queue Shaping (EQS), Equal-Cost Multipath (ECMP), IGMP support, Layer 2 switching, Management Information Base (MIB), Network Timing Protocol (NTP), Quality of Service (QoS), Rapid PVST+ (RPVST+), Security slot (Kensington security lock compatible), Source-Specific Multicast (SSM), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unidirectional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support, Web GUI management portal
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9220 bytes
MAC Address Table Size	16000 entries
Manageable	Yes
Max Units In A Stack	8
PoE Budget	1440 watt
Ports	48
Power Over Ethernet (PoE)	4PPoE
Tipo de producto	Switch
Gestión remota	CLI, SNMP, SNMP 2c, SNMP 3
Routing Protocol	ECMP, OSPF, OSPFv2, OSPFv3, RIP-2
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
QSFP Slots	1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Interfaces	1 x console (USB) Type C, 1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A host, 12 x 1/2.5/5GBase-T (4PPoE) RJ-45 PoE Class 6, 36 x 10/100/1000 Base-T (4PPoE) RJ-45 PoE Class 6, 4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256
Port Quantity	36
Port Type	10/100/1000 (4PPoE)
Ports Type (2nd)	1/2.5/5GBase-T (4PPoE)
Frequency	50/60 hertz
Power Consumption Operational	74 watt
Fuentes soportadas	2
Voltaje requerido	AC 100-120/200-240 volt
Encryption	FIPS 140-2, MD5, SSL
Humidity Range Storage	15 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Operating System Required	AOS-CX
Airflow Direction	Front and side to back
Authentication Method	RADIUS, TACACS+
Capacity	IGMP groups: 1000, IPv4 ACL entries (egress): 512, IPv4 ACL entries (ingress): 1000, IPv4 host table capacity: 8000, IPv4 routes (Unicast): 2000, IPv6 ACL entries (egress): 256, IPv6 ACL entries (ingress): 1000, IPv6 host table capacity: 8000, IPv6 routes (Unicast): 2000, MAC ACL entries (egress): 512, MAC ACL entries (ingress): 1000, MLD groups: 1000, Switched virtual interfaces (SVIs): 128
Device Type	Internal power supply (not installed)
Cantidad por empaque	1
Performance	Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Packet buffer size: 8 MB, Stacking bandwidth: 40 Gbps, Switching capacity: 272 Gbps, Throughput: 130.9 Mpps
Ports (2nd) Quantity	12
Ports (3rd) Quantity	4
Accesorios incluidos	Fan tray (field replaceable, hotswappable), Rack kit (2 post)
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	13.91 lbs
Ancho	17.4 inch
Profundidad	15.2 inch
Color	Gray
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
Standby Power Consumption	59 watt
