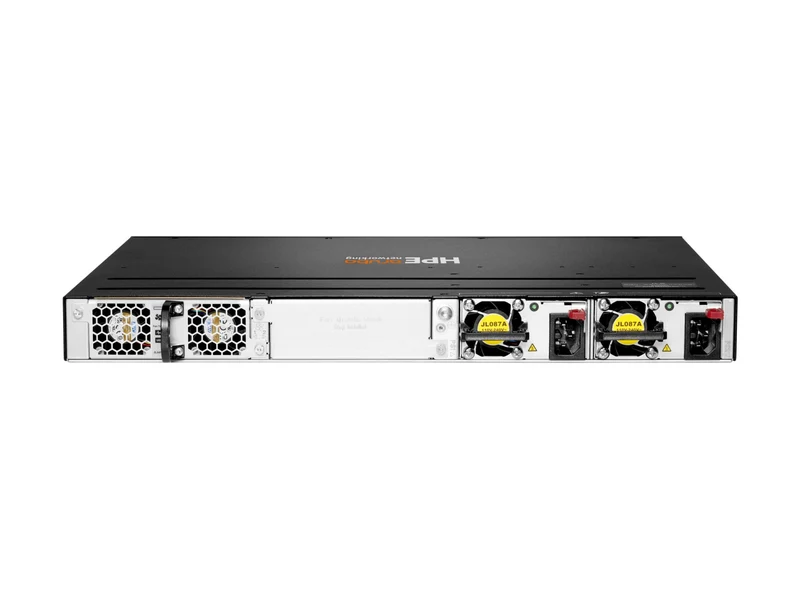

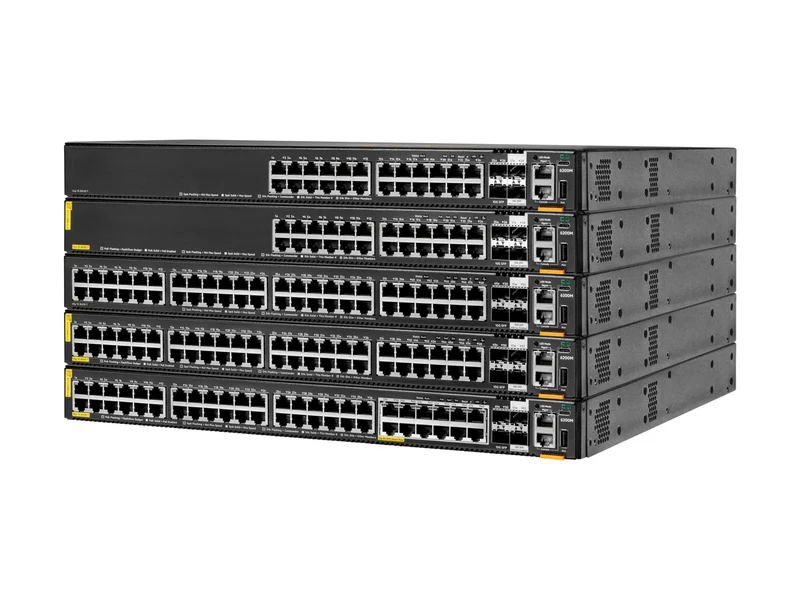

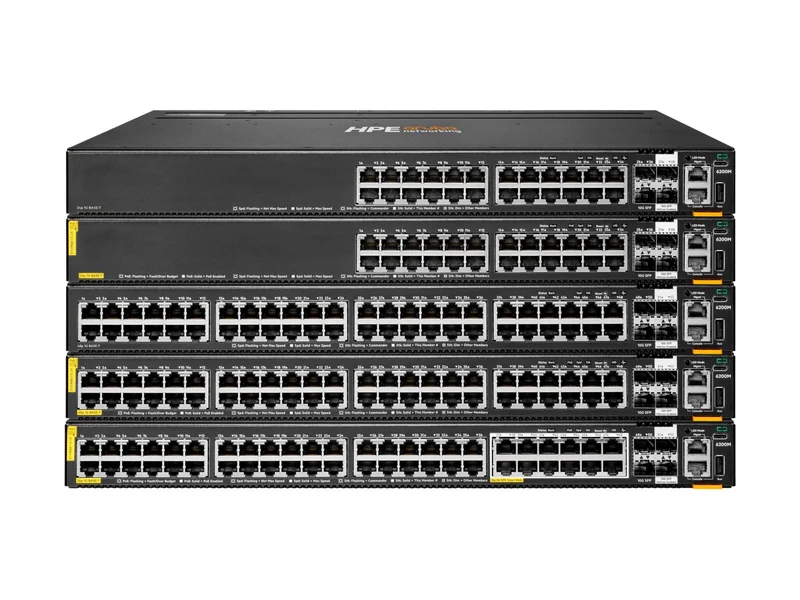

Switch de Red Aruba HPE Networking 6200M 24G Class4 PoE 4SFP+

Sobre este producto

• 🔌 24 puertos 10/100/1000 PoE+ más 4 ranuras SFP+ 1/10 Gigabit para uplink y stacking
• ⚡ Robusto presupuesto PoE+ de 740 W para desplegar IoT, cámaras y access points
• 🧠 Switch administrado (managed) Layer 3 (L3) de la serie HPE Aruba CX 6200M
• 🚀 Arquitectura ASIC Aruba Gen7 para rendimiento veloz y no bloqueante
• 🗄️ Diseño montable en rack con flujo de aire front and side-to-back

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba
Modelo	6200M 24G Class4 PoE 4SFP+
Fabricante	Aruba
Velocidad de reloj	1.8 GHZ
Marca del procesador	ARM
Procesadores instalados	1
Flash Memory Installed	16 GB
Tecnología de memoria	DDR4 SDRAM
RAM instalada	8 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.3af, IEEE 802.3at
Características	Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP support, Dynamic IPv6 lockdown, IPv6 support, LLDP support, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree Plus (PVST+), Protocol Independent Multicast (PIM), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Virtual Extensible LAN (VXLAN), VLAN support
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9220 bytes
Manageable	Yes
PoE Budget	740 watt
Ports	24
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol	ECMP, IGMP, IGMPv2, IGMPv3, MLD, MSTP, OSPF, PIM-DM, PIM-SM, RSTP, STP, VRRP
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x console RJ-45, 1 x USB Type A host, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45 PoE Class 4, 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking
Port Quantity	24
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Fuentes soportadas	2
Fuente redundante	Optional
Fuente redundante soportada	1+1 (with optional power supply)
Voltaje requerido	AC 100-120/200-240 volt
Humidity Range Storage	15 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Airflow Direction	Front and side to back
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity	IGMP groups: 1000, IPv4 ACL entries (egress): 512, IPv4 ACL entries (ingress): 1000, IPv4 host table capacity: 8000, IPv4 routes (Unicast): 2000, IPv6 ACL entries (egress): 256, IPv6 ACL entries (ingress): 1000, IPv6 host table capacity: 8000, IPv6 routes (Unicast): 2000, MAC ACL entries (egress): 512, MAC ACL entries (ingress): 1000, MLD groups: 1000, Packet buffer size: 8 MB, Switched virtual interfaces (SVIs): 128
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Stacking bandwidth: 40 Gbps, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps
Ports (2nd) Quantity	4
Rack Mounting Kit	Included
Accesorios incluidos	Rack kit (2 post)
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	12.85 lbs
Ancho	17.4 inch
Profundidad	15.2 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
