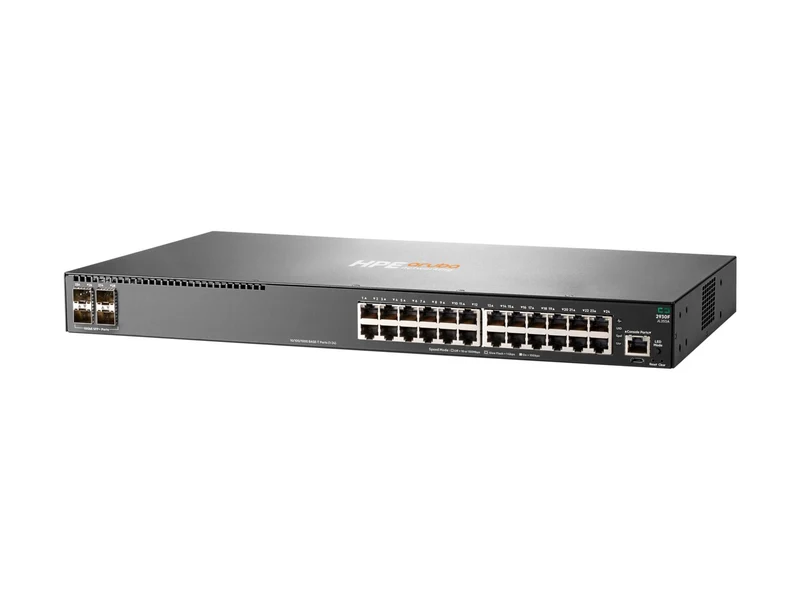

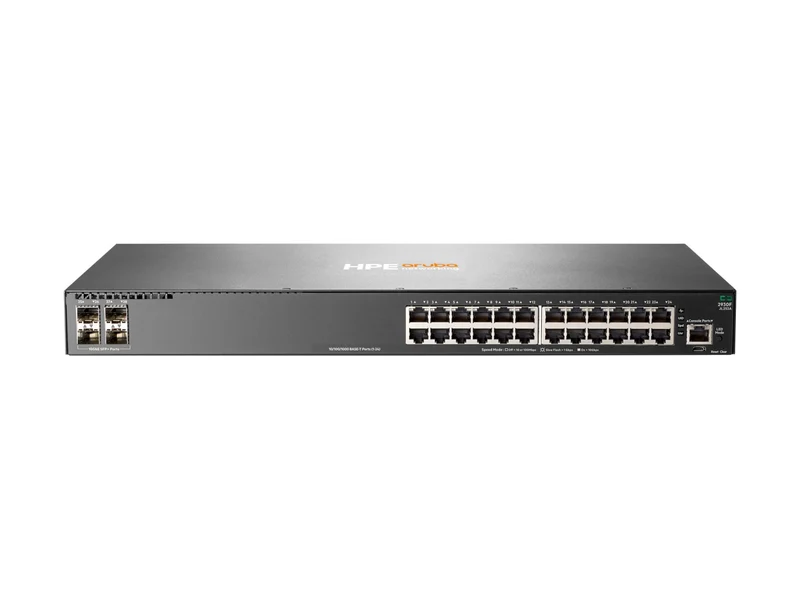

Switch de Red Aruba HPE Networking 2930F 24G 4SFP+

Sobre este producto

• 🔌 24 puertos autosensing 10/100/1000 más 4 interfaces SFP+ 1/10 GbE para despliegue veloz
• 🧠 Switch administrado Layer 3 (L3) con interfaces programables OpenFlow y REST API para monitoreo profundo
• ⚙️ Procesador ARM Cortex-A9 y 1 GB DDR3 SDRAM para rendimiento óptimo
• 🔋 Construcción 80 PLUS Silver (AC 120/230V) que consume solo 29.3 W, en formato 1 RU montable en rack
• 🛡️ Respaldado por la garantía limitada de por vida de Aruba

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba
Modelo	2930F 24G 4SFP+
Fabricante	Aruba
Velocidad de reloj	1.016 GHZ
Marca del procesador	ARM
Tipo de procesador	Cortex-A9
Procesadores instalados	1
Flash Memory Installed	4 GB
Tecnología de memoria	DDR3 SDRAM
RAM instalada	1 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Características	Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
Form Factor (Hubs & Switches)	Rack-mountable
MAC Address Table Size	32K entries
Manageable	Yes
Ports	24
Tipo de producto	Switch
Gestión remota	CLI, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
Routing Protocol	BGP, CIDR, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x expansion slot
Interfaces	1 x serial (console), 24 x 1000Base-T RJ-45, 4 x Gigabit / 10Gbit LAN SFP+
Port Quantity	24
Port Type	10/100/1000
Ports Type (2nd)	1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Consumption Operational	29.3 watt
Fuentes instaladas	1
Certificación 80 PLUS	80 PLUS Silver
Encryption	MD5, SSL
Humidity Range Storage	15 - 90% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Supported Devices	4
Authentication Method	CHAP, PAP, RADIUS, TACACS, TACACS+
Capacity	IPv4 routing table entries: 10000, IPv6 routing table entries: 5000, Jumbo frame size: 9220
País	United States
Device Type	Internal power supply
Installed Devices/Modules	0
Localization	English
Cantidad por empaque	1
Performance	Latency (1 Gbps): 3.8 µs, Latency (10 Gbps): 1.6 µs, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps
Ports (2nd) Quantity	4
Service Activation	No
Accesorios incluidos	4 bumper feet, 4 mounting ears, Cable tie, Mounting screws
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	5.31 lbs
Ancho	17.4 inch
Profundidad	7.9 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
