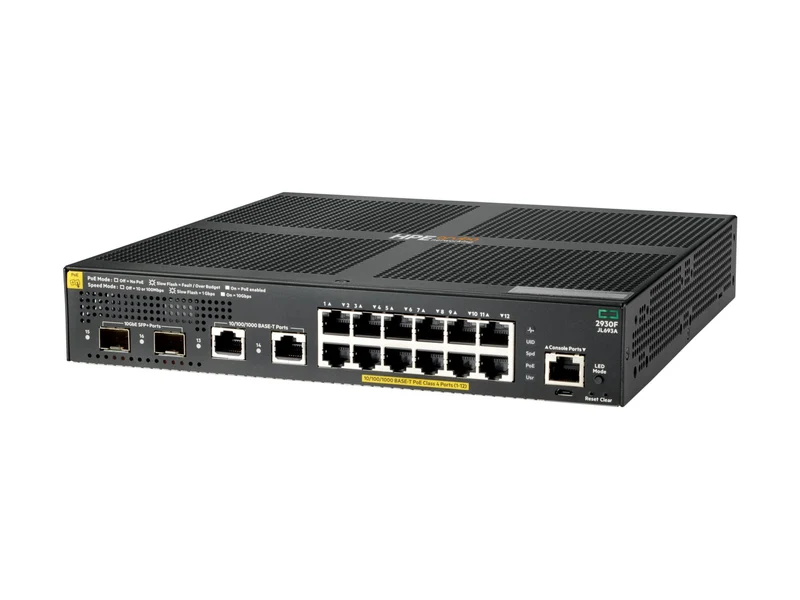

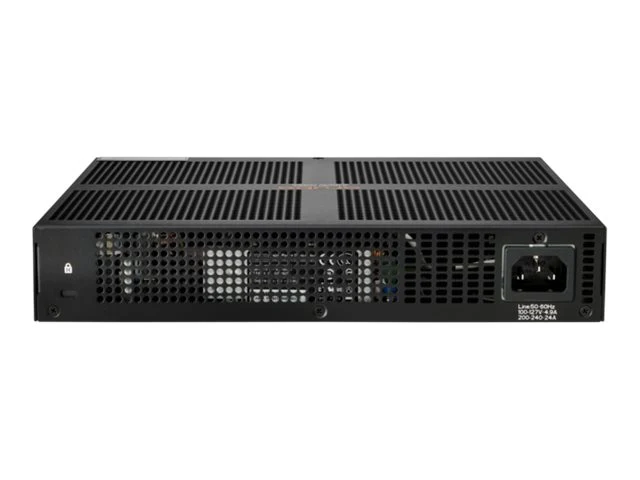

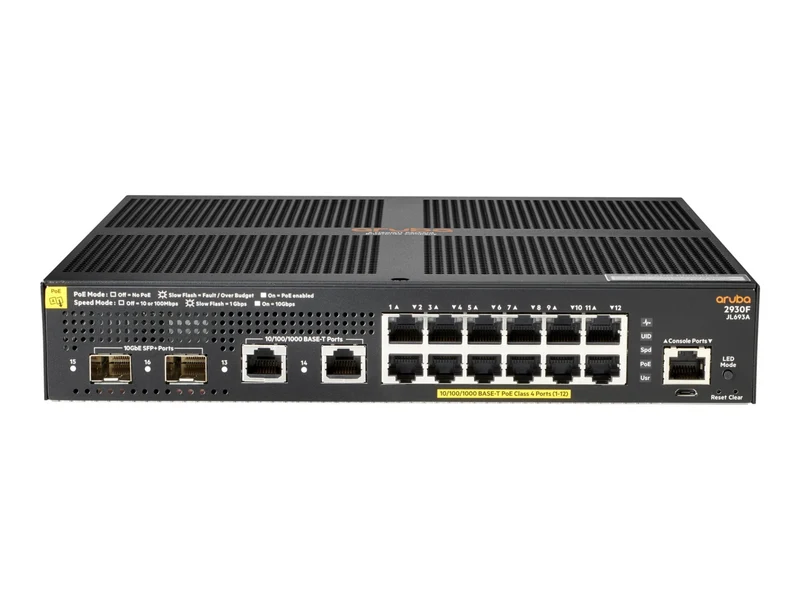

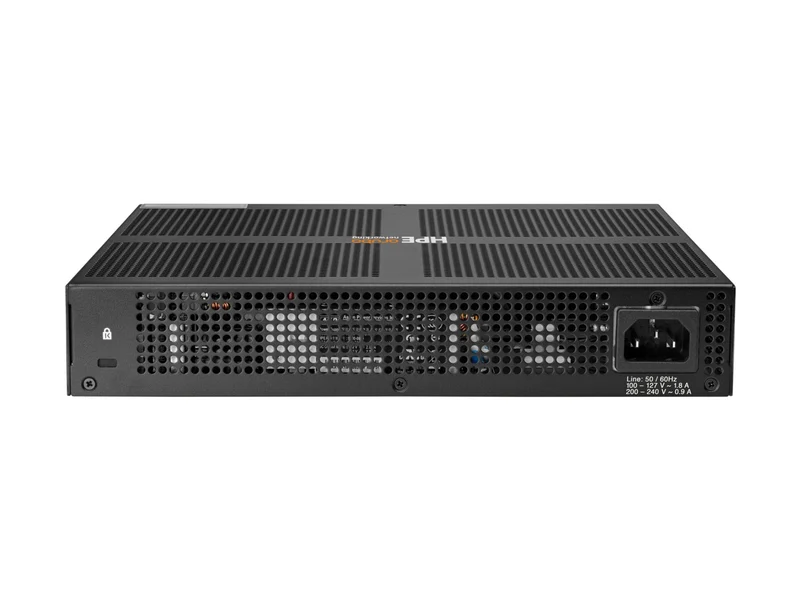

Switch de Red Aruba HPE Networking 2930F 12G PoE+ 2G/2SFP+

Sobre este producto

• 🔌 12 puertos Gigabit PoE+ más 2 puertos 1G/2 SFP+, con uplinks integrados de 1 GbE y 10 GbE.
• ⚙️ Procesador dual-core Arm Cortex A9 y 1 GB de DDR3 SDRAM para un desempeño ágil.
• ⚡ Tecnología IEEE 802.3at PoE+: hasta 30 W por puerto para cámaras y access points.
• 🔒 Switch Layer 3 administrado con Aruba ClearPass Policy Manager y Dynamic Segmentation para políticas unificadas cableadas e inalámbricas.
• 🌱 Fuente de poder certificada 80 PLUS Silver, de bajo consumo energético.
• 🗄️ Formato compacto rack-mountable que ahorra espacio.

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba
Modelo	2930F 12G PoE+ 2G/2SFP+
Fabricante	Aruba
Velocidad de reloj	1.016 GHZ
Marca del procesador	ARM
Tipo de procesador	Cortex-A9
Procesadores instalados	1
Flash Memory Installed	4 GB
Tecnología de memoria	DDR3 SDRAM
RAM instalada	1 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Características	Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP relay, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNMP support, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Syslog support, Trivial File Transfer Protocol (TFTP) support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
Form Factor (Hubs & Switches)	Rack-mountable
MAC Address Table Size	32K entries
Manageable	Yes
PoE Budget	139 watt
Ports	12
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Telnet, XRMON
Routing Protocol	CIDR, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
Stackable	Stackable
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x expansion slot
QSFP Slots	10/100/1000
Interfaces	1 x serial (console), 12 x 1000Base-T RJ-45 PoE+, 2 x 1000Base-T RJ-45, 2 x Gigabit / 10Gbit LAN SFP+
Port Quantity	12
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	1 Gigabit / 10 Gigabit SFP+ (uplink)
Frequency	50/60 hertz
Fuentes instaladas	1
Encryption	MD5, SSL
Humidity Range Storage	15 - 95% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Supported Devices	2
Authentication Method	CHAP, PAP, RADIUS, TACACS, TACACS+
Capacity	IPv4 routing table entries: 2000, IPv6 routing table entries: 1000, Jumbo frame size: 9220
País	United States
Device Type	Internal power supply
Installed Devices/Modules	0
Localization	English
Cantidad por empaque	1
Performance	Latency (1 Gbps): 3.8 µs, Latency (10 Gbps): 1.6 µs, Switching capacity: 68 Gbps, Throughput: 41.7 Mpps
Ports (2nd) Quantity	2
Ports (3rd) Quantity	2
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	4.85 lbs
Ancho	10 inch
Profundidad	10 inch
Color	Gray
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
