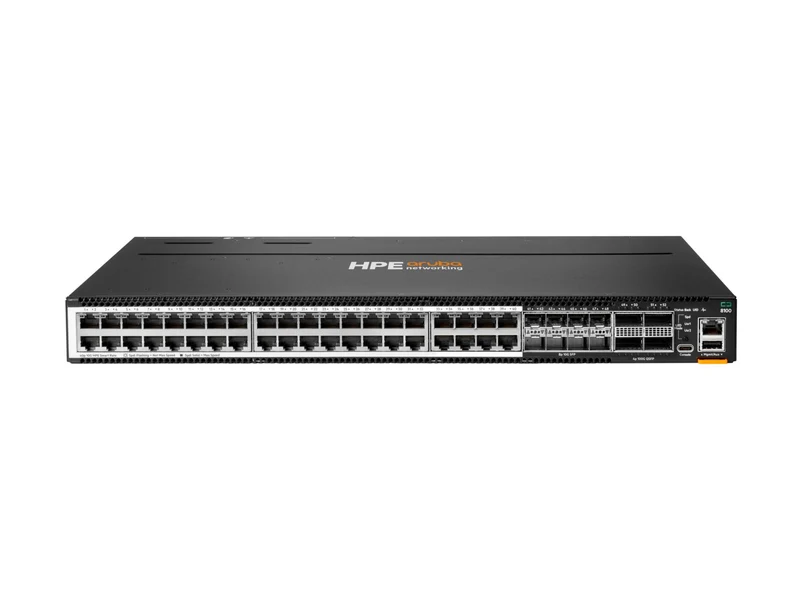

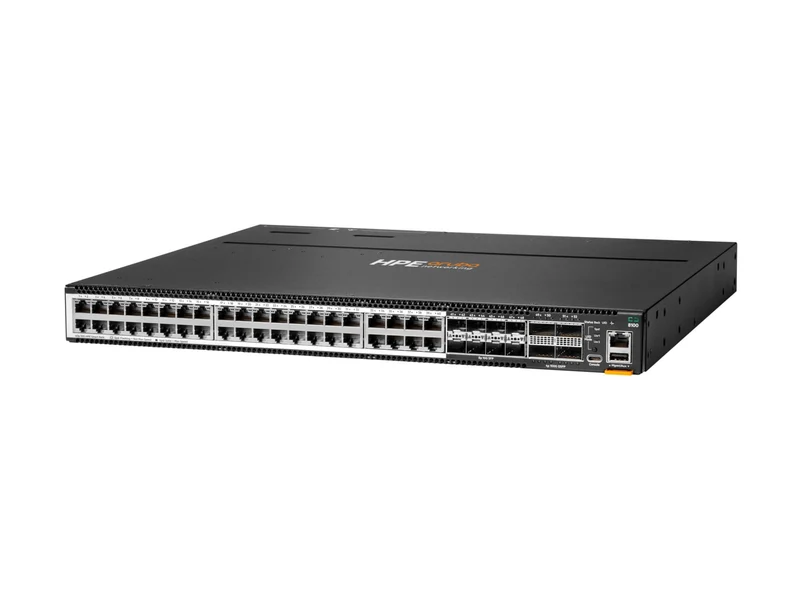

Switch de Red Aruba HPE Aruba Networking CX 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch

Sobre este producto

• 🔌 40 puertos 10GBase-T (Smart Rate 1/2.5/5/10G) + 8 puertos SFP+ + 4 puertos QSFP28 de 40/100G.
• 🚀 Capacidad de hasta 1,76 Tbps con interfaces a velocidad de línea (line-rate).
• 🏢 Enfoque flexible para el core y la capa de agregación de campus y centros de datos dinámicos.
• 🔒 Switch L3 administrado para las demandas de seguridad y escalabilidad de la era móvil, cloud e IoT.

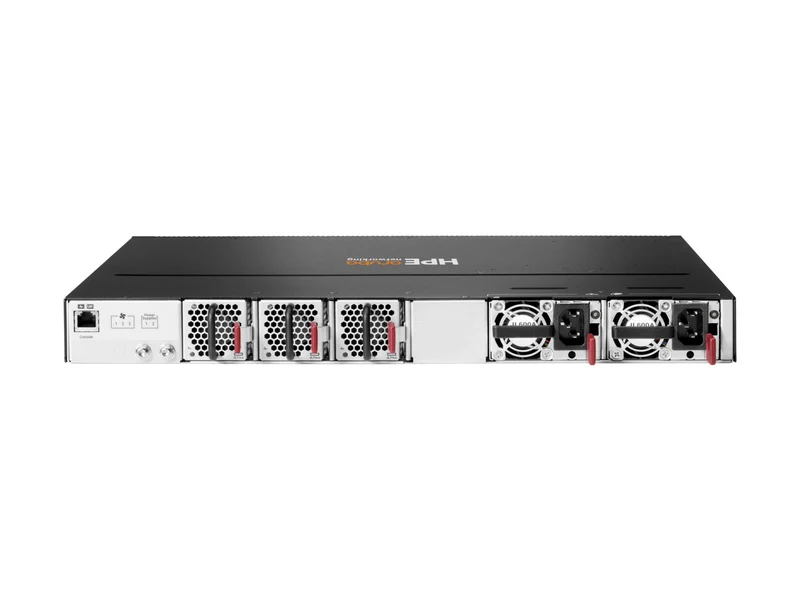

• ❄️ Flujo de aire back-to-front y formato rack-mountable.

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba Networking CX
Modelo	8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch
Fabricante	Aruba Data Center Switches
Velocidad de reloj	1.8 GHZ
Marca del procesador	ARM
Número de procesador	Cortex-A72
Procesadores instalados	1
Flash Memory Installed	32 GB
RAM instalada	16 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
Características	Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Bidirectional Forwarding Detection (BFD), Border Gateway Protocol 4 (BGP-4), Bridge protocol data unit (BPDU), Data Center Bridging (DCB), Dynamic VXLAN with BGP-EVPN, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Generic Routing Encapsulation (GRE), Layer 2 switching, Layer 3 routing, Network Timing Protocol (NTP), Open Shortest Path First (OSPF), Policy based routing, Port mirroring, Quality of Service (QoS), Rapid PVST+ (RPVST+), RDMA over Converged Ethernet (RoCE), RDMA over Converged Ethernet (RoCE) v2, sFlow, Unidirectional Link Detection (UDLD)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9000 bytes
MAC Address Table Size	147456 entries
Manageable	Yes
Ports	40
Tipo de producto	Switch
Gestión remota	MIB, SNMP, SNMP 2, SNMP 3
Routing Protocol	BGP-4, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-2
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
QSFP Slots	40 Gigabit QSFP+ / 100 Gigabit QSFP28
Interfaces	1 x serial RJ-45, 1 x USB Type A AUX, 1 x USB-C console, 4 x 40/100Gbit LAN QSFP28/QSFP+, 4 x Gigabit / 10Gbit LAN SFP+, 40 x 100/1000/2.5G/5G/10GBase-T RJ-45
Port Quantity	40
Port Type	100/1000/2.5G/5G/10GBase-T
Ports Type (2nd)	Gigabit SFP / 10 Gigabit SFP+
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Potencia	550 watt
Fuentes instaladas	2
Fuentes soportadas	2
Voltaje requerido	AC 100-127/200-240 volt
Humidity Range Storage	15 - 95% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Operating System Required	AOS-CX
Airflow Direction	Back to front airflow
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity	IGMP groups: 4000, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 16384, IPv4 routes (Multicast): 4096, IPv4 routes (Unicast): 24576, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 4096, IPv6 routes (Multicast): 4096, IPv6 routes (Unicast): 12288, Link aggregation groups: 54, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 16384, Maximum number of VLANs: 1024, MLD groups: 4000, Packet buffer size: 32 MB
País	United States
Device Type	Internal power supply
Localization	English
Cantidad por empaque	1
Performance	Switching capacity: 1.76 Tbps
Ports (2nd) Quantity	8
Ports (3rd) Quantity	4
Accesorios incluidos	2-Post Rack Kit, 3 fan trays
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	18.89 lbs
Ancho	17.4 inch
Profundidad	16 inch
Color	Black
Certificado ENERGY STAR	No
Standby Power Consumption	120 watt
