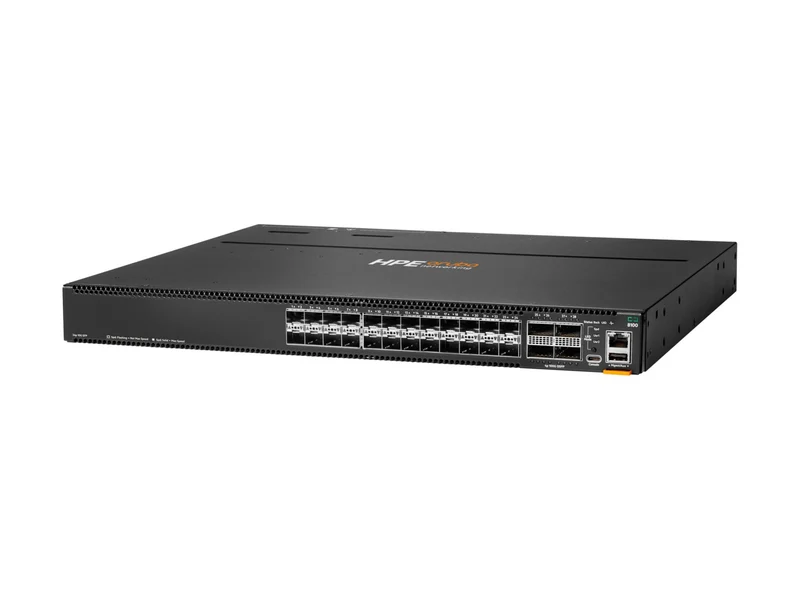

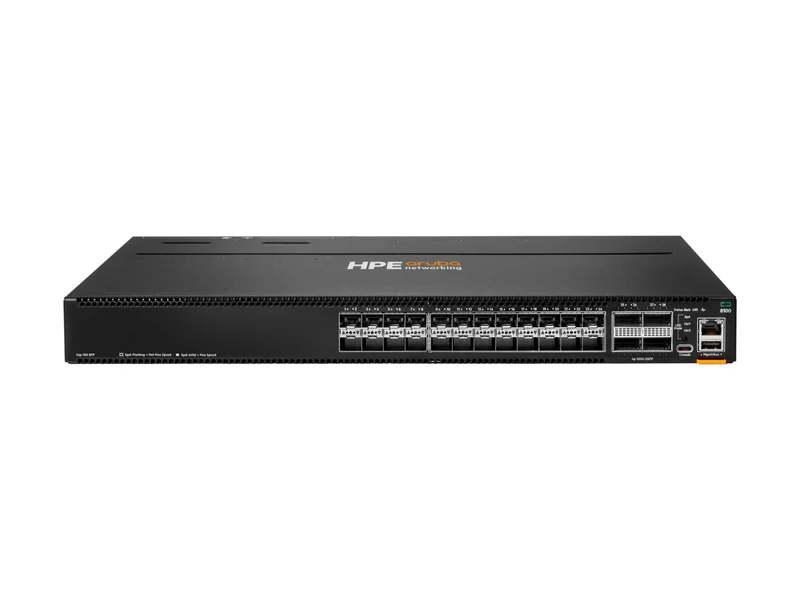

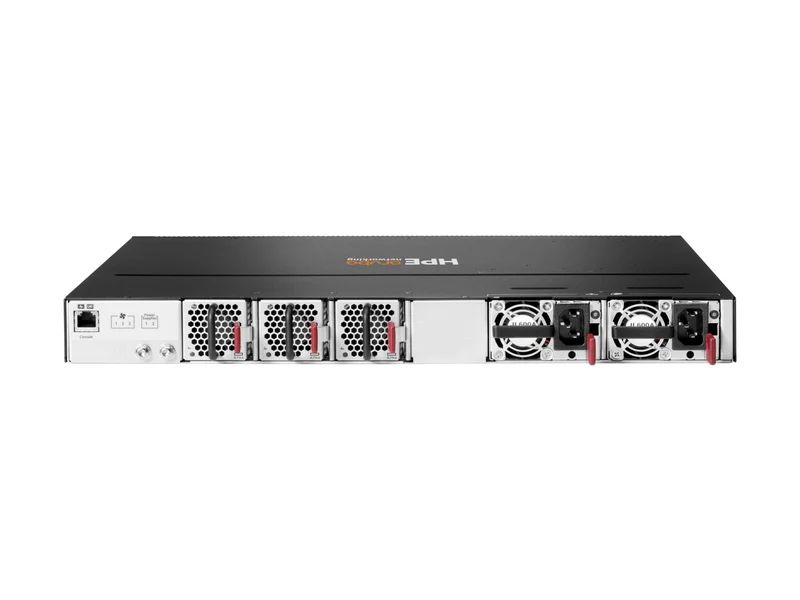

Switch de Red Aruba HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch

Sobre este producto

• 🔌 24 puertos SFP/SFP+ de 1/10 Gigabit más 4 puertos QSFP+/QSFP28 de 40/100 Gigabit.
• 🔀 Break out de 4x10 Gbps y 4x25 Gbps desde los puertos de 40/100G, en formato compacto 1U.
• 🖥️ Basado en AOS-CX con programabilidad vía REST API y scripts de Python, y tolerancia a fallos sin interrupción de servicio.
• 📊 Visibilidad y analítica de toda la red en tiempo real en cada switch.
• 🔒 Switch L3 administrado para core/agregación de campus y entornos top-of-rack (ToR).
• ❄️ Flujo de aire front-to-back y formato rack-mountable.

Característica	Detalle
Marca	Aruba
Línea de producto	HPE Aruba Networking CX
Modelo	8100 24x10G SFP+ 4x40/100G QSFP28 Switch
Fabricante	Aruba Data Center Switches
Velocidad de reloj	1.8 GHZ
Marca del procesador	ARM
Número de procesador	Cortex-A72
Procesadores instalados	1
Flash Memory Installed	32 GB
RAM instalada	16 GB
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
Características	Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Bidirectional Forwarding Detection (BFD), Border Gateway Protocol 4 (BGP-4), Bridge protocol data unit (BPDU), Data Center Bridging (DCB), Dynamic VXLAN with BGP-EVPN, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Generic Routing Encapsulation (GRE), Layer 2 switching, Layer 3 routing, Network Timing Protocol (NTP), Open Shortest Path First (OSPF), Policy based routing, Port mirroring, Quality of Service (QoS), Rapid PVST+ (RPVST+), RDMA over Converged Ethernet (RoCE), RDMA over Converged Ethernet (RoCE) v2, sFlow, Unidirectional Link Detection (UDLD)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	9000 bytes
MAC Address Table Size	147456 entries
Manageable	Yes
Ports	24
Tipo de producto	Switch
Gestión remota	MIB, SNMP, SNMP 2, SNMP 3
Routing Protocol	BGP-4, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-2
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
Interfaces	1 x serial RJ-45, 1 x USB Type A AUX, 1 x USB-C console, 24 x Gigabit / 10Gbit LAN SFP+, 4 x 40/100Gbit LAN QSFP28/QSFP+ uplink
Port Quantity	24
Port Type	1 Gigabit / 10 Gigabit SFP / SFP+
Ports Type (2nd)	40 Gigabit QSFP+ / 100 Gigabit QSFP28
Frequency	50/60 hertz
Hot-Plug	Hot-plug
Fuentes instaladas	2
Fuentes soportadas	2
Voltaje requerido	AC 100-127/200-240 volt
Humidity Range Storage	15 - 95% (non-condensing)
Temp. máx. de operación	113 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-40 degree Fahrenheit
Humedad de operación	15 - 95% (non-condensing)
Operating System Required	AOS-CX
Airflow Direction	Front to back airflow
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity	IGMP groups: 4000, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 16384, IPv4 routes (Multicast): 4096, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 4096, IPv6 routes (Multicast): 4096, Link aggregation groups: 54, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 16384, Maximum number of VLANs: 1024, MLD groups: 4000, Packet buffer size: 32 MB
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Switching capacity: 1.28 Tbps
Ports (2nd) Quantity	4
Accesorios incluidos	2-Post Rack Kit, 3 fan trays
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	17.99 lbs
Ancho	17.4 inch
Profundidad	16 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
Standby Power Consumption	120 watt
