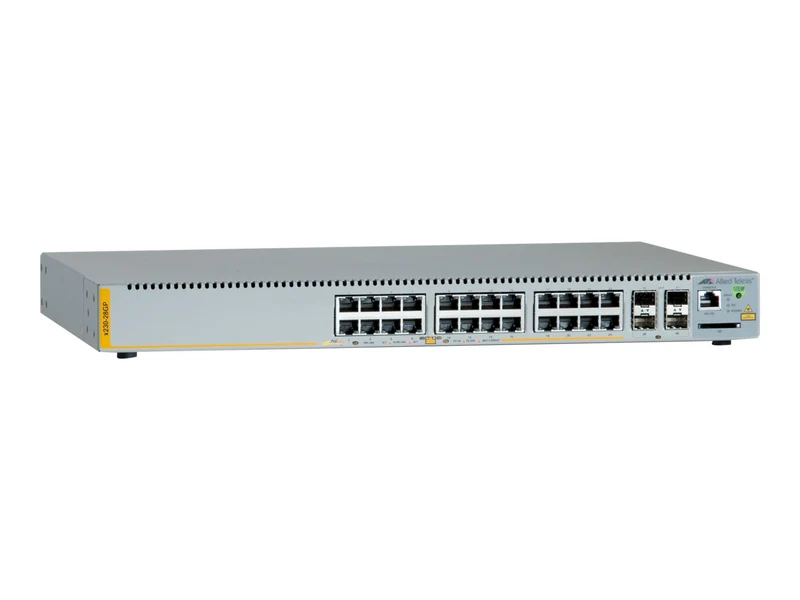

Switch de Red Allied Telesis AT x230-28GP

Sobre este producto

• 🔌 24 puertos PoE+ más 4 SFP de uplink Gigabit
• ⚡ Presupuesto PoE+ de 370 W
• 🧩 Switch Capa 2+ administrado, ideal para el borde de la red
• 📞 Alimenta teléfonos VoIP, APs inalámbricos y cámaras IP de seguridad
• 🗄️ Instalación de escritorio, rack o pared

Característica	Detalle
Marca	Allied Telesis
Línea de producto	Allied Telesis AT
Modelo	x230-28GP
Fabricante	Allied Telesis
Flash Memory Installed	64 megabyte
Tecnología de memoria	DDR SDRAM
RAM instalada	256 megabyte
Advanced Switching	Layer 2+
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Características	1.5MB packet buffer, Access Control List (ACL) support, ARP support, Bridge protocol data unit (BPDU), DHCP client, DHCP snooping, DiffServ support, Digital Diagnostics Monitoring Interface (DDMI), Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Enviromental monitoring, Ethernet Protection Switched Ring (EPSRing), Flow control, Full duplex capability, IGMP snooping, IPv6 support, Loop prevention, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Network Access Control (NAC), Packet storm protection, Per-VLAN Spanning Tree Plus (PVST+), Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, sFlow, SNMP trap, SNTP support, Spanning Tree Protocol (STP) support, Storm Control, STP Root Guard, Strict Priority Queuing (SPQ), Syslog support, Tagged VLAN, Trivial File Transfer Protocol (TFTP) support, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches)	Desktop, Rack-mountable, Wall-mountable
Jumbo Frame Support	10KB
MAC Address Table Size	16K entries
Manageable	Yes
PoE Budget	370 watt
Ports	28
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Expansion Slots	1 (total) / 1 (free) x SD Memory Card
Interfaces	1 x console RJ-45 management, 24 x 1000Base-T RJ-45 12 ports (PoE+) / 24 ports (PoE), 4 x SFP uplink
Port Quantity	24
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	SFP (mini-GBIC)
Frequency	50/60 hertz
Encryption	DES, MD5, PEAP, RSA, SHA-1, SSL 2.0, SSL 3.0, TLS 1.0, Triple DES, TTLS
Humidity Range Storage	5 - 95% (non-condensing)
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-13 degree Fahrenheit
Humedad de operación	5 - 90% (non-condensing)
Authentication Method	Extensible Authentication Protocol (EAP), RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding performance: 41.7 Mpps, Switching capacity: 56 Gbps
Ports (2nd) Quantity	4
Cables	1 x console cable - 6.6 ft
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	10.36 lbs
Ancho	17.3 inch
Profundidad	11.4 inch
Color	Gray
Certificado ENERGY STAR	No
