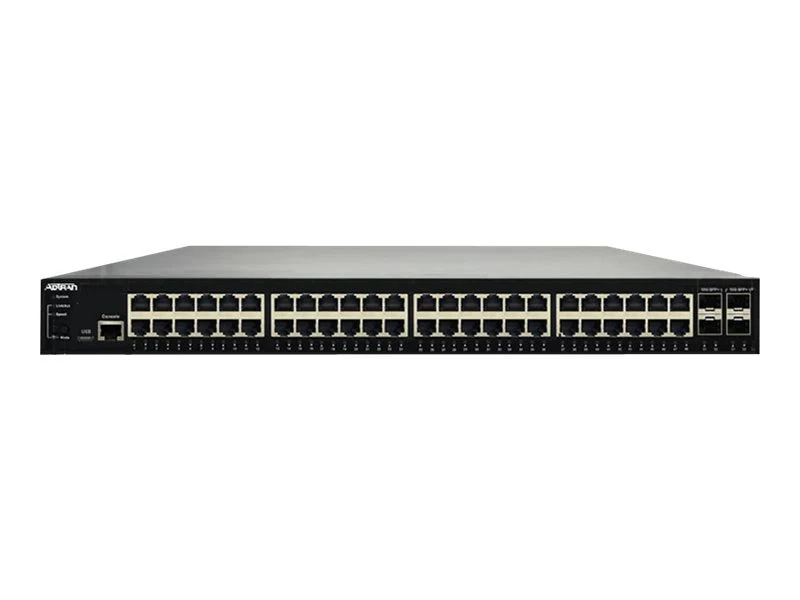

Switch de Red ADTRAN NetVanta 1560-48

Sobre este producto

• 🔌 48 puertos 10/100/1000 PoE+ más 4 puertos 10 Gigabit SFP+
• ⚡ Presupuesto PoE+ de 370 W en switch Gigabit totalmente gestionado
• 🔀 Switching multicapa Layer 3 (L3) con alto ancho de banda
• 📞 Funciones voice-aware ideales para VoIP, IoT y aplicaciones en la nube
• 🗄️ Formato Enterprise montable en rack, escalable de pequeña empresa a red corporativa

Característica	Detalle
Marca	ADTRAN
Línea de producto	ADTRAN NetVanta
Modelo	1560-48
Fabricante	ADTRAN
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, UPnP
Características	802.1x authentication, Access Control List (ACL) support, ARP inspection, Authentication, Authorization and Accounting (AAA), Cable Diagnostics Function, DHCP relay, DHCP snooping, DiffServ Code Point (DSCP) support, DoS attack prevention, Dynamic VLAN Support (GVRP), Flow control, Flow mirroring, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, Layer 2 isolation, LLDP support, LLDP-MED, Loop prevention, MAC based VLAN, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Port Security, Port-based VLAN, Private VLAN, Protocol-based VLANs support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Schedule PoE, sFlow, Spanning Tree Protocol (STP) support, Strict Priority (SP), VLAN management, VLAN support, VLAN trunking, Voice VLAN, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)	Rack-mountable
Jumbo Frame Support	10240 bytes
MAC Address Table Size	32000 entries
Manageable	Yes
PoE Budget	370 watt
Ports	48
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, JSON-RPC, NTP, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH
Routing Protocol	IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Status Indicators	LAN, Link/activity, PoE, Status
Subcategory	Network hubs and switches
Switching Type	10 Gigabit Ethernet
Interfaces	1 x console RJ-45, 1 x management (micro-USB), 4 x 10Gbit LAN SFP+, 48 x 10/100/1000 Base-T RJ-45 PoE+
Port Quantity	48
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	10 Gigabit SFP+
Frequency	50/60 hertz
Power Consumption Operational	900 watt
Encryption	SSL
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-4 degree Fahrenheit
Humedad de operación	0 - 95% (non-condensing)
Authentication Method	RADIUS, Secure Shell (SSH), TACACS+
Capacity	ARP entries: 1000, IPv4 routes (static): 128, IPv6 routes (static): 128, Simultaneous VLANs: 4095
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding bandwidth: 176 Gbps
Ports (2nd) Quantity	4
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	12.35 lbs
Ancho	17.4 inch
Profundidad	14.8 inch
Color	Black
Certificado ENERGY STAR	No
