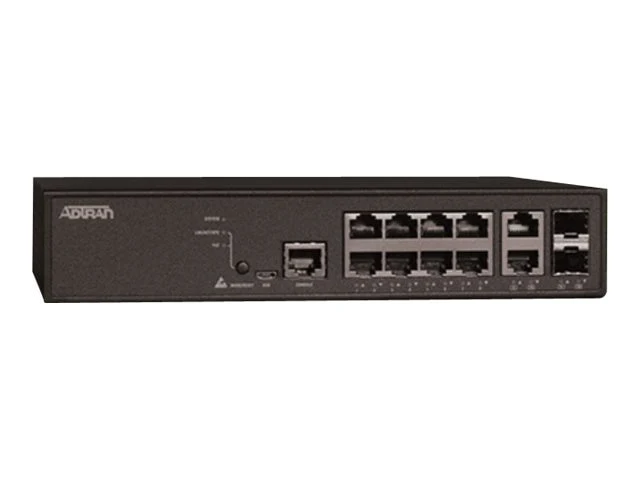

Switch de Red ADTRAN NetVanta 1560-08, 17101561PF2

Sobre este producto

• 🔌 10 puertos Gigabit PoE+ más 2 puertos SFP Gigabit
• ⚡ Presupuesto PoE+ de 65 W ideal para IoT, aplicaciones en la nube y VoIP
• 🛠️ Switch multicapa Layer 3 totalmente administrado de clase empresarial
• 🎙️ Funciones voice-aware y alto ancho de banda escalable
• 🖥️ Montaje flexible en escritorio, rack o pared

Característica	Detalle
Marca	ADTRAN
Línea de producto	ADTRAN NetVanta
Modelo	1560-08
Fabricante	ADTRAN
Advanced Switching	Layer 3
Estándares	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, UPnP
Características	802.1x authentication, Access Control List (ACL) support, ARP inspection, Authentication, Authorization and Accounting (AAA), Cable Diagnostics Function, DHCP relay, DHCP snooping, DiffServ Code Point (DSCP) support, DoS attack prevention, Dynamic VLAN Support (GVRP), Flow control, Flow mirroring, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, Layer 2 isolation, LLDP support, LLDP-MED, Loop prevention, MAC based VLAN, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Port Security, Port-based VLAN, Private VLAN, Protocol-based VLANs support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Schedule PoE, sFlow, Spanning Tree Protocol (STP) support, Strict Priority (SP), VLAN management, VLAN support, VLAN trunking, Voice VLAN, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR)
Form Factor (Hubs & Switches)	Desktop, Rack-mountable, Wall-mountable
Jumbo Frame Support	10240 bytes
MAC Address Table Size	32000 entries
Manageable	Yes
PoE Budget	65 watt
Ports	12
Power Over Ethernet (PoE)	PoE+
Tipo de producto	Switch
Gestión remota	CLI, DHCP, HTTP, JSON-RPC, NTP, RMON, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol	IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Status Indicators	Link/activity, Status
Subcategory	Network hubs and switches
Switching Type	Gigabit Ethernet
Interfaces	1 x console RJ-45, 1 x management (micro-USB), 10 x 10/100/1000 Base-T RJ-45 30 W, 2 x Gigabit LAN SFP
Port Quantity	10
Port Type	10/100/1000 (PoE+)
Ports Type (2nd)	Gigabit SFP
Frequency	50/60 hertz
Power Consumption Operational	170 watt
Temp. máx. de operación	122 degree Fahrenheit
Max Storage Temperature	158 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Min Storage Temperature	-4 degree Fahrenheit
Humedad de operación	0 - 95% (non-condensing)
Authentication Method	RADIUS, Secure Shell (SSH), TACACS+
Capacity	ARP entries: 1000, Static routes: 128, VLANs supported: 4095
Device Type	Internal power supply
Cantidad por empaque	1
Performance	Forwarding bandwidth: 176 Gbps
Ports (2nd) Quantity	2
Service Activation	No
Alto	1.7 inch
Altura (unidades de rack)	1
Weight	4.63 lbs
Ancho	9.5 inch
Profundidad	8.7 inch
Color	Black
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
