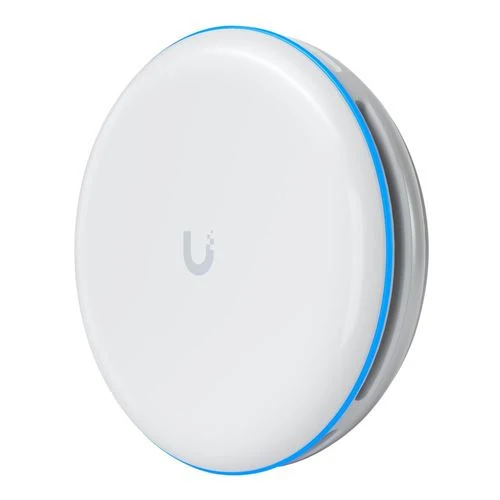

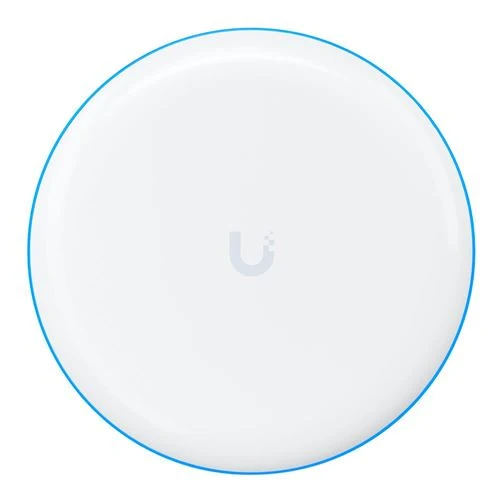

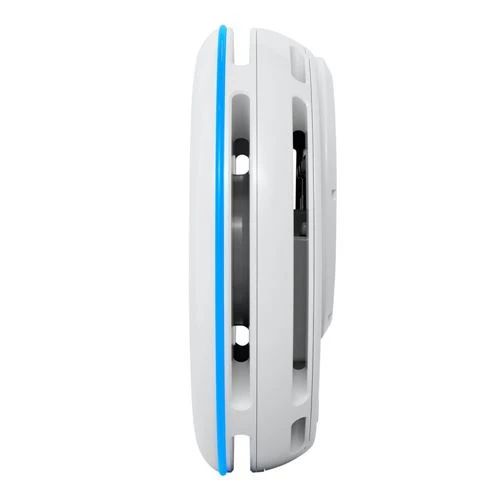

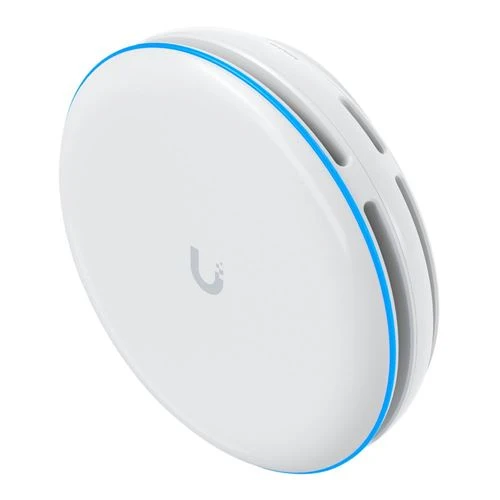

Enlace Punto a Punto Ubiquiti UniFi Building Bridge XG 60GHz 6Gbps
704,42 €1 399,36 €49% OFF
Détails du produit
Sobre este producto
- 📡 Enlace inalambrico edificio a edificio de hasta 1,640 ft (500 m) linea de vista
- 🚀 Radio 60 GHz con throughput de hasta 6 Gbps para backhaul de alta capacidad
- 🔄 Radio de respaldo 5 GHz (AC6867) para redundancia del enlace
- 📶 Antenas internas: 21 dBi (60 GHz) y 14 dBi (5 GHz)

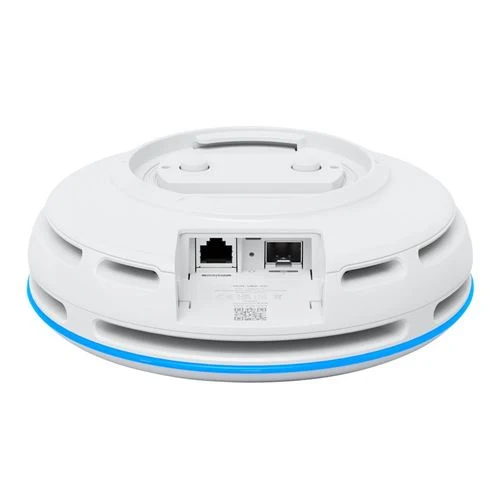

- 🔌 Puerto RJ45 Gigabit PoE++ y SFP+ 1/10G para uplink
- ☂️ Carcasa resistente a la intemperie IPX6, montaje en pared o poste

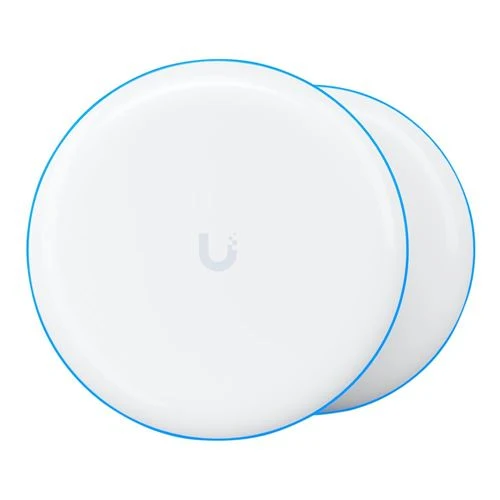

- 📦 Kit de 2 unidades UBB-XG con adaptadores PoE y herrajes incluidos
| Característica | Detalles |
|---|---|
| Tipo de producto | WiFi |
| Marca | Ubiquiti |
| Modelo | UBB-XG-US |
| UPC | 810010076083 |
| Tipo | WiFi |
| Serie | Bridging |
| ESD/EMP Protection | No |
| Certifications | CE | FCC | IC | NDAA Compliant | Terragraph |
| Operating Temperature | -40 to 131°F (-40 to 55°C) |
| Operating Humidity | 5% to 95% noncondensing |
| Indoor/Outdoor | Indoor | Outdoor |
| Factor de forma | Mountable |

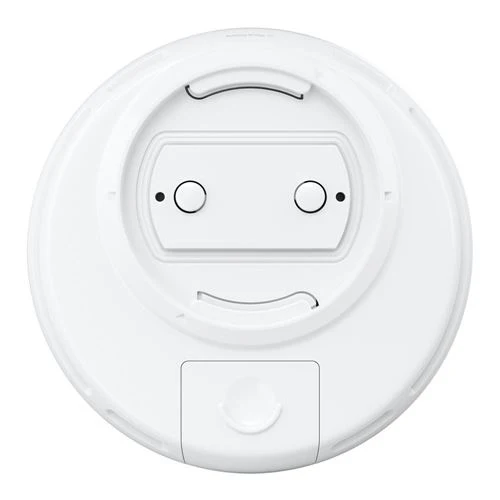

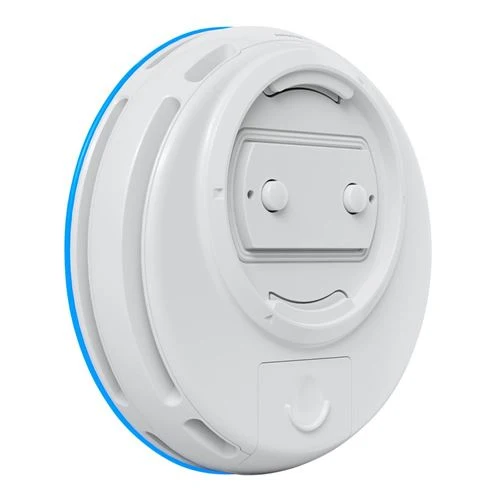

| Mount Location | Wall | Pole |
| Antenna | Internal |
| Antenna Gain | 2.4 GHz: 2 dBi (BLE), 5 GHz: 14 dBi, 60 GHz: 21 dBi |
| Radio Technology | 5 GHz: 2 x 2 (DL MU-MIMO) |
| Modulation Technology | OFDM, up to 256-QAM |
| Frequency | 5 GHz, 60 GHz |
| MIMO | 2 x 2 MIMO |
| Spatial Streams | 2 |
| Max. TX Power | 5 GHz: 23 dBm, 60 GHz: 16 dBm |
| Buttons | Reset Button |
| Features | 5 GHz Backup Radio | Bluetooth Management |
| Status Indicators | Status/System/Calibration |
| Network Ports & Connectors | 1 x RJ-45 Gigabit PoE++ LAN Port | 1 x 1/10 Gigabit SFP+ Port |
| Maximum Range Outdoors | 1,640 ft (500 m) |
| Channel Bandwidth (MHz) | 60 GHz: 1,080/2,160; 5 GHz: 20/40/80 |
| Wireless Technology | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | 802.11b | 802.11g | 802.11a |
| Wireless Standard | AC6867 |
| WiFi 5 (802.11ac) Data Transfer Rate | Up to 867 Mbps |
| WiFi 4 (802.11n) Data Transfer Rate | Up to 300 Mbps |
| Wireless G Data Transfer Rate | Up to 54 Mbps |
| Wireless B Data Transfer Rate | Up to 11 Mbps |
| Wireless A Data Transfer Rate | Up to 54 Mbps |
| Device Management | Web-Based Management, App |
| Remote Management Protocol | Bluetooth |
| Half/Full Duplex Network Data Transfer Rate | 10/100/1000 Mbps RJ45; 1/10 Gbps SFP+ |
| Operating Mode | Bridge | PtP |
| Encryption | WPA2 AES |
| Security | WPA2 AES |
| Other Supported Operating Systems | UniFi Console, Official UniFi Hosting, Self-Hosted UniFi Network Server |
| Consumo de energía | 29 Watts |
| PoE | PoE++ |
| PoE Standard | IEEE 802.3bt (PoE++) |
| Fuente de poder | Power Over Ethernet |
| What's in the Box | 2 x UBB-XG Units, 2 x PoE Power Adapters,; 2 x Power Cables, Mounting Hardware |
| Enclosure Material | UV-Resistant Polycarbonate, Aluminum Alloy |
| Ancho | 7.60 in. (191.80 mm) |
| Profundidad | 2.30 in. (59.00 mm) |
| Alto | 7.60 in. (191.80 mm) |
| Peso | 3.8 lb. (1.7 kg) |
