Vendeur: Taoglas

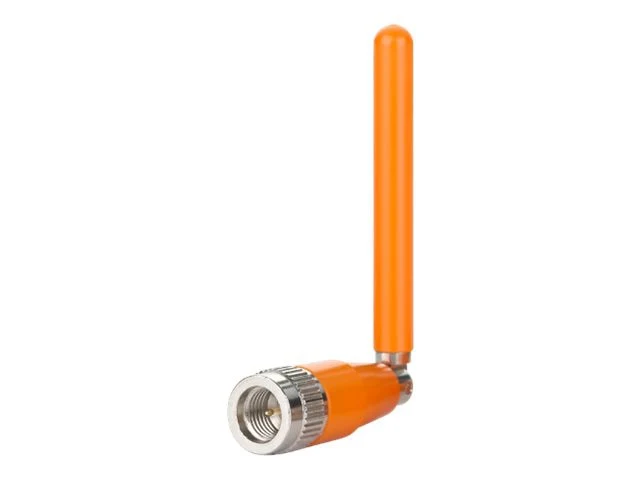

Antena Taoglas TS.07
9,54 €15,95 €40% OFF
Détails du produit
Sobre este producto
- 🌐 Antena Taoglas TS.07: para extensión de cobertura inalámbrica.
- ✅ The compact TS.07, with hinged rotatable SMA connector, is an impressively high efficiency monopole antenna, providing coverage among GPS, GLONASS, GAILEO, and BeiDou frequencies
- ✅ This monopole antenna performs efficiently from 1561 MHz to 1610 MHz, covering GPS, GLONASS, GAILEO, and BeiDou frequencies
- ✅ When connected to the device ground-plane, the TS.07 is capable of achieving more than 70% efficiency
- ✅ The TS.07, as all monopole antennas, works best when connected directly to the ground-plane of the device main-board or the device's metal enclosure
- ✅ As with all passive antennas, using a coax with more than -1.5 dB of loss will result in reduced receiver sensitivity
- ✅ Taoglas recommends connecting the TS.07 directly to the device ground-plane for best performance
| Característica | Detalle |
|---|---|
| Marca | Taoglas |
| Línea de producto | Taoglas |
| Modelo | TS.07 |
| Fabricante | Taoglas USA Inc |
| Impedance | 50 ohm |
| Type | 1 x antenna - SMA (male) |
| Antenna Compatibility | BeiDou, GALILEO, GLONASS, GPS |
| Antenna Features | Linear polarization |
| Antenna Form Type | Monopole |
| Antenna Type | Antenna |
| Directivity | Omni-directional |
| Frequency Range | 1561 MHz, 1575.42 MHz, 1602 MHz |
| Max Power | 10 watt |
| Signaling Type | Navigation |
| Cantidad por empaque | 1 |
| Service Activation | No |
| Alto | 2.8 inch |
| Weight | 0.21 ounce |
| Ancho | 0.4 inch |
| Profundidad | 0.4 inch |
| Materials | Brass |
| Color | Orange |
